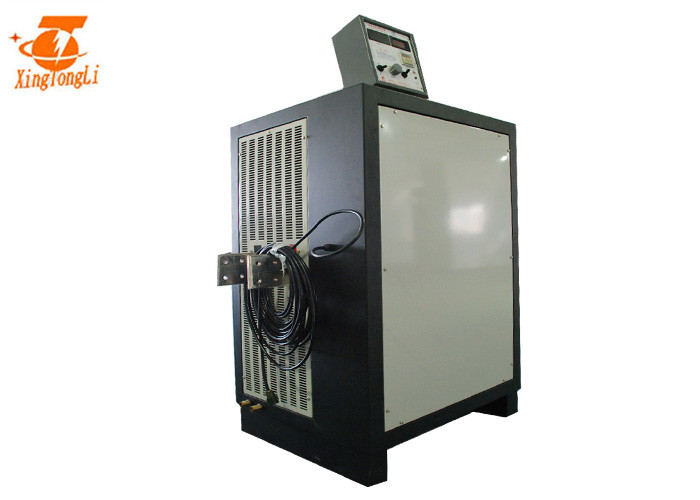

12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise
  • 12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise
  • 12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise
  • 12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise

12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD12-7000CVC
Product Details
Product Name:
12Volt 7000Amp High Power Igbt Water Cooling Plating Rectiifer
Input Voltage:
380V
Phase:
3 Phase
Output Voltage:
0~12v Adjustable
Output Current:
DC 0~0700A Adjustable
Cooling:
Water Cooling
Size:
860*770*1280mm
Weight:
240kg
Control:
Remote Control
High Light:

electrolytic rectifier

,

electrolysis machine power supply

,

7000A Igbt Plating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
Negotiable
Packaging Details
Single wooden case packing size: 860*770*1280mm Weight:250kg
Delivery Time
7~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 units /month
Product Description





12Volt 7000Amp high power igbt water cooling plating rectiifer​ main technical characteristics:



Switch mode power supply working principle:

Principle of Switch mode power supply control regulator for voltage stabilization:

Switch knob turn on and off repeatedly to a certain time interval, when the switch is turned on, the input power supply through switch knob and filter circuit to supply loading, during the entire switch turn on duration, the power supply provided energy to loading;
When switch disconnected, input power supply interrupted to provide energy. Be seen, the input power supply to provide energy for load is intermittent, in order to load can be obtain a continuous energy power supply, switching mode power supply must have a energy storage device, when the switch turns on, there is a part of energy stored in the switch, when disconnect, the stored energy will release to load. Inductance used to store energy, when the switch is off, stored energy in the inductance through the diode release to the load, make sure that the load to obtain a continuous and stable energy, because the diode enable load to get continuous current, so called continuous current diodes. This is the way switch mode power supply working.

12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise 0

12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise 1

12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise 2








Specification

SPECIFICATIONS FOR GKD12-7000CVC
Input AC 220V±10% 3phase 50/60Hz
Output DC Volt 0~12V Adjustable
Current 0~7000A Adjustable
Power 84KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 250kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 1401*900*1913mm Cooling way Air cooling

Water cooling plating rectifier.

Input voltage: 3 phase 380V.

Output current: 0-10000A adjustable.

Output voltage: 0-12V adjustable.

We believe good quality will get good marmet, use high quality material and solid material.

12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise 3

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
12 Volt 7000Amp High Power Igbt Plating Rectifier Water Cooling Low Noise 4

Other advantages


1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.
