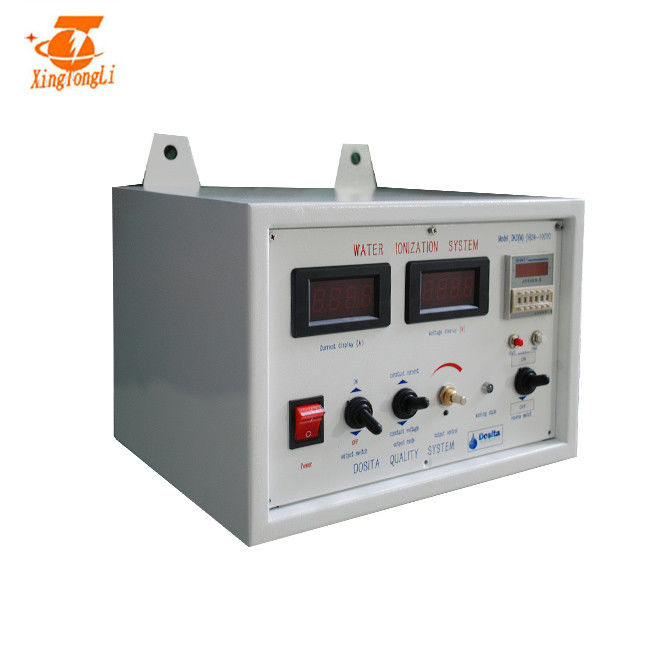

7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching
  • 7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching
  • 7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching
  • 7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching

7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD7-35CVC
Product Details
Product Name:
7Volte 35Amp High Frequency Switching Water Ionization System Power Supply
Input Voltage:
Ac 220V Or 110V
Phase:
3 Phase
Output Voltage:
DC 0~7v Adjustable
Output Current:
DC 0~35A Adjustable
Work Mode:
CC CV
Size:
270*220*88mm
Weight:
12kg
Color:
White And Blue
High Light:

electrolytic rectifier

,

electrolysis machine power supply

,

7Volt 35Amp Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
500$~900$
Packaging Details
Single wooden case packing size:270*220*88mm Weight:12kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150units/month
Product Description



7Volte 35Amp high frequency switching water ionization system power supply Specification and parameter





Description of high frequency electrolytic power:

Water treatment power supply electrolysis of water to produce hydrogen and oxygen. The electrolysis of water basically is under external electric field to split water into H2 and O2. DC power supply electrolysis is a very powerful means to promote redox reactions, many other redox difficult to react, can be via DC power supply electrolysis to achieve



The main control board adopts high anti-interference high-power digital circuit trigger system, which has the control anti-interference ability. It has the advantages of high control precision, good stability and reliable operation.

6. The box body adopts cutting magnetic chain to reduce eddy current consumption, and the box body adopts integral spraying.

Control method: comprehensive simulation control and computer control.



input voltage 220v 1 phase 50/60hz
Output voltage 0~7v adjustable
Voltage stability 0~35a adjustable
Current stability ≤1%
Ripple factor 1%-2%
efficiency ≥90%
weight 12kg
dimension 270*220*88mm
Stabilization mode Current stabilization/Voltage stabilization (Switchable easily)
Adjustment range Voltage/Current from 0-100% continuously adjustable within rated range
Cooling system Air cooling
Control method local control/remote control/plc control
Display contents Voltage meter/Current meter/Working/Over temp/Error,
Protection method Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
Operating temperature -20-50℃
Ambient temperature -30-65℃
Ambient humidity ≤90%

7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching 07 Volt 35Amp Water Ionization System Power Supply High Frequency Switching 1

7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching 2







Application of high frequency electrolytic power supply:

Mainly used in non-ferrous metal electrolysis: aluminum, magnesium, zinc, lead, copper, manganese and manganese dioxide; gold, silver and other metals smelting; neodymium iron boron rare earth smelting; hard alloy, diamond smelting; salt water, potassium electrolysis to produce caustic soda, potash, sodium system; fire electrical heating materials, and other types of high-power DC power supply.



7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching 3

7 Volt 35Amp Water Ionization System Power Supply High Frequency Switching 4

1, Placing rectifier and keep the body stability; ensure good ventilation.
2, Checking anodizing rectifier out cover if loosing.
3, Connecting shell to ground to prevent static electricity.
4, Conecting the AC input wire
5, Connecting the DC output copper bars
6, Connecting the rectifier remote control box,if local control ,skip this step
7, Turn on air switch, then the fan starts to rotate and the power indicator light.
8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.
9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.
10, Disconnect the air switch, turn off the rectifier
