Cabinet Type AC / DC Polarity Reverse Electroplating Rectifiers

Place of Origin China
Brand Name xingtongli
Certification ISO CE
Model Number GKDH15-5000CVC
Minimum Order Quantity 1 unit
Price Negotiable
Packaging Details Single wooden case packing size:750*560*780mm Weight:114kg
Delivery Time 10~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 150units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

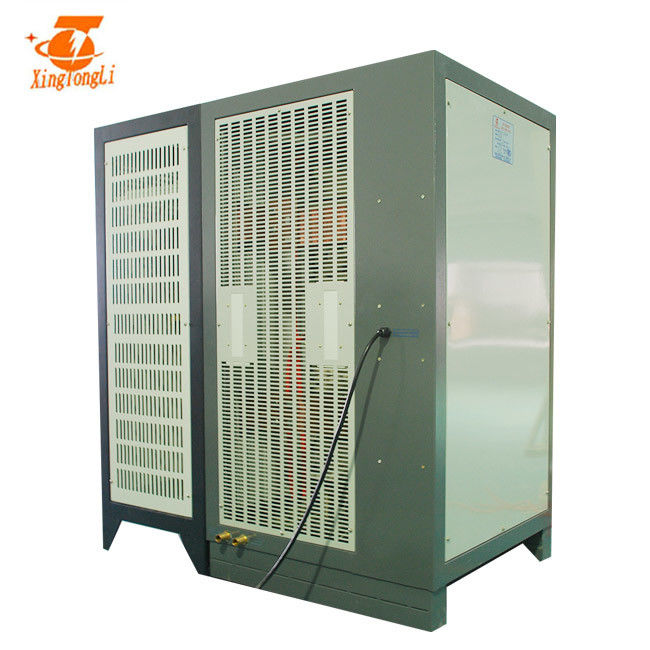

Product Name Cabinet Type AC/DC Electroplating Rectifiers 15V 5000A With Polarity Reverse Input Voltage AC 415V
Phase 3 Phase Output Voltage DC 0~15v Adjustable
Output Current DC 0~5000A Adjustable Work Mode CC CV
Size 1020*1000*1270mm Weight 280KG
Color Grey
High Light

15V 5000A plating rectifier


pulse rectifier electroplating


DC Polarity Reverse Electroplating Rectifiers

Leave a Message
Product Description

Product Usage
Suitable for sewage treatment production line.

The core components of the commutation are made of special superconducting materials, the control part adopts intelligent time control, the power is turned off during switching, and it has protection functions such as undervoltage, phase loss, overcurrent and short circuit.
According to customer needs, it can expand standard control interfaces such as 4-20mA, 0-10V, 0-5V, etc. It can also meet the requirements of RS485 communication interface with the host computer, RS232 and other control systems.

Technical Parameters
Input voltage: three-phase AC380V±15%
Output current: 500-40000A optional
Output voltage: 12V 18V 36V optional
Output current: 0-limit current value (steplessly adjustable)
Output voltage: 0-limit voltage value (steplessly adjustable)
Control mode: PMW pulse width control
Cooling method: forced air cooling
Control accuracy: rated value ≤1%
Operation mode: operation under different states of voltage stabilization/steady current


Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~500V Adjustable
Current 0~40A Adjustable
Power 20KW
Efficiency >85%
output Frequency 40KHz fixed
reverse reverse time 0~999hours optional
reverse way mannual/automatic
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 280kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 1020*1000*1270m Cooling way water cooling

Using timing control function, the setting is simple and convenient, and the working time of positive and negative current polarity can be arbitrarily set according to the plating process requirements.
It has three working states of automatic cycle commutation, positive and negative, and reverse, and can automatically change the polarity of the output current.

Cabinet Type AC / DC Polarity Reverse Electroplating Rectifiers 0

Cabinet Type AC / DC Polarity Reverse Electroplating Rectifiers 1
How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
Cabinet Type AC / DC Polarity Reverse Electroplating Rectifiers 2
Other advantages
1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.
2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.
3 Schottky Barrier Diode
a: It has been expanded 4 times.
4 All the controlling boards get antiseptic treatment with imported lacquer.
