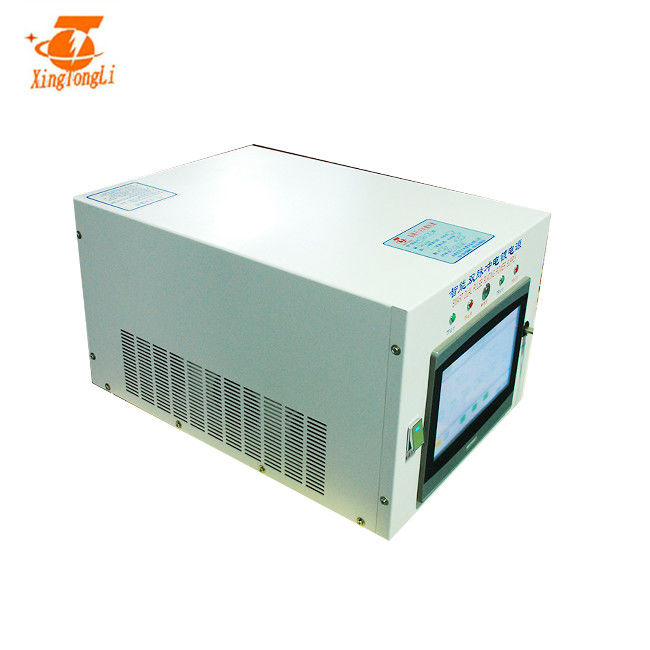

Reverse Polarity Pulse Rectifier 12v 5a
Specification
| SPECIFICATIONS FOR GKD(M)12-50CVC | |||
| Input AC | 380V±10% | 3phase | 50/60Hz |
| Output DC | Volt | ±0~12V Adjustable | |
| Current | ±0~2000A Adjustable | ||
| Power | 600W | ||
| Efficiency | >85% | ||
| Switching Frequency | 20KHz | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 80kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 480*600*740mm | Cooling way | Air cooling |
Application
Different volt and current has different applications
Description :
Double-pulse power supply is the latest generation of electroplating power supply products, is the further development and innovation of high-frequency switching power supply technology. It can be used in electroplating production or experimental testing. It has reliable work, perfect functions, and a wide range of uses. It is especially suitable for precious metal plating, PCB circuit board plating, semiconductor plating and other fields; gold plating, silver plating and other precious Precision plating of metals
Other advantages
1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.
2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.
3 Schottky Barrier Diode
a: It has been expanded 4 times.
4 All the controlling boards get antiseptic treatment with imported lacquer.
How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
