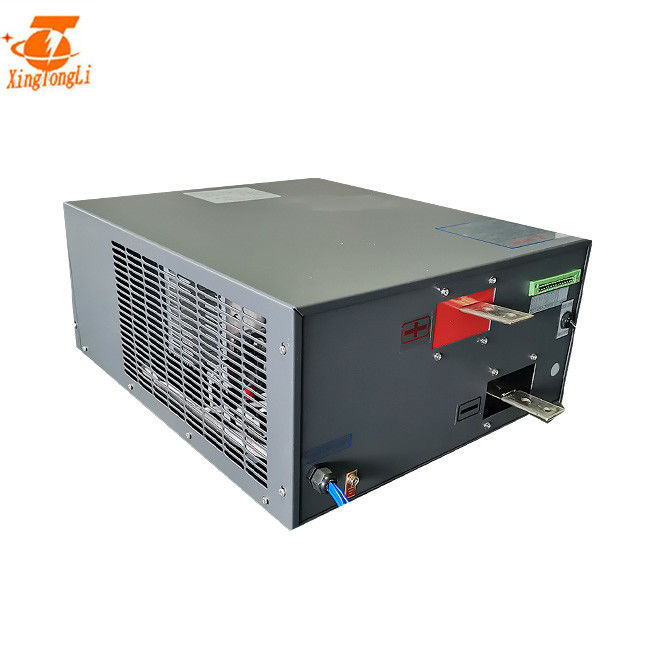

1 Phase Anodizing Aluminum Plating Rectifiers 30v 300a

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD30-300CVC
Minimum Order Quantity 1 unit
Price 900~1400
Packaging Details Single wooden case packing size:690*550*520mm Weight:60kg
Delivery Time 7~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200 units /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Anodizing Aluminum Rectifier 30v 300a Input Voltage 240V
Phase 1 Phase Output Voltage 0~30v Adjustable
Output Current DC 0~300A Adjustable Cooling Air Cooling
Size 605*415*240mm Weight 45kg
Control Local Panel Control With Timer And Ampere Hour Meter
High Light

30v 300a plating rectifiers

,

1 Phase Aluminum plating rectifier

Leave a Message
Product Description

anodizing aluminum rectifier 30v 300a




Specification

SPECIFICATIONS FOR GKD30-300CVC
Input AC 240V±10% 1phase 50/60Hz
Output DC Volt 0~30V Adjustable
Current 0~300A Adjustable
Power 9KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 35kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 690*550*520mm Cooling way Air cooling





Characteristics of aluminum anodized dc rectifier:





Aluminum anodic oxidation DC rectifier is used for anodizing aluminum. This process is actually the process of forming aluminum oxide film from aluminum profile or aluminum alloy profile by electrolytic aluminum surface. Our rectifiers also include imitation gold electroplating power supply, pulse electroplating rectifier, high-frequency electroplating power supply,





A. Digital timing system;

B. Ampere hour meter;

C. Standard interface;

D. Control signal interface.

1 Phase Anodizing Aluminum Plating Rectifiers 30v 300a 0





1 Phase Anodizing Aluminum Plating Rectifiers 30v 300a 1

1 Phase Anodizing Aluminum Plating Rectifiers 30v 300a 2









How to install rectifier




This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
1 Phase Anodizing Aluminum Plating Rectifiers 30v 300a 3

Other advantages


1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.





Anodizing introduction;



Anodizing is an electrolytic passivation process that is used to increase the thickness of the natural oxide layer on the surface of metal parts. Aluminium alloys are anodized to increase corrosion resistance and surface hardness, as well as to allow dyeing (colouring), improved lubrication, or improved adhesion. Different anodizing processes include hard anodizing, chromic acid anodizing (CAA), sulphuric acid anodizing (SAA), boric sulphuric acid anodizing (BSAA), tartaric sulphuric acid anodizing (TSAA) and phosphoric acid anodizing (PAA)
