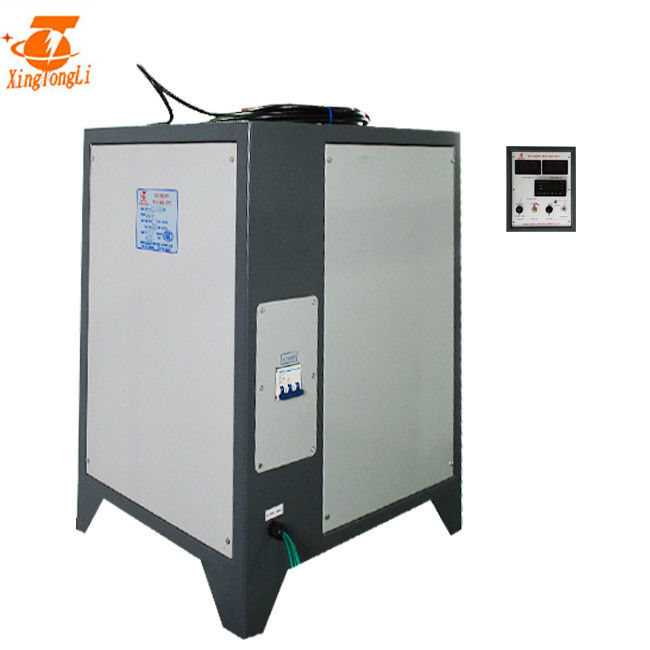

IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating
  • IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating
  • IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating

IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number GKD15-2000CVC
Product Details
DC Rectifier For Electroplating 2000A /15V
Control Way:
Remote Control/local Panel Control
Cooling Way:
Air Cooling
Stainless Steel Electrolytic Polishing Rectifier
High Light:

15v 2000a electroplating rectifier


IGBT electroplating rectifier


Remote Control Dc Rectifier

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden case 820*820*1000mm
Delivery Time
9~12 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description


DC Rectifier for Electroplating 2000A /15V​



Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~15V Adjustable
Current 0~2000A Adjustable
Power 30KW
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 140kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 820*820*1000mm Cooling way Air cooling


detail picture:


IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating 0

IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating 1

Advantages of stainless steel electropolishing:
Inside has the same color inside and outside, strong light retention, mechanical polishing can not make the notch flat.
Production has high efficiency and low cost.
(3) increase surface corrosion resistance, applicable to all stainless steel.
Requirements for electroplating and polishing of stainless steel:
The power waveform is not strict, SCR type or high frequency electroplating rectifier can be selected.
Electropolishing bath and supporting equipment (anode rod):
Rigid PVC plates are welded together. The three electrode bars on the top of the bath are in the middle of the movable anode bar, and then are connected with the anode (or positive pole), both sides are used as cathode poles, and are connected with the power cathode (negative pole).


stainless steel electropolishing process:


Stainless steel electrolytic polishing process: degreasing – washing – anti rust – washing – electrolytic polishing – washing – passivation – packaging.

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided

2. Control mode: Local control or Remote control(the length of cable is determined by customers)
3. Japan IGBT(the default choice) or Germany IGBT are adopted
4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
5. Easy to operate and repaire
1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.

2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.

3 Schottky Barrier Diode
a: It has been expanded 4 times.

4 All the controlling boards get antiseptic treatment with imported lacquer.
How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

IGBT Remote Control 2000a 15v Dc Rectifier For Electroplating 2
