products details

Home > Products >

Electroplating Power Supply

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply

Brand Name:	Xingtongli
Model Number:	GKD(24-30CVC
MOQ:	1 SET
Price:	Negotiable
Packaging Details:	Wooden case 420310145mm
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE RoHS

Application:

Electroplating

Efficiency:

Control Way:

Local Control

Cooling Way:

Air Cooling

Color:

Type:

AC To DC

Size:

420*310*145mm

Weight:

Supply Ability:

100 SET/month

Highlight:

water treatment electroplating power supply

electroplating water treatment power supply

Water Treatment Electroplating Power Supply

Product Description

24V 30 Amp AC to DC water treatment Power Supply

Specification

SPECIFICATIONS FOR GKD(M)(H)24-30CVC
Input AC	220V±10%	1phase	50/60Hz
Output DC	Volt	0~24V Adjustable
	Current	0~30A Adjustable
	Power	720W
	Efficiency	>85%
	Switching Frequency	20KHz
Protection	Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection
Working Condition (Temperature)	-10℃~50℃	Control mode	Panel control Remote control
Net weight	11kg	Working mode	Constant Voltage(CV) Constant Current(CC)
Dimension(mm)	20310145mm	Cooling way	Air cooling

Features

1,with imported famous brand components and international advanced full-bridge inverse conversion flow technology, which makes the performance of the whole machine stable and the quality more reliable.

2 The whole machine has automatic protection alarm function and soft start function for over-voltage, over-current, over-temperature, short-circuit, and lack of equivalence. And it can be equipped with time control and computer interface.

3 The DC output waveform is a high-frequency square wave, with a ripple factor of <1%, which can increase the number of plating, reject passivation, and enhance the gloss of the plating surface and the core drilling of the dark corner of the plating. It can also reduce the loss of raw materials and meet the various special requirements of the electroplating industry.

4 The high-frequency switching power supply adopts air-cooled design and is easy to install. And equipped with remote control device, easy to operate. It can be switched on and off with load to reduce the cumbersome adjustment procedures.

5 Small size and light weight, the whole machine is made with a full range of anti-corrosion technology, which enhances the anti-corrosion ability of the product and extends the service life.

6 High efficiency, energy saving, work efficiency reaches more than 90%, and any voltage to current ratio is always linearly matched. The loss of the voltage regulator and main transformer of the traditional rectifier is omitted, the energy saving is more than 35%, and the electroplating cost is greatly reduced. It is the most sensible choice in the surface treatment industry.

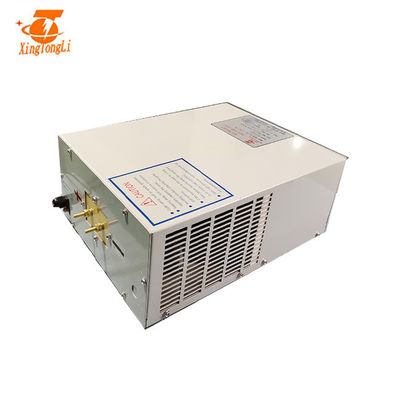

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply 1

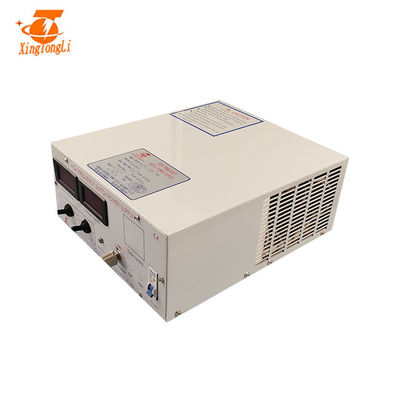

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply 2

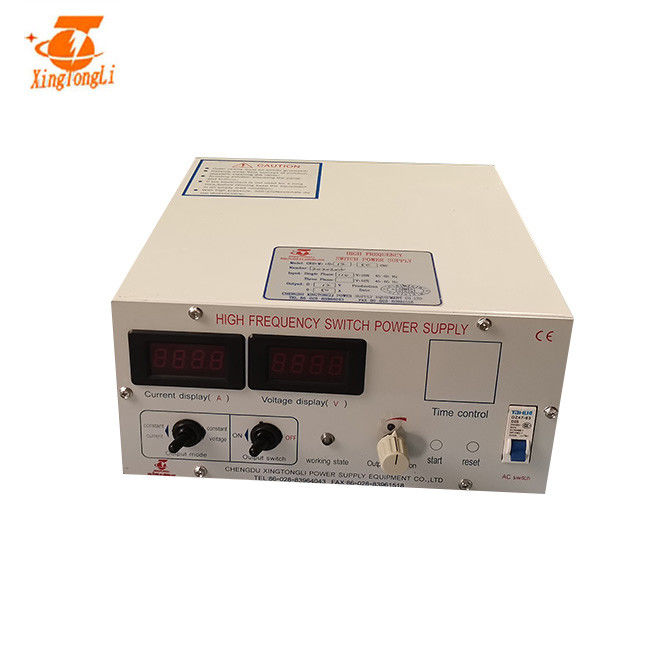

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply 3

Application

Different volt and current has different applications

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply 4

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

24V 30 Amp AC To DC Water Treatment Electroplating Power Supply 5

Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
