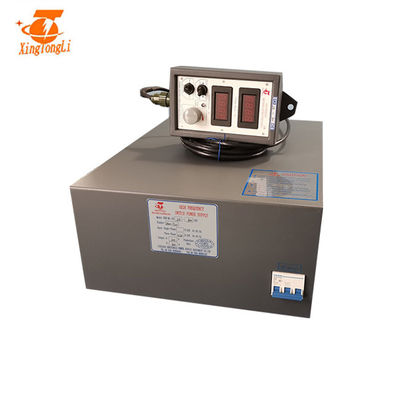

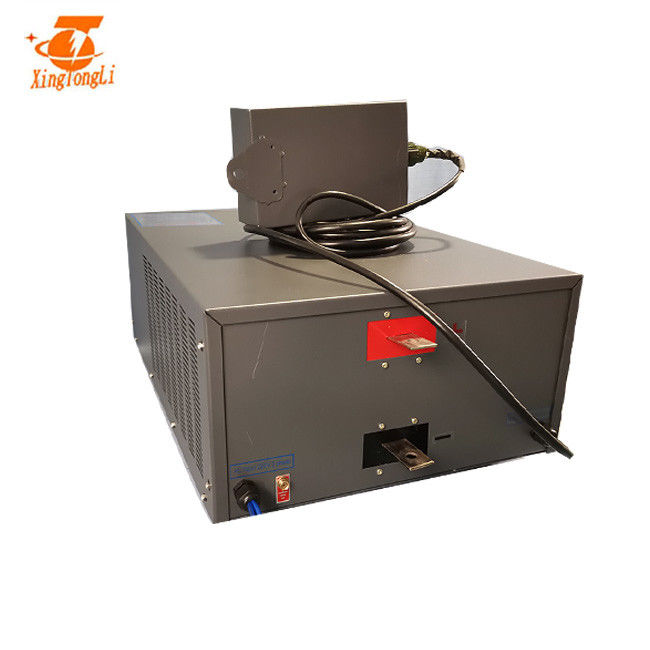

1000A 5V High Frequency AC DC Pulse Rectifier Electrolysis

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD5-1000CVC
Minimum Order Quantity 1 unit
Price 785$ ~1200$
Packaging Details Single wooden case packing size:690*550*520mm Weight:60g
Delivery Time 10~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 150units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1000A5V High Frequency AC-DC Rectifier Input Voltage AC 415V
Phase 3 Phase Output Voltage DC 0~5v Adjustable
Output Current DC 0~1000A Adjustable Work Mode CC CV
Size 690*550*520mm Weight 60KG
Color Grey
High Light

1000A 5V Rectifier Electrolysis

,

High Frequency Electrolysis Rectifier

,

5V AC DC Pulse Rectifier

Leave a Message
Product Description

1000A5V High Frequency AC-DC Rectifier



Specification



SPECIFICATIONS FOR GKD15-5000CVC
Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~5V Adjustable
Current 0~1000A Adjustable
Power 5KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 60kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 690*550*520m Cooling way water cooling



 Features


Using timing control function, the setting is simple and convenient, and the working time of positive and negative current polarity can be arbitrarily set according to the plating process requirements.
It has three working states of automatic cycle commutation, positive and negative, and reverse, and can automatically change the polarity of the output current.

1000A 5V High Frequency AC DC Pulse Rectifier Electrolysis 0

1000A 5V High Frequency AC DC Pulse Rectifier Electrolysis 1



Application:

1000A 5V High Frequency AC DC Pulse Rectifier Electrolysis 2



How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
1000A 5V High Frequency AC DC Pulse Rectifier Electrolysis 3

Cabinet:

Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable

other specs:



Input voltage: Single phase 110V,220V 50/60hz

Three phase AC 220V,380V, 400V, 450V any voltage specs

Output DC Voltage: 6V, 12V, 15V, 18V, 24V, 36V, any voltage specification
Output DC Current: 500A, 1000A, 1500A, 2000A, 3000A, 4000A, 5000A, 6000A, 8000A, 12000A, 15000A, 18000A, 20000A, any current specification
CC and CV Accuracy: ≤1%
Output Efficiency: 85%
Ripple ≤1-3%
