12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier
  • 12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier
  • 12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier

12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD12-200CVC
Product Details
Product Name:
12v 200 Amp Plating Rectifier
Input Voltage:
AC 220V
Phase:
3 Phase
Output Voltage:
DC 0~12v Adjustable
Output Current:
DC 0~200A Adjustable
Work Mode:
CC CV
Size:
520*395*165mm
Weight:
28KG
Color:
Grey
High Light:

12v gold plating rectifier

,

200 Amp gold plating rectifier

,

200A Copper Gold Plating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
500$ ~1000$
Packaging Details
Single wooden case packing size:520*395*165mm Weight:25kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
150units/month
Product Description

12v 200 amp plating rectifier for Zinc Nickel Copper Gold plating



Specification



SPECIFICATIONS FOR GKD12-200CVC
Input AC 380V±10% 1 phase 50/60Hz
Output DC Volt 0~12V Adjustable
Current 0~200A Adjustable
Power 2.4KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)
-10℃~50℃ Control mode Panel control
Remote control
Net weight 25kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 520*395*165mm Cooling way

air

cooling



 Features

1. Small size, light weight, electricity-saving, high accuracy



2. The communication interface can be provided



3. Duration control can be provided



4. Douch screen can be provided



5. Control mode: Local control or Remote control(the length of cable is determined by customers)



6. Japan IGBT(the default choice) or Germany IGBT are adopted



7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function



8. Easy to operate and repaire



Product picture:

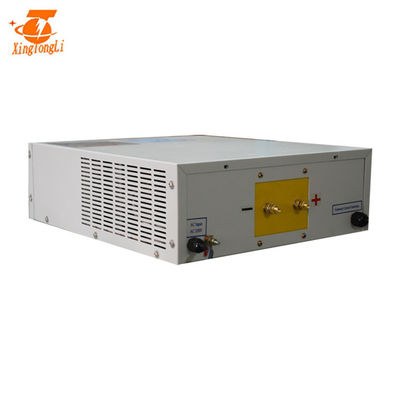

12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier 0

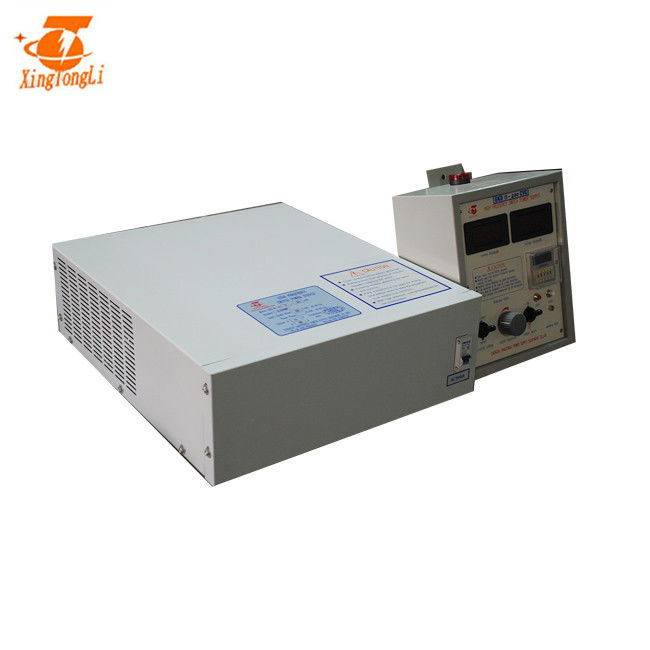

12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier 1

Application:



12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier 2

 Installation



12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier 3

Cabinet:

Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times



Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable



produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.

12v 200 Amp Zinc Nickel Copper Gold Plating Rectifier 4
