30v 150a Andodizing Rectifier With Timer And Ampere Hour Meter

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD30-150CVC
Minimum Order Quantity 1 unit
Price 380$ ~800$
Packaging Details Single wooden case packing size:520*395*165mm Weight:25kg
Delivery Time 10~15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 300units/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 30V 150A Andodizing Rectifier Input Voltage AC 220V
Phase 3 Phase Output Voltage DC 0~30v Adjustable
Output Current DC 0~150A Adjustable Work Mode CC CV
Size 520*395*165mm Weight 25KG
Color Grey
High Light

30v 150a Andodizing Rectifier


3 phase Andodizing Rectifier

Leave a Message
Product Description

30V 150A Andodizing rectifier with timer and ampere hour meter




Input AC 380V±10% 1 phase 50/60Hz
Output DC Volt 0~30V Adjustable
Current 0~150A Adjustable
Power 4.5KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 25kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 520*395*165mm Cooling way







Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting


Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance


radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times


Board :

all control boards did anticorrosion treatment with imported three defense lacquer


IGBT capacity expanded 3 times,make the power supply more reliable



Product picture:

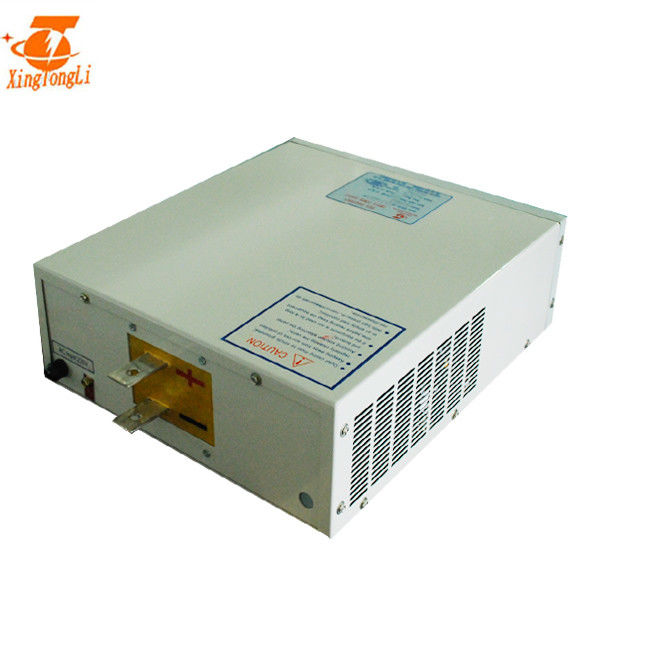

30v 150a Andodizing Rectifier With Timer And Ampere Hour Meter 0

30v 150a Andodizing Rectifier With Timer And Ampere Hour Meter 1



30v 150a Andodizing Rectifier With Timer And Ampere Hour Meter 2




30v 150a Andodizing Rectifier With Timer And Ampere Hour Meter 3

produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.

30v 150a Andodizing Rectifier With Timer And Ampere Hour Meter 4


Anodizing process:


Anodizing is an electrochemical process that transforms metal surfaces into decorative, durable, and corrosion-resistant anodizing layers. Aluminum is well suited for anodizing, although other non-ferrous metals, such as magnesium and titanium, can also be anodized.




The structure of the anodic oxide originates from the aluminum substrate and consists entirely of alumina. The alumina is not applied to the surface like paint or electroplating, but is fully integrated with the underlying aluminum substrate, so it does not shatter or flake. It has highly ordered porous structure and can be used for secondary processing such as coloring and sealing.





Anodizing is accomplished by immersing aluminum in an acidic electrolyte and passing current through the medium. The cathode is installed inside the anode oxidation tank. Aluminum acts as an anode, so oxygen ions are released from the electrolyte and combine with aluminum atoms on the surface of the anodized part. Therefore, anodizing is a highly controlled oxidation problem, enhanced by natural phenomena.
