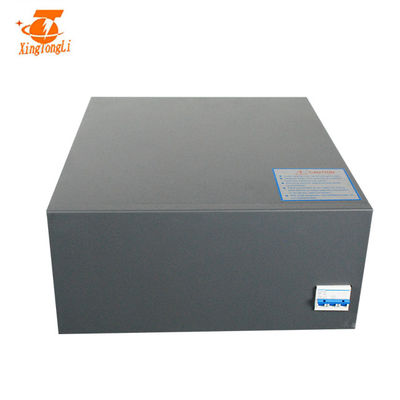

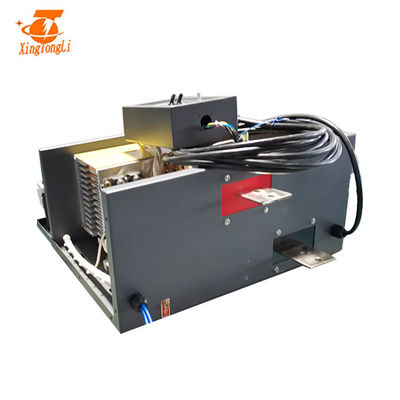

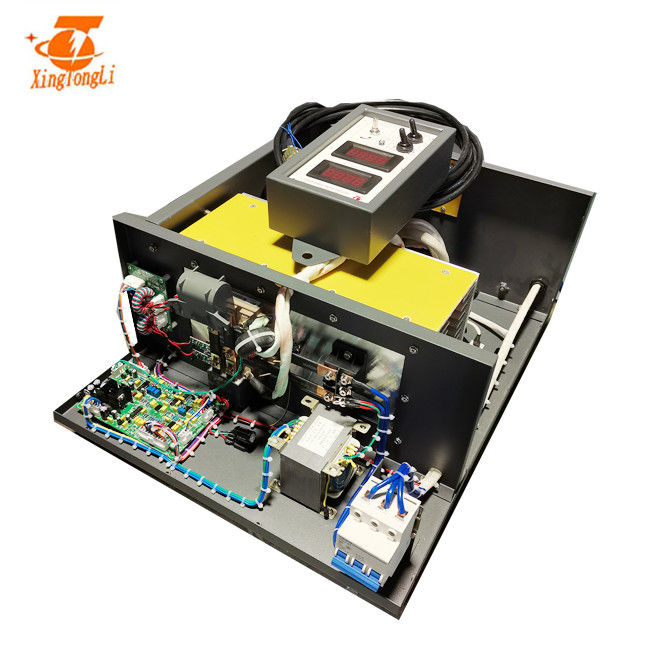

3 Phase AC To DC Plating Rectifier 8V 1000A
  • 3 Phase AC To DC Plating Rectifier 8V 1000A
  • 3 Phase AC To DC Plating Rectifier 8V 1000A
  • 3 Phase AC To DC Plating Rectifier 8V 1000A

3 Phase AC To DC Plating Rectifier 8V 1000A

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD8-1000CVC
Product Details
Product Name:
AC To DC Plating Rectifier 8V 1000A
Input Voltage:
AC 415V
3 Phase
Output Voltage:
DC 0~8v Adjustable
Output Current:
DC 0~1000A Adjustable
Work Mode:
High Light:

AC To DC Plating Rectifier


8V Plating Rectifier


1000a electroplating rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Single wooden case packing size: 690*550*520mm Weight:45kg
Delivery Time
5~7 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
Product Description

AC to DC plating Rectifier 8V 1000A




Input AC 380V±10% 3phase 50/60Hz
Output DC Volt 0~8V Adjustable
Current 0~1000A Adjustable
Power 8KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 70kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 665*490*270mm Cooling way air cooling



Electro plating power supply provide power supply to a variety of plating bath. Plating can be divided into direct current plating, cycle pole reverse plating, and pulse electroplating etc.. Early plating power supply used by AC motors – DC generator units, since the 1980s has gradually been replaced of power electronic devices composed plating power supply.


3 Phase AC To DC Plating Rectifier 8V 1000A 0

3 Phase AC To DC Plating Rectifier 8V 1000A 1

3 Phase AC To DC Plating Rectifier 8V 1000A 2


AC to DC plating rectifier application:

3 Phase AC To DC Plating Rectifier 8V 1000A 3

How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
3 Phase AC To DC Plating Rectifier 8V 1000A 4


Electroplating technology

As electronic components become increasingly smaller, the use of electroplating to manufacture the components and interconnects between these devices has become significantly more important. Historically, a simple powerstat was used to control the rectifier output.

As the power requirements changed and the plating requirements continued to be more sophisticated, electroplaters started to specify outputs with a ripple of less than 5%, so chokes and capacitors were used to smooth the output. Now switching power supplies are becoming the industry standard because of their small footprint, good regulation, and low ripple.

Plating is essentially a molecule-by-molecule process where soluble metal ions dissolved in water pick up electrons from the rectifier at the cathode. The electrons convert the metal ions back into the solid metal. For the metal ions to be reduced to the metal, the predominant flow of electrons has to be into the workpiece, which is at the cathode.

A power supply used for plating is considered a dc supply as long as more electrons flow into the piece being plated than are removed from it. If more electrons are removed from the workpiece than flow into it, the workpiece either dissolves or anodizes depending on the type of metal.
