Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A

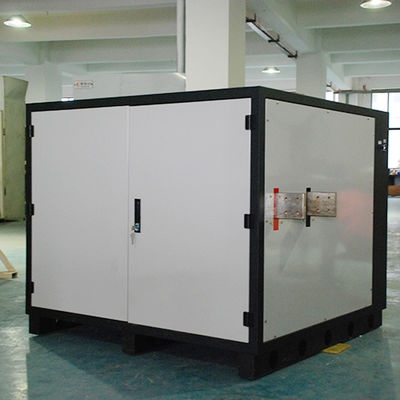

  • Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A

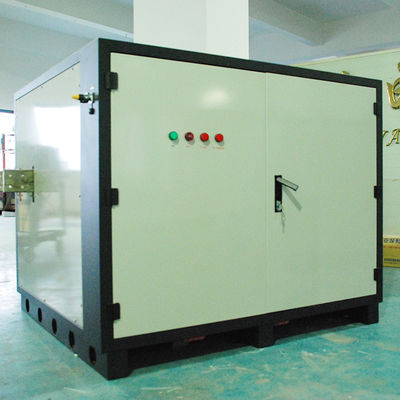

  • Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A
Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A

Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A

Place of Origin China
Brand Name xingtongli
Certification ISO CE RoHS
Model Number GKD25-5000CVC
Product Details
Product Name:
Pulse Periodic Reverse Rectifier 25v 5000a
Input Voltage:
AC 415V
Phase:
3 Phase
Output Voltage:
DC 0~25v Adjustable
Output Current:
DC 0~5000A Adjustable
Work Mode:
CC CV
Size:
1300*1210*1079mm
Weight:
400kg
Color:
Grey
High Light:

Pulse Periodic Reverse Rectifier

,

25V Reverse Rectifier

,

25V Reverse Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
Price
26000$~30000$
Packaging Details
Single wooden case packing size:520*395*165mm Weight:25kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
300units/month
Product Description

Pulse periodic reverse rectifier 25v 5000a



Specification



SPECIFICATIONS FOR GKDH25-5000CVC
Input AC 415V±10% 3 phase 50/60Hz
Output DC Volt 0~25V Adjustable
Current 0~5000A Adjustable
Power 125KW
Efficiency >85%
output Frequency 40KHz fixed
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
(Temperature)		 -10℃~50℃ Control mode Panel control
Remote control
Net weight 400kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 1300*1210*1079mm Cooling way

air

cooling
Reverse time 0~9999minuts adjustable reverse way manual /automatic





Pulse periodic reverse rectifier 25v 5000a  Features

1. Small size, light weight, electricity-saving, high accuracy



2. The communication interface can be provided



3. Duration control can be provided



4. Douch screen can be provided



5. Control mode: Local control or Remote control(the length of cable is determined by customers)



6. Japan IGBT(the default choice) or Germany IGBT are adopted



7. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function



8. Easy to operate and repaire

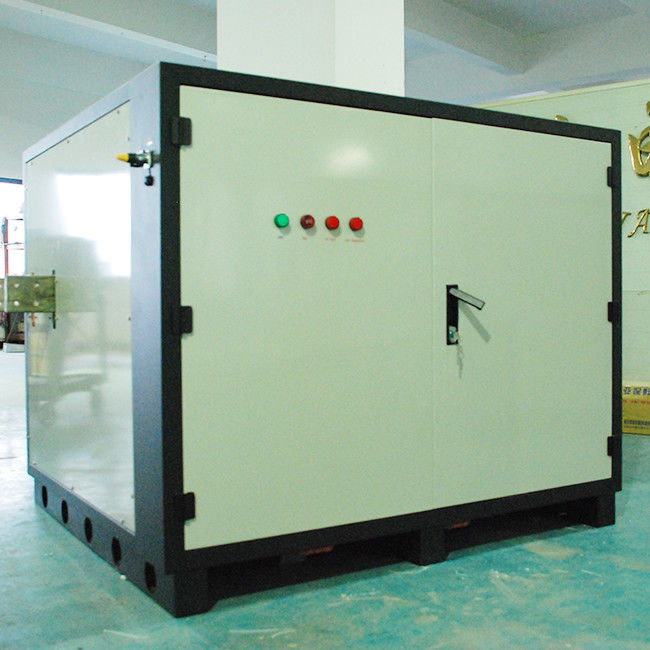

Pulse periodic reverse rectifier 25v 5000a picture:

Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A 0

Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A 1







 Installation



Pulse Periodic Reverse Rectifier 3 Phase 25V 5000A 2



Advantages Pulse periodic reverse rectifier 25v 5000a

In operation and application, there is almost no difference between pulse reverse plating and DC acid copper system. The main visible difference is rectification. With PPR system, rectifier is controlled by software, and all working methods and batch files can be pre programmed. In addition, like the traditional acid copper system, PPR system also uses whitening agent, carrier and wetting additive system, and can analyze the additive package comprehensively. Traditional acid copper plating also uses two or three maintenance additives.

Pulse reverse current will cause desorption of special additives above the threshold current density. This desorption increases the "resistance" in the high current density (HCD) region, thus increasing the "throwing force" of the electrolyte.


Productivity comparison of existing electroplating production lines.

Compared with the traditional acid copper plating, PPR system uses a lower concentration of copper, thus reducing the amount of sludge generated in the process. Due to the improved method of throwing the coating into the low current density (LCD) area, PPR system needs less time to achieve the minimum copper thickness.

Equipment requirements

The PPR system requires the use of rectifier in square wave form and special cable to avoid inductance. (coaxial cable or twisted pair welding cable is recommended.) Tanks with weirs are also required because pulse plating consumes higher additive rates than DC acid plating.
