| Brand Name: | xingtongli |
| Model Number: | GKD20-1000CVC |
| MOQ: | 1 unit |
| Price: | 1200$ ~1500$ |
| Packaging Details: | Single wooden case packing size:520*395*165mm Weight: 12kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
20V 1000A igbt based plating rectifier
Specification
| SPECIFICATIONS FOR GKD20-1000CVC | |||
| Input AC | 380V±10% | 3 phase | 50/60Hz |
| Output DC | Volt | 0~20V Adjustable | |
| Current | 0~1000A Adjustable | ||
| Power | 20KW | ||
| Efficiency | >85% | ||
| output Frequency | 40KHz fixed | ||
| output ripple | 5% effective value | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 45kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 690*550*520mm | Cooling way |
air cooling |
20V 1000A igbt based plating rectifier Features
|
Cabinet: Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: IGBT capacity expanded 3 times,make the power supply more reliable |

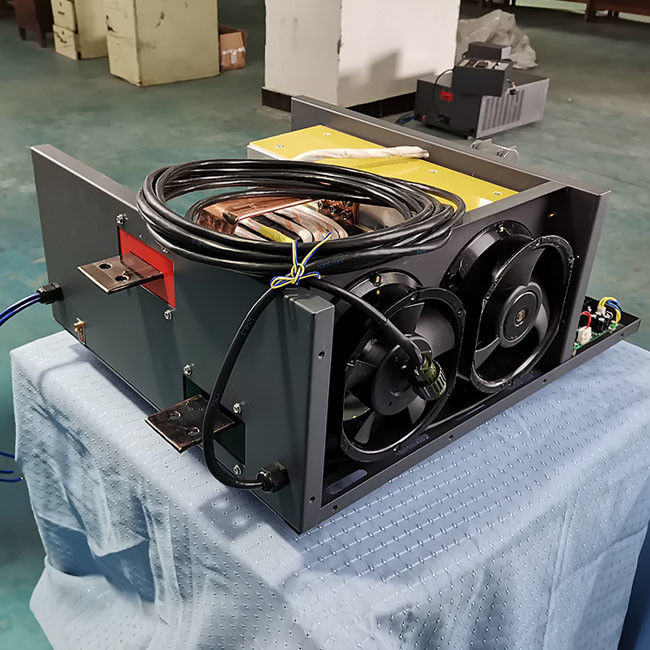

20V 1000A igbt based plating rectifier picture:
THE DIFFERENCE BETWEEN SCR & IGBT SWITCH RECTIFIER
1, efficiency
SCR: 70%
IGBT:90%
2,Transformer
SCR:Power frequency transformer, large volume about 200kg
IGBT:without Power frequency transformer
3,Energy saving efficiency
SCR: bad
IGBT: energy saving about 15%-30%
4, start/stop with load
SCR: can’t
IGBT: can
5,control circuit
SCR:Complex, request synchronous and difficult to integrate
IGBT:use the simple integrated circuit board, and anti-corrosion treatment completely closed.
6,constant current accuracy
SCR:＜5%
IGBT:＜1%
7,cooling way
SCR: water/oil/air cooling
IGBT:water/air cooling
8,work frequency
SCR:50HZ
IGBT:20KHZ
9,control way
SCR:Phase shift trigger
IGBT: PWM
10,output DC
SCR:half wave
IGBT:High density DC square wave
11,Disturbance to power grid
SCR: large,Not easy to eliminate
IGBT: small,easy to eliminate
12,size and weight
SCR: large size and heavy
IGBT: small and light weight
13,Allowable fluctuation range of input voltage
SCR: ±10%
IGBT:±15%
20V 1000A igbt based plating rectifier Installation
| 1, Placing rectifier and keep the body stability; ensure good ventilation. |
| 2, Checking anodizing rectifier out cover if loosing. |
| 3, Connecting shell to ground to prevent static electricity. |
| 4, Conecting the AC input wire |
| 5, Connecting the DC output copper bars |
| 6, Connecting the rectifier remote control box,if local control ,skip this step |
| 7, Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
| 10, Disconnect the air switch, turn off the rectifier |
produce process :
|
