12V 25A salt water electrolysis rectifier
Salt Water Electrolysis Rectifier for disinfection
Brine Electrolysis is the electrochemical process called #electrochlorination. It can be divided into 2 types: salt water electrolysis and seawater electrolysis.
The salt Water Electrolysis is mainly used in large waterworks, cooling towers, industrial process water plants, sewage treatment plants and agriculture. The Seawater Electrolysis is mainly used for large cooling towers in power or chemical plants on the shore and seawater swimming pools.
we have switch-mode rectifier solutions for brine electrolysis projects which have been prove good performance at users' site.
12V 25A salt water electrolysis rectifier Specification
| SPECIFICATIONS FOR GKD48-20CVC |
| Input AC |
220V±10% |
1 phase |
50/60Hz |
| Output DC |
Volt |
0~12V Adjustable |
| Current |
0~25A Adjustable |
| Power |
300W |
| Efficiency |
>85% |
| output Frequency |
40KHz fixed |
| output ripple |
3% peak value |
| Protection |
Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection |
Working Condition
(Temperature) |
-10℃~50℃ |
Control mode |
Panel control
Remote control |
| Net weight |
12kg |
Working mode |
Constant Voltage(CV)
Constant Current(CC) |
| Dimension(mm) |
520*395*165mm |
Cooling way |
air
cooling
|
Industrial electrolysis process
Industrial use 2NaCl+2H₂O=== energization===2NaOH+H₂↑ +Cl₂↑ to produce caustic soda, chlorine and hydrogen. (Caustic soda is sodium hydroxide) [1]
Chlorine gas reacts with hydrogen gas: H₂+Cl₂===ignition or light===2HCl, and the HCl gas generated is hydrochloric acid when dissolved in water.
Chlorine reacts with sodium hydroxide solution: 2NaOH+Cl2=NaCl+NaClO+H2O. The resulting NaClO has strong oxidizing properties, and its salts can be used as bleaching agents and disinfectants.
In the above experiment of electrolysis of saturated brine, chemical reactions can occur between the electrolysis products, such as NaOH solution and Cl2 or Cl ion contact will generate NaClO and NaCl, H₂ and Cl₂ mixed with fire or light can explode. In industrial production, it is necessary to avoid the mixing of these products, and the reaction is often carried out in a specially structured electrolytic cell with an ion exchange membrane (no negatively charged chloride ions or chlorine gas is allowed to pass).
experiment

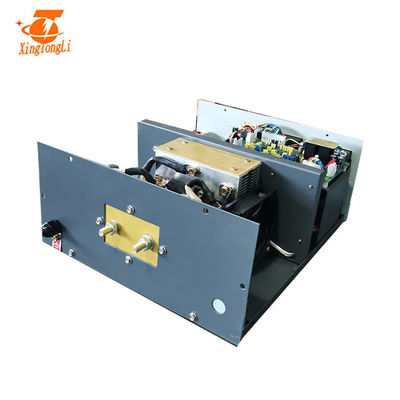

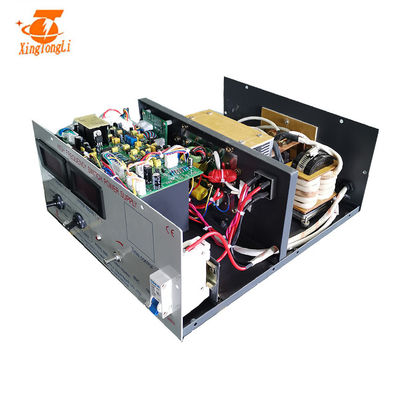

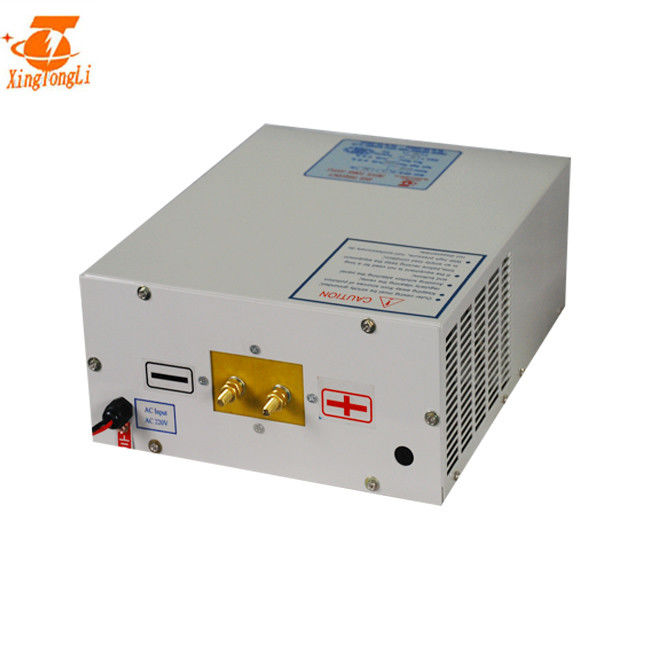

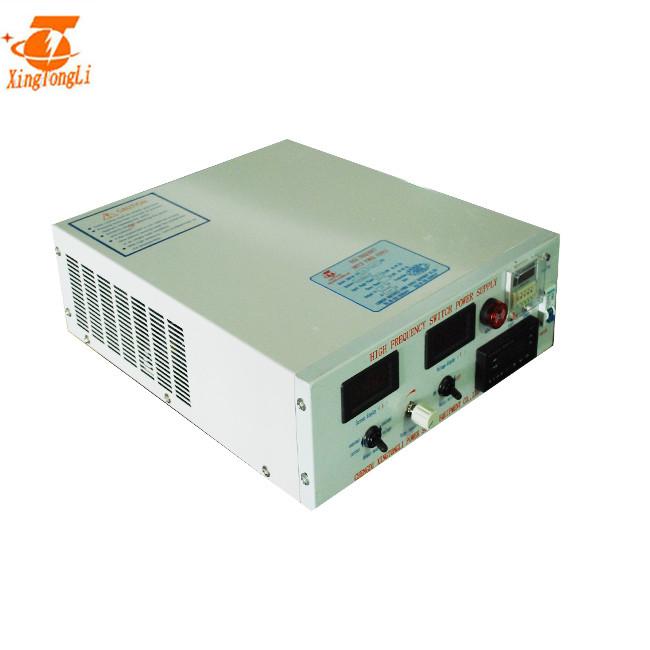

12V 25A salt water electrolysis rectifier Product picture:
Installation
produce process :
From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.
