Three Phase 8V 500A Plating Switching Rectifier

Brand Name:	xingtongli
Model Number:	GKD8-500CVC
MOQ:	1 unit
Price:	900$ ~1300$
Packaging Details:	Single wooden case packing size:665490270mm Weight: 45kg
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE RoHS

Product Name:

8V 500A Plating Switching Rectifier

Input Voltage:

AC 415V

Phase:

3 Phase

Output Voltage:

DC 0~8v Adjustable

Output Current:

DC 0~500A Adjustable

Work Mode:

CC CV

Size:

665*490*270mm

Weight:

Color:

Black

Supply Ability:

300units/month

Highlight:

500A Switching Rectifier

8V Switching Rectifier

Plating Three Phase Rectifier

Product Description

8V 500A plating switching rectifier

Electroplating involves the process of coating conductive surfaces with metal. The reason for electroplating metals is to make them have more beautiful appearance, inhibit corrosion, reduce friction, harden metals, enhance their paint adhesion, improve their solder ability and many other reasons.

Direct current critical to a successful plating process can come from a low voltage generator or rectifier. Initially, generators were the main source of direct plating current, but due to the high cost of purchase and maintenance of these generators, rectifiers became a cheaper alternative.

8V 500A plating switching rectifier Specification

SPECIFICATIONS FOR GKD8-500CVC
Input AC	220V±10%	3 phase	50/60Hz
Output DC	Volt	0~8V Adjustable
	Current	0~500A Adjustable
	Power	4KW
	Efficiency	>85%
	output Frequency	40KHz fixed
	output ripple	3%
Protection	Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection
Working Condition (Temperature)	-10℃~50℃	Control mode	Panel control Remote control
Net weight	45kg	Working mode	Constant Voltage(CV) Constant Current(CC)
Dimension(mm)	695552mm	Cooling way	air cooling

8V 500A plating switching rectifier feature:

there are many important characteristics of a rectifier which makes them more suitable than a low-voltage generator for electroplating processes:

Rectifier saves energy; it adopts a high-frequency switching power supply transformer and as a result, the efficiency at which it converts current improves.

It is lightweight and also very small; if you have a thyristor rectifier, the size and weight will be 1/5-1/10. This weight and size make it very easy for you to expand, plan, install, maintain and move as the case may be.

Easy modulation; Rectifier output waveform can be modulated. Due to high frequency, the cost of output waveform adjusting processing is low and can be easily changed depending on what the users require. As a result, there will be room to improve the efficiency on site and also improve the quality of processing product.

Stability of output; the system has a high response speed, and as a result, the rectifier can adapt strongly to load changes and electricity network. This characteristic will ensure the accuracy of more than 1%. Also, the switching power supply works very efficiently to enable high precision control which will, in turn, improve the products quality.

1. Reduction of porosity; as the rate at which nuclei forms is greater than the rate of growth, it leads to nuclei refinement.

2. Improve the binding force; rectifier enable the film to break down, and as a result, there will be a strong bond between the coating film and substrate.

3. It enhances the capacity for coverage and dispersion

4. It helps to reduce the stress on the coating; a rectifier help to reduce internal coating stress and as a result, there will be a reduction of additive and an achievement of a crack-free coating film.

5. Rectifier helps a lot if you want to achieve an alloy coating composition that is stable.

6. With a rectifier, there will not be a need for anode activator since it improves the dissolution of an anode

Product picture:

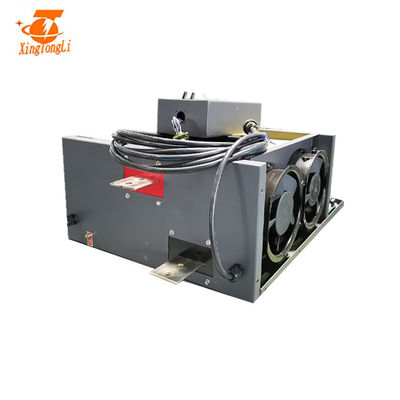

Three Phase 8V 500A Plating Switching Rectifier 0

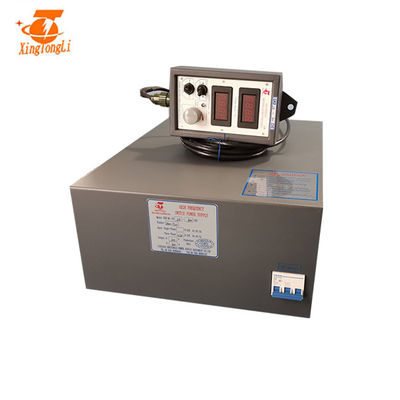

Three Phase 8V 500A Plating Switching Rectifier 1

Installation

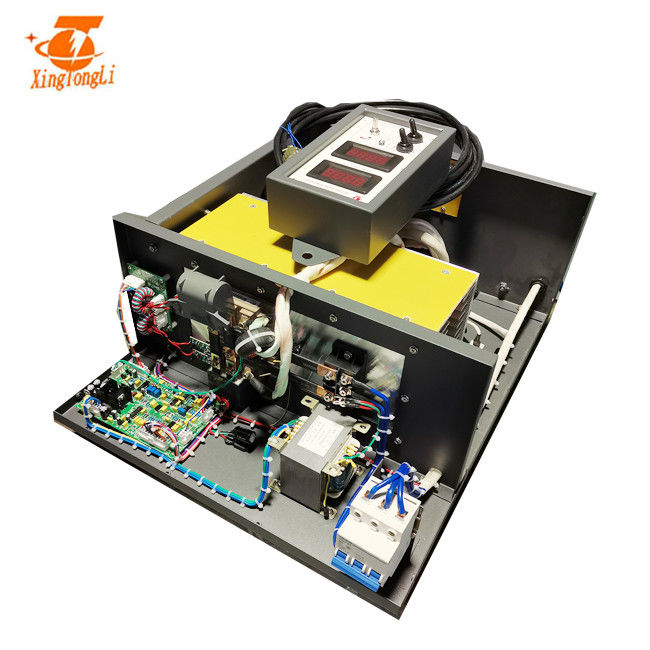

Three Phase 8V 500A Plating Switching Rectifier 2

produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.

Three Phase 8V 500A Plating Switching Rectifier 3
