plating Electronic 50 Amp 12 Volt Rectifier
Electroplating electronics is one of the technical leaders of DC rectifier and pulse power supply for electrochemical process. These include electroplating, aluminum surface treatment, PCB manufacturing and water treatment. Electroplate electronics provides customized solutions for the best power supply in all of these areas.
plating Electronic 50 Amp 12 Volt Rectifier Specification
| SPECIFICATIONS FOR GKD12-50CVC | |||
| Input AC | 220V±10% | 1 phase | 50/60Hz |
| Output DC | Volt | 0~12V Adjustable | |
| Current | 0~50A Adjustable | ||
| Power | 600W | ||
| Efficiency | >85% | ||
| output Frequency | 40KHz fixed | ||
| output ripple | 5% peak valu | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 12kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 520*395*165mm | Cooling way |
air cooling |
plating Electronic 50 Amp 12 Volt Rectifier Features
Switching power supply adopts high-efficiency and high-frequency technology. Compared with traditional rectifiers based on motor control or thyristor technology to regulate output, switching power supply has many advantages. Switch mode technology is a reliable, globally recognized and robust technology that is very suitable for use in electroplating and industrial applications. Air or water-cooled DC and pulsed power supplies can also be easily integrated into a control system.
|
Cabinet: Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting |
Structure: Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance |
|
Radiator: radiator capacity expanded 1.5 times,make sure better cooling effect |
switch control way: adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy |
|
Main transformer: adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability |
Core & Schottky diode: core capacity expanded 1.5 times schottky diode expands 4 times
|
|
Board : all control boards did anticorrosion treatment with imported three defense lacquer |
IGBT: IGBT capacity expanded 3 times,make the power supply more reliable |

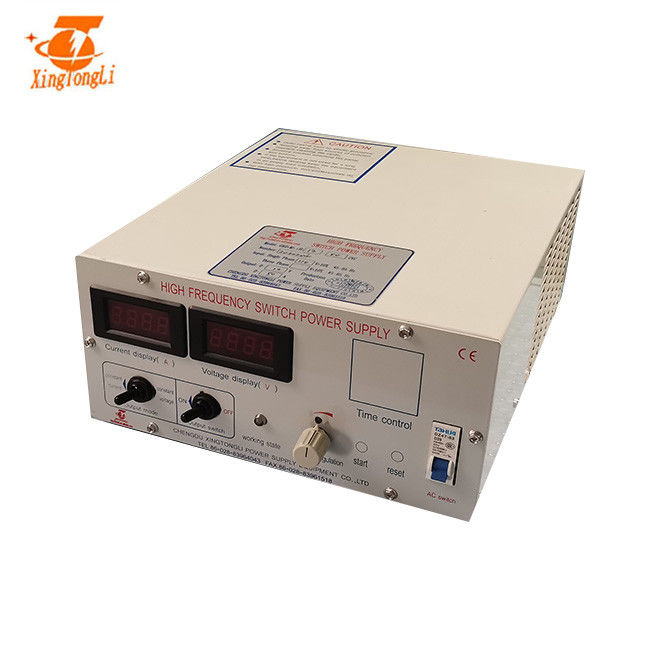

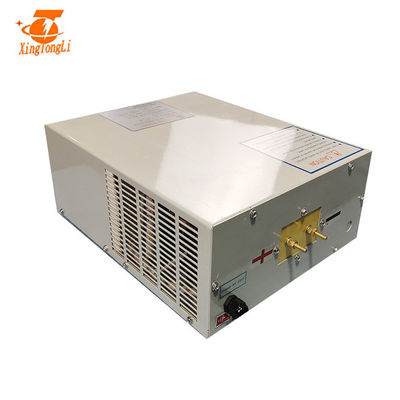

Product picture:
plating Electronic 50 Amp 12 Volt Rectifier Installation
| 1, Placing rectifier and keep the body stability; ensure good ventilation. |
| 2, Checking anodizing rectifier out cover if loosing. |
| 3, Connecting shell to ground to prevent static electricity. |
| 4, Conecting the AC input wire |
| 5, Connecting the DC output copper bars |
| 6, Connecting the rectifier remote control box,if local control ,skip this step |
| 7, Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
| 10, Disconnect the air switch, turn off the rectifier |
