90V 100A IGBT Galvanization 3 Phase Rectifier
| Place of Origin | China |
|---|---|
| Brand Name | xingtongli |
| Certification | ISO CE RoHS |
| Model Number | GKD90-100CVC |
| Minimum Order Quantity | 1 unit |
| Price | 100$ ~1600$ |
| Packaging Details | Single wooden case packing size:665*490*270mm Weight: 45kg |
| Delivery Time | 10~15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 300units/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 90V 100A IGBT Galvanization Rectifier | Input Voltage | AC 380V |
|---|---|---|---|
| Phase | 3 Phase | Output Voltage | DC 0~90v Adjustable |
| Output Current | DC 0~100A Adjustable | Work Mode | CC CV |
| Size | 665*490*270mm | Weight | 45kg |
| Color | Black | ||
| High Light | Galvanization 3 Phase Rectifier,Galvanization 3 Phase Rectifier,90V 100A three phase rectifier |
||
Product Description
90V 100A IGBT galvanization rectifier
Galvanizing is the process of bonding zinc coating to steel to prevent corrosion. The process involves electroplating, with current flowing through a salt / zinc solution with zinc anodes and steel conductors. Based on the tonnage of electroplating per year, electro galvanizing remains a dominant position in the selection of other electroplating processes. According to the statistics of the International Zinc Association, more than 5 million tons of hot-dip galvanizing and electroplating each year. [1] Galvanizing was developed in the early 20th century. At that time, electrolytes were based on cyanide. A major innovation in the 1960s was the introduction of the first acyl chloride based electrolytes. [2] In the 1980s, the alkaline electrolyte was restored only this time without cyanide. The most commonly used zinc plated cold rolled steel is SECC steel. Compared with hot dip galvanizing, electro galvanizing has the following important advantages:
Lower thickness sediments to achieve comparable performance
Conversion coatings are available in a wider range to improve performance and color selection
The sediment is brighter and more beautiful
90V 100A IGBT galvanization rectifier Specification
| SPECIFICATIONS FOR GKD90-100CVC | |||
| Input AC | 220V±10% | 3 phase | 50/60Hz |
| Output DC | Volt | 0~90V Adjustable | |
| Current | 0~100A Adjustable | ||
| Power | 9KW | ||
| Efficiency | >85% | ||
| output Frequency | 40KHz fixed | ||
| output ripple | 3% | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 45kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 69*55*52mm | Cooling way |
air cooling |
90V 100A IGBT galvanization rectifier feature:
there are many important characteristics of a rectifier which makes them more suitable than a low-voltage generator for electroplating processes:
Rectifier saves energy; it adopts a high-frequency switching power supply transformer and as a result, the efficiency at which it converts current improves.
It is lightweight and also very small; if you have a thyristor rectifier, the size and weight will be 1/5-1/10. This weight and size make it very easy for you to expand, plan, install, maintain and move as the case may be.
Easy modulation; Rectifier output waveform can be modulated. Due to high frequency, the cost of output waveform adjusting processing is low and can be easily changed depending on what the users require. As a result, there will be room to improve the efficiency on site and also improve the quality of processing product.
Stability of output; the system has a high response speed, and as a result, the rectifier can adapt strongly to load changes and electricity network. This characteristic will ensure the accuracy of more than 1%. Also, the switching power supply works very efficiently to enable high precision control which will, in turn, improve the products quality.
90V 100A IGBT galvanization rectifier Optional Properties
Profibus DP
- 12mbit Profibus DP concordance,opportunuty to connect single or in groups ProfiNet- 100 Mbit
ProfiNet
Concordance,opportunuty to connect single or in groups
Modbus-
Modbus communications over Ethernet or RS485
Ethernet Serial Communication
-Communication over RS 232 or RS485 on Mak Plus or a different protocol 100Mbit wired, 54 Mbit wireless
Analog Reference
- 0-10 V or 4-20 mA DC signal and the Current - Voltage control
PC Control
-Serial and Wireless Communication over RS 232/485 on MRS control software
PLC Control-
Ability to control motor system with two relay contact
- 12mbit Profibus DP concordance,opportunuty to connect single or in groups ProfiNet- 100 Mbit
ProfiNet
Concordance,opportunuty to connect single or in groups
Modbus-
Modbus communications over Ethernet or RS485
Ethernet Serial Communication
-Communication over RS 232 or RS485 on Mak Plus or a different protocol 100Mbit wired, 54 Mbit wireless
Analog Reference
- 0-10 V or 4-20 mA DC signal and the Current - Voltage control
PC Control
-Serial and Wireless Communication over RS 232/485 on MRS control software
PLC Control-
Ability to control motor system with two relay contact

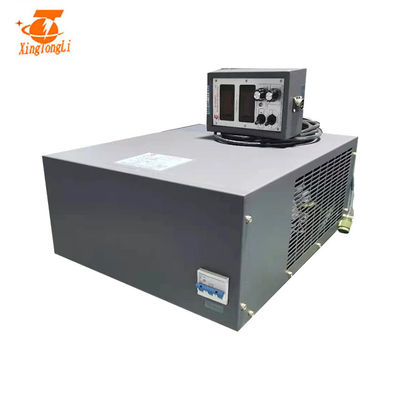

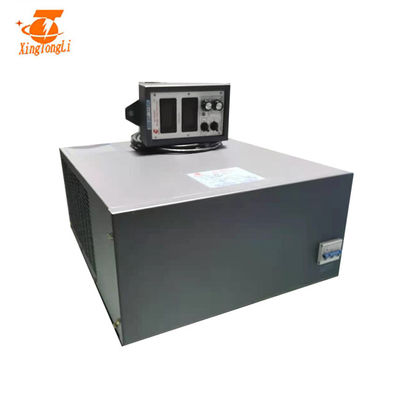

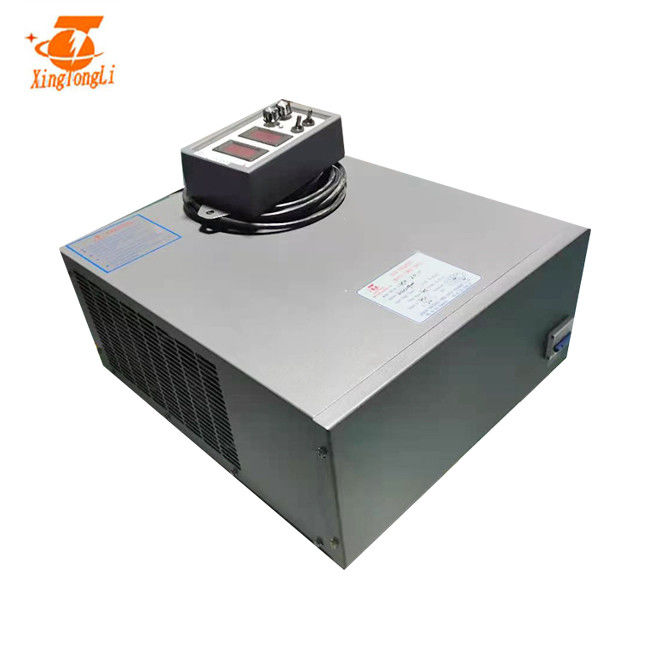

90V 100A IGBT galvanization rectifier Product picture:
Installation
produce process :
From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.
