| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE RoHS |
| Model Number | XTL30KV-0,5mA |
I. Technical Data Sheet
| Model | XTL30KV-0.5mA |
| AC Input | Single phases 220VAC |
| Input Voltage Range | 220VAC±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0~30000VDC |
| Output current | 0~0.5mA |
| Output Power | 1500W |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Remote Adjustment | (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC |
| Remote Display | (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC |
| Output Over-Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
| Output Over Load Protection | Overload, current limit, constant current output |
| Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |
| Voltage Setting | 10-turn precision potentiometer |
| Current Setting | 10-turn precision potentiometer |
| Output Polarity | Output Positive(+) negative(- ) Can be grounded at will |
| Heat Dissipation Way | Forced fan cooling |
| Work Conditions | Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH |
| Storage Conditions | Temperature:-20℃~70℃; Humidity: 10%~90%RH |
| Machine Dimension | L483*W430*H90(MM) |
| Net Weight/Gross Weight | 13KG/15KG |
2. INTRODUCTION
1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.
2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.
3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

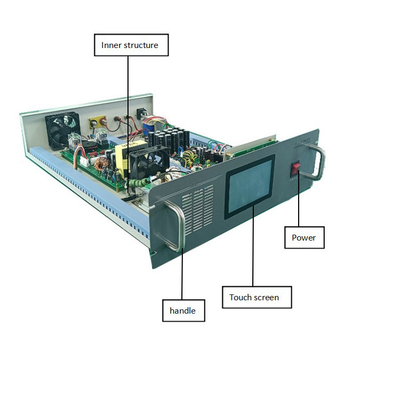

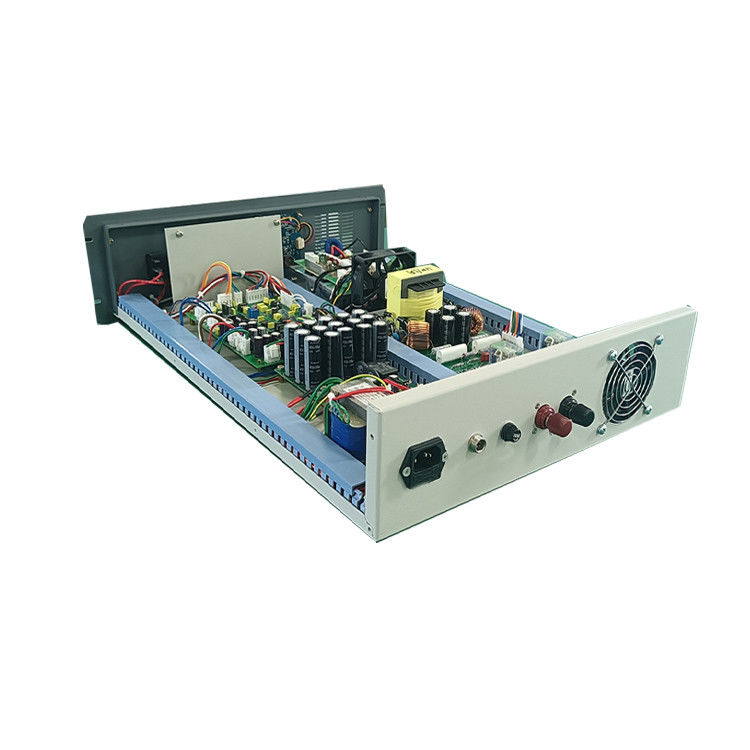

3,POWER SUPPLY DETAIL
