30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components
  • 30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components
  • 30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components
  • 30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components
  • 30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components
  • 30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components

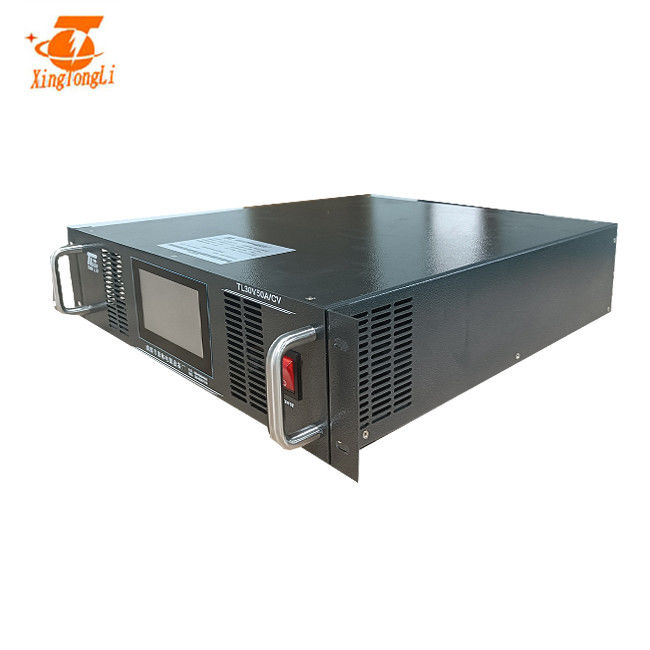

30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number XTL30-50CVC
Product Details
Input Voltage:
220V
Output Voltage:
30v
Output Current:
50A Max
Application 1:
Battery And Capacitance Charging Equipment
Application 2:
Motor And Controller Test
Application 3:
Testing And Aging Of Electronic Components
Type:
AC To DC
Cooling:
Air Cooling
Output Type:
Single
Display:
Touch Screen
Name:
30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components
PLC Interface:
RS485
Highlight:

50A Programmable DC Power Supply

,

30v DC Power Supply

,

Testing And Aging Electroplating Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD1000~14000USD
Packaging Details
Wooden case 505*430*282mm
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 SET/month
Product Description

30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components

I. Technical Data Sheet

Model XTL30V-50A
AC Input Single phases 220VAC
Input Voltage Range 220VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~30VDC
Output current 0~50A
Output Power 1500W
Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension L483*W430*H90(MM)
Net Weight/Gross Weight 13KG/15KG





2. INTRODUCTION

1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.

2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.

3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

3,POWER SUPPLY DETAIL

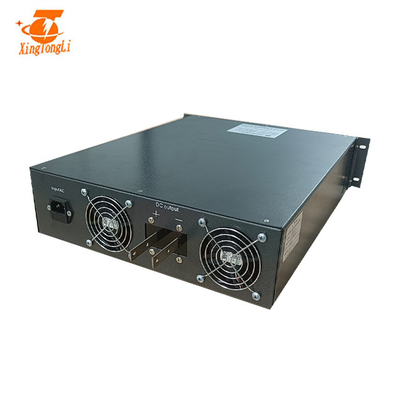

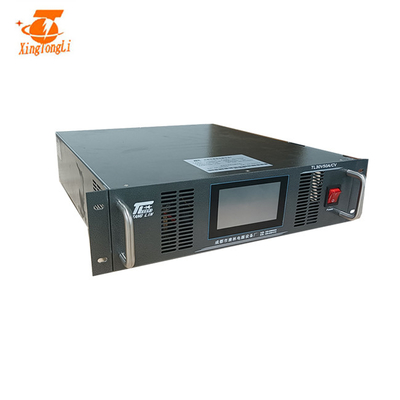

30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components 0

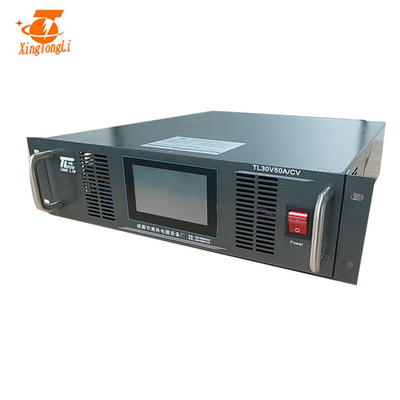

30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components 1

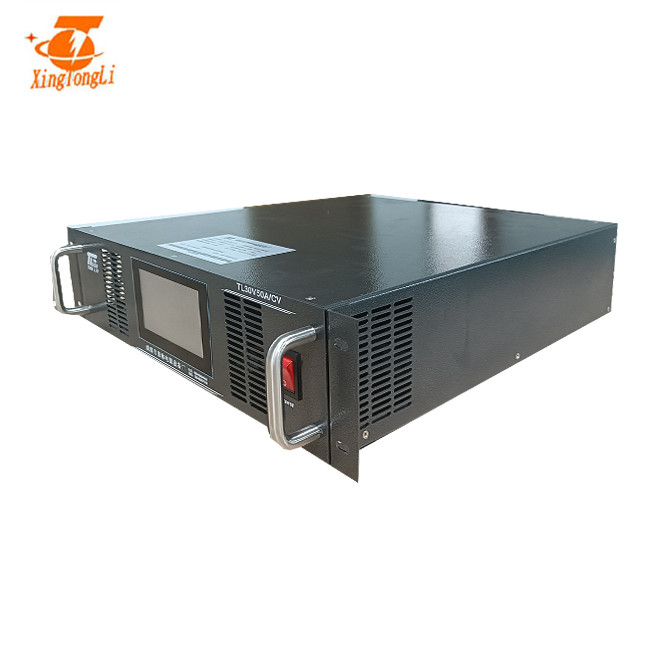

30v 50A Programmable DC Power Supply For Testing And Aging Of Electronic Components 2
