I40V 7000A Pulse Power Supply Electropolishing IGBT Based Rectifier

All Category

Electrocoagulation Power Supply

High Frequency Switching Power Supply

I40V 7000A Pulse Power Supply Electropolishing IGBT Based Rectifier

Brand Name:	xingtongli
Model Number:	GKD40-7000CVC
MOQ:	1 unit
Price:	30000$ ~48000$
Packaging Details:	Single wooden case packing size:141510602180mm Weight: 960kg
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE RoHS

Product Name:

40V 7000A PULSE POWER SUPPLY

Input Voltage:

AC 380V

Phase:

3 Phase

Output Voltage:

DC 0~40v Adjustable

Output Current:

DC 0~7000A Adjustable

Work Mode:

CC /CV

Size:

1415*1060*2180mm

Weight:

800kg

Color:

Supply Ability:

100units/month

Highlight:

7000A Pulse Power Supply

Electropolishing Pulse Power Supply

IGBT Based Rectifier

Product Description

40V 7000A PULSE POWER SUPPLY electropolishing

description:

Electrolytic polishing refers to the finishing process in which metal products undergo special anodic treatment in a certain composition solution to obtain a smooth and bright surface. It can be used to prepare the surface of the product before electroplating, it can also be used for the finishing of the surface after plating, and it can also be used as an independent finishing method for the metal surface.

Specification

SPECIFICATIONS FOR GKD40-7000CVC
Input AC	480V±10%	3 phase	50/60Hz
Output DC	Volt	0~40V Adjustable
	Current	0~7000A Adjustable
	Power	280KW
	Efficiency	>85%
	output Frequency	40KHz fixed
	output ripple	5%
Protection	Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection
Working Condition (Temperature)	-10℃~50℃	Control mode	Panel control Remote control
Net weight	800kg	Working mode	Constant Voltage(CV) Constant Current(CC)
Dimension(mm)	141510602180mm	Cooling way	water cooling

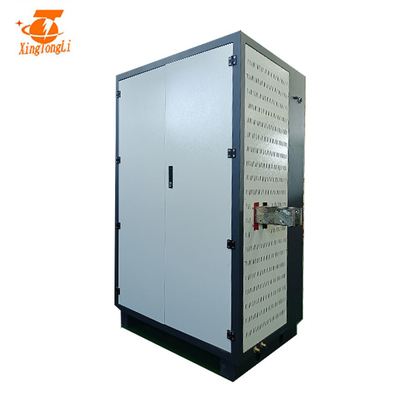

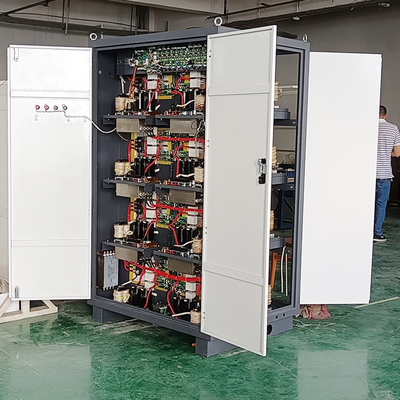

40V 7000A IGBT electropolishing rectifier picture:

I40V 7000A Pulse Power Supply Electropolishing IGBT Based Rectifier 0

I40V 7000A Pulse Power Supply Electropolishing IGBT Based Rectifier 1

40V 7000A IGBT electropolishing rectifier Features

Cabinet:

Cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transformer:

adopts amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times

Board :

all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

IGBT capacity expanded 3 times,make the power supply more reliable

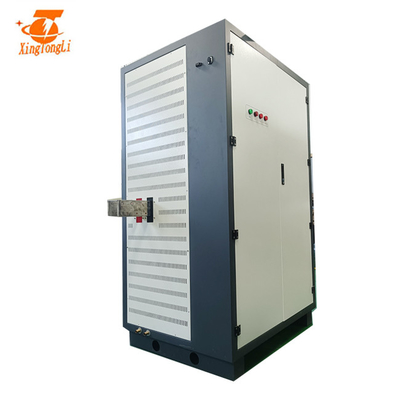

40V 7000A IGBT electropolishing rectifier Installation

I40V 7000A Pulse Power Supply Electropolishing IGBT Based Rectifier 2

1, Placing rectifier and keep the body stability; ensure good ventilation.

2, Checking anodizing rectifier out cover if loosing.

3, Connecting shell to ground to prevent static electricity.

4, Conecting the AC input wire

5, Connecting the DC output copper bars

6, Connecting the rectifier remote control box,if local control ,skip this step

7, Turn on air switch, then the fan starts to rotate and the power indicator light.

8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.

9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.

10, Disconnect the air switch, turn off the rectifier

produce process :

From the beginning of the raw material to the selection, to the assembly, and finally commissioning. We will enforce the standards strictly. Before package, 24V 125A dc single output switching power supply with CE will be check again to ensure that it works normally.

I40V 7000A Pulse Power Supply Electropolishing IGBT Based Rectifier 3
