High Frequency Switching Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE RoHS |
| Model Number | GKD600-3CVC |
high Voltage 600V 3A Dc Power Supply Lab Overvoltage Protection Stabilized Voltage Constant Current
PART 1: FEATURES
(1) Input voltage (on demand)
Single-phase AC220V/AC110V + / - 15%; 50 hz 60 hz
Three-phase AC380V/AC220V + / - 15%; 50 hz 60 hz
(2) The output voltage can be an adjustable range (0 ~ 3000V).
(3) The output constant current value can be adjusted range (0 ~ 2000A).
(4) Adjustment rate of source voltage: stable pressure is less than 0.5%; Load adjustment rate: stable pressure is less than 1%; Constant flow is less than 2%.
(5) Ripple voltage: total ripple voltage Vpp is less than 2%; Machine efficiency: > 86%.
(6) Number display: output voltage: display accuracy plus or minus 1.2%; Output current: display accuracy plus or minus 1.5%.
(7) The output voltage is overcharged: the maximum output is less than 2%.
(8) Low insulation resistance: the input - output:≥20 MΩ; Input - casing: ≥20 MΩ; output - casing: ≥20 MΩ.
(9) Strength of insulation: input - output: AC1500V, 10mA, 1 minute.
(10) Input - chassis: AC1500V, 10mA, 1 minute;
(11) Output - case: AC1500V, 10mA, 1 minute.
(12) Low engine overheating protection threshold temperature: 75 ~ 85 ℃.
(13) Average failure time: greater than 50000h.
PART 2: CHARACTERISTIC
1. small size, lightweight, high efficiency (89% above), wide isolation, wide input range (maximum 20%).
2. Provide protection against surge protection and avoid the instantaneous current overshoot.
3. The output voltage current can be adjusted in a wide range so that users can use it flexibly.
4. The output voltage current and high brightness digital tube display, clean and intuitive.
5. The reliability of the whole machine is improved by overpressure, overflow, under pressure, overheat, etc.
6. In order to achieve higher power output, automatic equal-flow technology can be used for multi-machine parallel expansion.
PART 3: SPECIFICATION
| Brand | IDEALPLUSING |
| Model | IPS-ATDY15001 |
| AC Input | Single phases 220VAC |
| Input Voltage Range | 220VAC±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0~1500VDC |
| Output current | 0~1A |
| Output Power | 1500W |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Remote Adjustment | (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC |
| Remote Display | (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC |
| Output Over-Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
| Output Over Load Protection | Overload, current limit, constant current output |
| Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |
| Voltage Setting | 10-turn precision potentiometer |
| Current Setting | 10-turn precision potentiometer |
| Output Polarity | Output Positive(+) negative(- ) Can be grounded at will |
| Heat Dissipation Way | Forced fan cooling |
| Work Conditions | Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH |
| Storage Conditions | Temperature:-20℃~70℃; Humidity: 10%~90%RH |
| Machine Dimension | L483*W430*H90(MM) |
| Net Weight/Gross Weight | 13KG/15KG |
PART 4: CUSTOMIZE
About the dc power supply high voltage, We can customize different kind of specification according to your request. Such as:
(1)Input voltage: 1 phase 110Vac/220Vac or 3 phases 380Vac/480Vac;
(2)Output voltage: 0-20000V variable or appointed;
(3)Output current: 0-10000A variable or appointed.
(4)Serial port: RS232,RS485,timing switch.

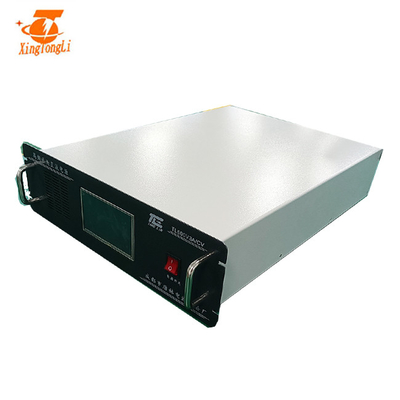

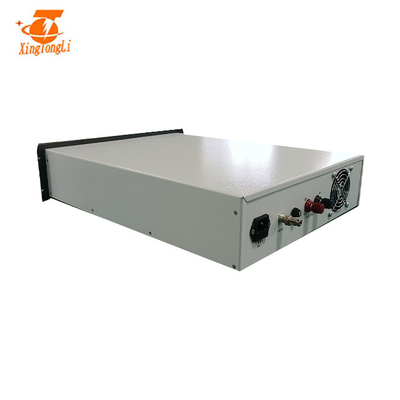

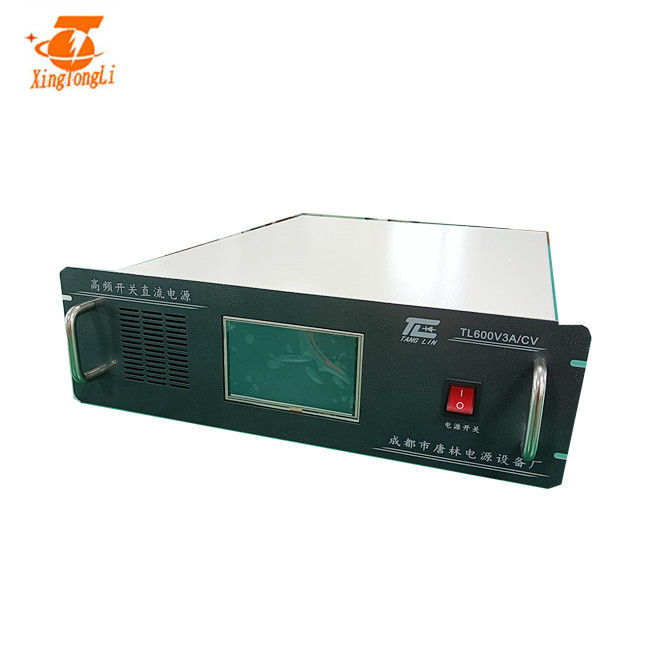

PART 5: PICTURE
