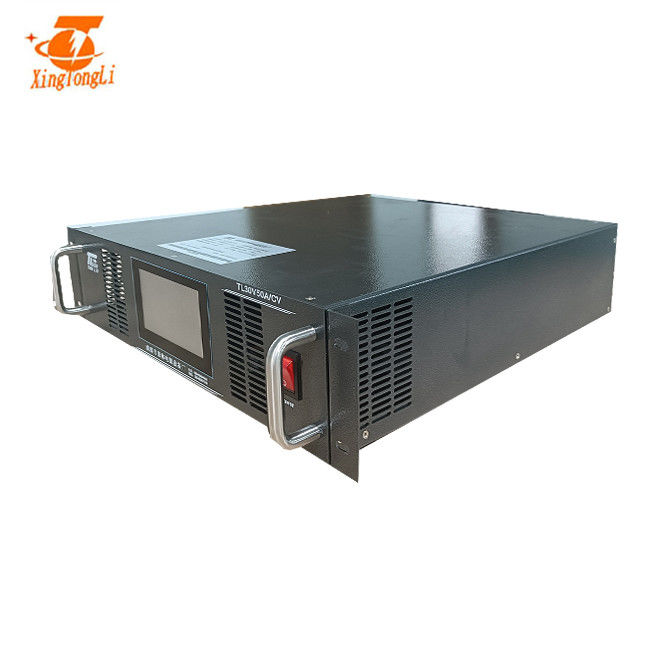

High Voltage Programmable Dc Power Supply 30KV
  • High Voltage Programmable Dc Power Supply 30KV
  • High Voltage Programmable Dc Power Supply 30KV
  • High Voltage Programmable Dc Power Supply 30KV
  • High Voltage Programmable Dc Power Supply 30KV

High Voltage Programmable Dc Power Supply 30KV

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number TL30000-1mA
Product Details
Input Voltage:
Output Voltage:
30000V Max
Output Current:
1mA Max
Application 1:
Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2:
Motor And Controller Test
Application 3:
Testing And Aging Of Electronic Components
Air Cooling
Output Type:
Touch Screen
30000W 1000V 1A High Voltage Power Supply For Laboratory
PLC Interface:
RS485 RS232
High Light:

Programmable Dc Power Supply 30KV


50Hz Programmable Dc Power Supply


30000VDC Programmable Power Supply

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden case 505*430*282mm
Delivery Time
5~8 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 SET/month
Product Description

Programmable 30KV High voltage power supply

I. Technical Data Sheet

Model TL30000V-1mA
AC Input Single phases 220VAC
Input Voltage Range 220VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~30000VDC
Output current 0~1mA
Output Power



Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension L483*W430*H90(MM)
Net Weight/Gross Weight 13KG/15KG




1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.

2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.

3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

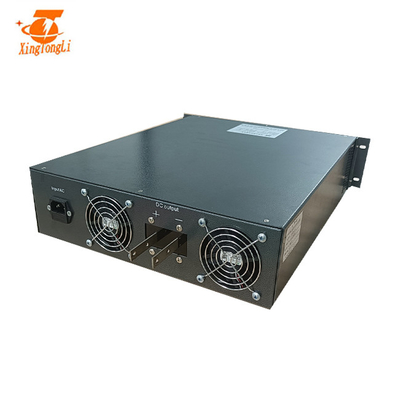

High Voltage Programmable Dc Power Supply 30KV 0

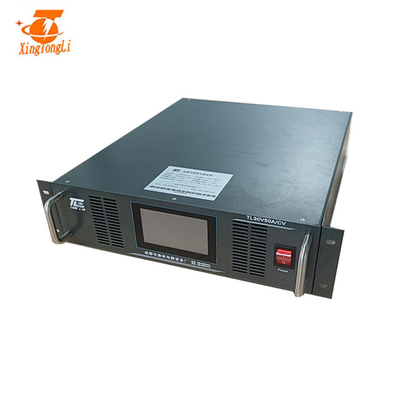

High Voltage Programmable Dc Power Supply 30KV 1

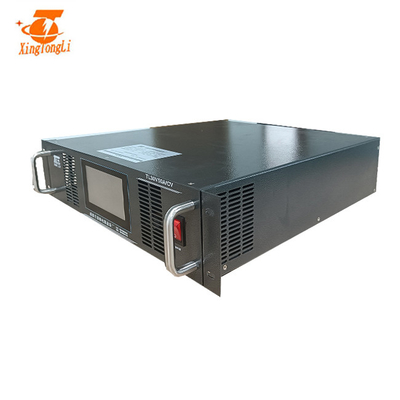

High Voltage Programmable Dc Power Supply 30KV 2



Electrostatic spraying, electrostatic spinning, electrostatic dusting, electrostatic fabric, electrophoresis, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.


Our service


Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered




1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
