Programmable Dc Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE RoHS |
| Model Number | TL1000-10A |
I. Technical Data Sheet
| Model |
TL1000V-10A |
| AC Input | Single phases 220VAC |
| Input Voltage Range | 220VAC±15% |
| Input frequency | 50Hz/60Hz |
| Output voltage | 0~1000VDC |
| Output current | 0~10A |
| Output Power |
10000W |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Remote Adjustment | (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC |
| Remote Display | (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC |
| Output Over-Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
| Output Over Load Protection | Overload, current limit, constant current output |
| Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |
| Voltage Setting | 10-turn precision potentiometer |
| Current Setting | 10-turn precision potentiometer |
| Output Polarity | Output Positive(+) negative(- ) Can be grounded at will |
| Heat Dissipation Way | Forced fan cooling |
| Work Conditions | Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH |
| Storage Conditions | Temperature:-20℃~70℃; Humidity: 10%~90%RH |
| Machine Dimension | 600*400*250mm |
| Net Weight/Gross Weight | 50KG |
2. FEATURE: 1000vdc 10kw switching mode 0-10a 0-1000v dc power supply with RS485
1. Output voltage:0-1000V,Current optional:0-30A.
2. Utilize PWM modulation,High gain amplifier circuit design, core components, all imported, to ensure long-term full load operation is stable and reliable.
3. Small size, light weight, 19-inch installation size, suitable for work surface and rack installation, more than 20 kW can be racked.
4. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.
5. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.
6. Intelligent, can be connected with a PC to form a PC monitoring intelligent power supply
7. RS232/RS485 digital interface,0-10V/4-20mA analog interface,
MOUDBUS-RTU standard communication protocol.
8. Can custom for you.

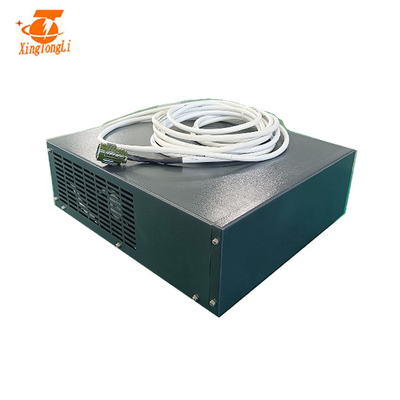

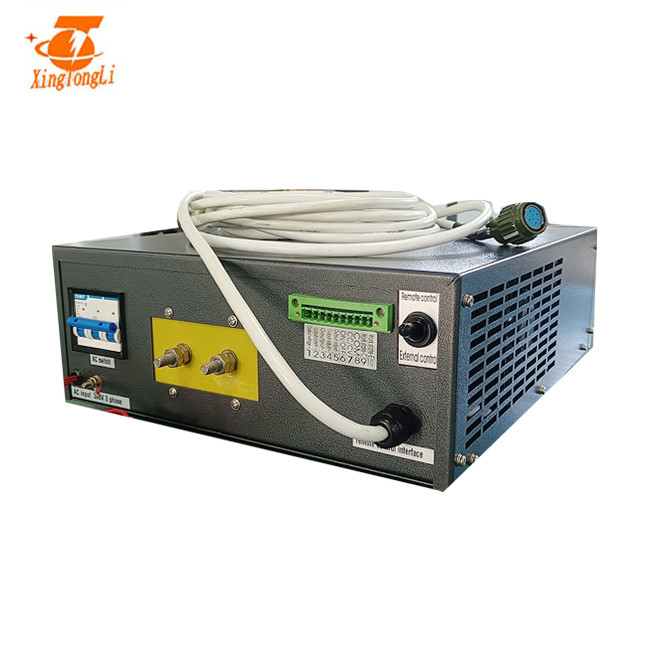

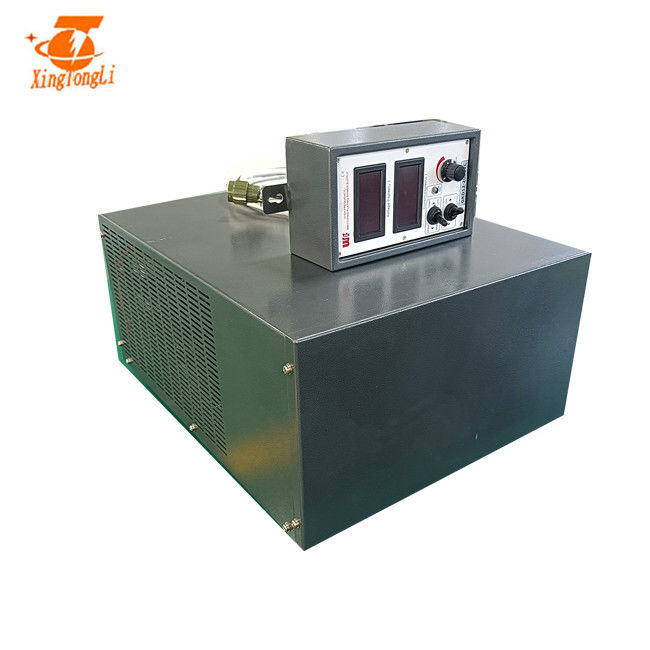

3, POWER SUPPLY DETAIL
4,POWER SUPPLY APPLICATION
Electrostatic spraying, electrostatic spinning, electrostatic dusting, electrostatic fabric, electrophoresis, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.
