270V 80A High Voltage Low Ripple DC Power Supply For Capacotor Testing

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number TL270-80A
Minimum Order Quantity 1 SET
Price USD3000~6700USD
Packaging Details Wooden case 80*73*110cm
Delivery Time 15~20 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 SET/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Input Voltage 380V Output Voltage 270V Max
Output Current 80A Max Application 1 Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2 Capacitor Testing Application 3 Testing And Aging Of Electronic Components
Type AC To DC Cooling Air Cooling
Output Type Single Display Touch Screen
Name 270V 80A High Voltage Low Ripple DC Power Supply PLC Interface RS485 RS232
High Light

270V Low Ripple DC Power Supply


80A High Voltage DC Power Supply


Capacotor Testing 270V Dc Power Supply

Leave a Message
Product Description

270V 80A High Voltage Low Ripple DC Power Supply For Capacotor Testing

I. Technical Data Sheet

Model TL270V-80A
AC Input Three phases 380VAC
Input Voltage Range 380VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~270VDC
Output current



Output Power


Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension 680*520*740mm
Net Weight/Gross Weight 80KG




1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.

2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.

3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

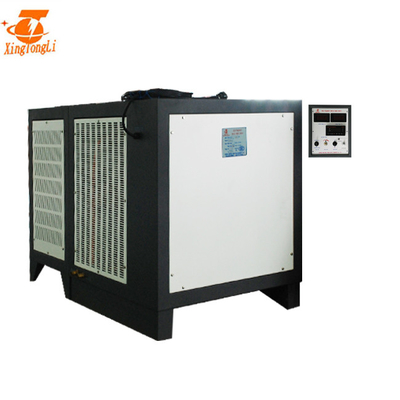

270V 80A High Voltage Low Ripple DC Power Supply For Capacotor Testing 0

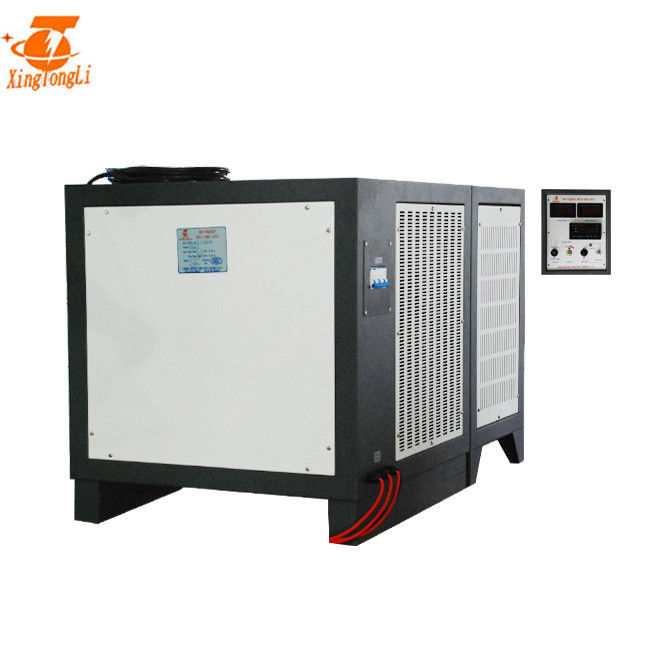

270V 80A High Voltage Low Ripple DC Power Supply For Capacotor Testing 1

Conduct withstand voltage test for tantalum capacitor and ceramic capacitor. In order to ensure reliability, the capacitor test requires the use of a high-voltage power supply that can apply a higher voltage than the standard power supply, because the test is carried out at a voltage of 1.5 to 2 times the rated voltage to ensure reliability.
In the leakage current measurement test, the amount of current flowing when a certain voltage is applied is measured. In order to measure the leakage current, apply a high voltage using a high voltage power supply and measure the leakage current during application.


270V 80A High Voltage Low Ripple DC Power Supply For Capacotor Testing 2
