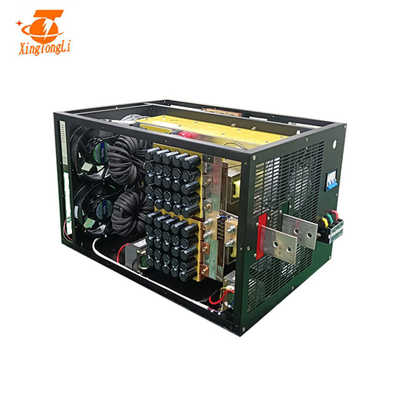

High Voltage Precision DC Power Supplies 80A 380V
|Place of Origin||China|
|Minimum Order Quantity||1 SET|
|Packaging Details||Wooden case 80*73*110cm|
|Delivery Time||15~20 working days|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability||100 SET/month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Input Voltage||380V||Output Voltage||270V Max|
|Output Current||80A Max||Application 1||Electrophoresis, Capacitor Charging, Aging Of Electronic Components|
|Application 2||Capacitor Testing||Application 3||Testing And Aging Of Electronic Components|
|Type||AC To DC||Cooling||Air Cooling|
|Output Type||Single||Display||Touch Screen|
|Name||270V 80A High Voltage Low Ripple DC Power Supply||PLC Interface||RS485 RS232|
High Voltage Precision DC Power Supplies,
380V Precision DC Power Supplies,
80A High Voltage Dc Power Supply
270V 80A high voltage low ripple DC power supply
I. Technical Data Sheet
|AC Input||Three phases 380VAC|
|Input Voltage Range||380VAC±15%|
|Ripples and Noises||≤0.5%+10mVrms|
|Voltage Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Display Format||0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V|
|Current Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Remote Adjustment||(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC|
|Remote Display||(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC|
|Output Over-Voltage Protection||Built-in O.V.P. protection, protection limited value is rated +5%|
|Output Over Load Protection||Overload, current limit, constant current output|
|Over Temperature Protection||Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature|
|Voltage Setting||10-turn precision potentiometer|
|Current Setting||10-turn precision potentiometer|
|Output Polarity||Output Positive(+) negative(- ) Can be grounded at will|
|Heat Dissipation Way||Forced fan cooling|
|Work Conditions||Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH|
|Storage Conditions||Temperature:-20℃~70℃; Humidity: 10%~90%RH|
|Net Weight/Gross Weight||80KG|
1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.
2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.
3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

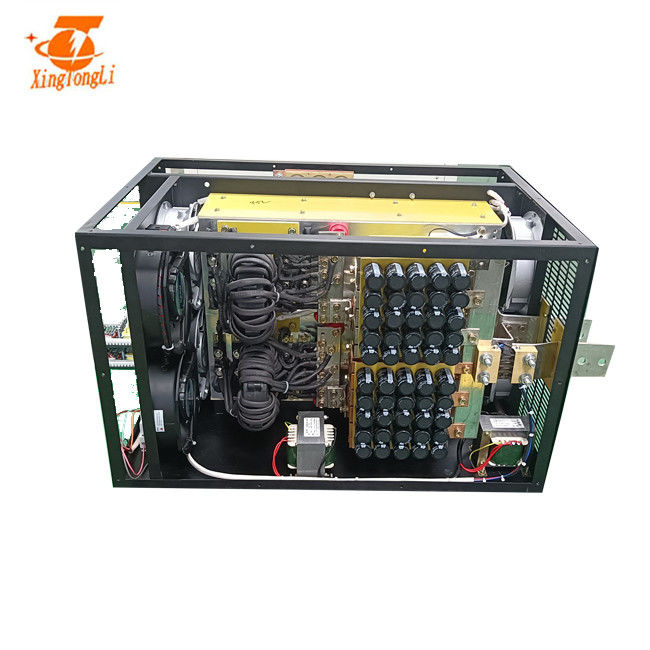

3,POWER SUPPLY DETAIL
Conduct withstand voltage test for tantalum capacitor and ceramic capacitor. In order to ensure reliability, the capacitor test requires the use of a high-voltage power supply that can apply a higher voltage than the standard power supply, because the test is carried out at a voltage of 1.5 to 2 times the rated voltage to ensure reliability.
In the leakage current measurement test, the amount of current flowing when a certain voltage is applied is measured. In order to measure the leakage current, apply a high voltage using a high voltage power supply and measure the leakage current during application.
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
