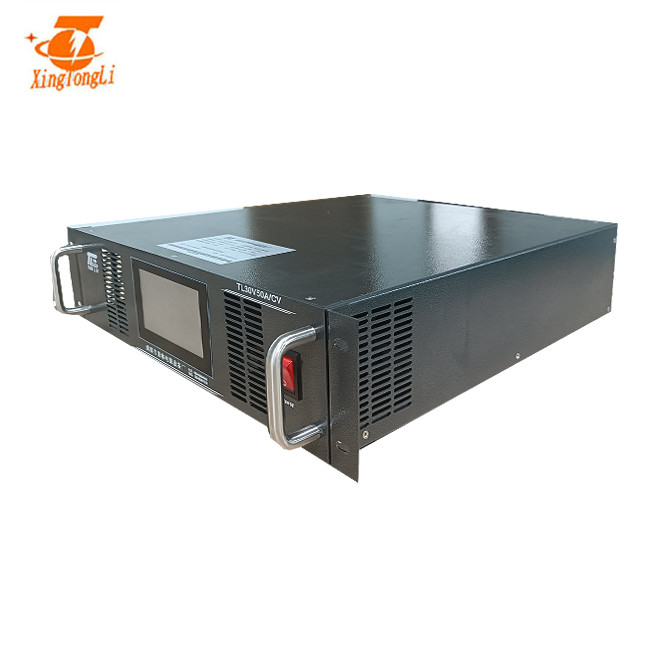

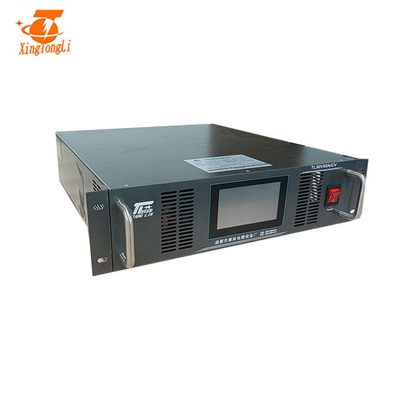

Lab Using High Voltage DC Power Supply 30V 50A
  • Lab Using High Voltage DC Power Supply 30V 50A
  • Lab Using High Voltage DC Power Supply 30V 50A
  • Lab Using High Voltage DC Power Supply 30V 50A

Lab Using High Voltage DC Power Supply 30V 50A

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number TL2kv-1A
Product Details
Input Voltage:
220V
Output Voltage:
30V Max
Output Current:
50A Max
Application 1:
Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2:
Capacitor Testing
Application 3:
Testing And Aging Of Electronic Components
Type:
AC To DC
Cooling:
Air Cooling
Output Type:
Single
Display:
Touch Screen
Name:
0~30v Rack Mount High Voltage AC-DC Power Supply
PLC Interface:
RS485 RS232
High Light:

30V High Voltage DC Power Supply

,

50A High Voltage DC Power Supply

,

Lab DC Power Supply 220V

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD3000~6700USD
Packaging Details
Wooden case 430*360*140mm
Delivery Time
15~20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 SET/month
Product Description

30V 50A lab using high voltage DC power supply

 are designed as true programmable DC supplies that are particularly suitable in precise and accurate continuous DC applications where a stable and well controlled output voltage and current are essential. These supplies are fully programmable from 0.1% to 100% of rated voltage/current, with high accuracy and tight ripple/regulation performance.

I. Technical Data Sheet

Model

TL30V-50A

AC Input Three phases 380VAC
Input Voltage Range 220VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~30VDC
Output current

0~50A

Output Power

2KW

Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension 430*360*140mm
Net Weight/Gross Weight 12KG





2. INTRODUCTION

Input single-phase over input voltage range 220VVAC

The output can be grounded and operated as a positive or negative supply.

Embedded microcontroller control.

Front-panel digital encoders provide high-resolution local adjustment of voltage and current programs. Integrated RS-232, RS-485, USB and optional Ethernet communications provide 12-bit precision for remote control programs and monitors.

Remote analog interface. User selection - table 0-5V or 0-10V simulation program - ming and monitor.

Field can be bundled and operated in parallel. Up to 4 identical power supplies can be run in parallel with user-configurable mains and active current sharing

3,POWER SUPPLY DETAIL

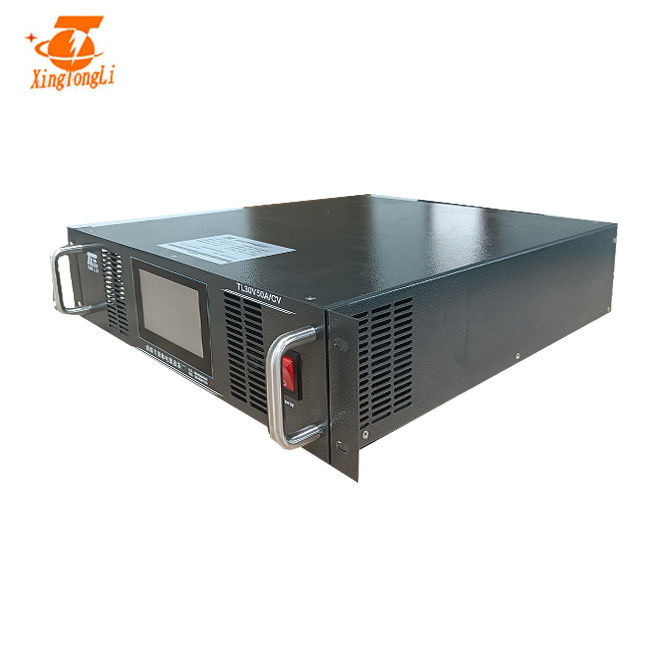

Lab Using High Voltage DC Power Supply 30V 50A 0

Lab Using High Voltage DC Power Supply 30V 50A 1



Conduct withstand voltage test for tantalum capacitor and ceramic capacitor. In order to ensure reliability, the capacitor test requires the use of a high-voltage power supply that can apply a higher voltage than the standard power supply, because the test is carried out at a voltage of 1.5 to 2 times the rated voltage to ensure reliability.
In the leakage current measurement test, the amount of current flowing when a certain voltage is applied is measured. In order to measure the leakage current, apply a high voltage using a high voltage power supply and measure the leakage current during application.



Lab Using High Voltage DC Power Supply 30V 50A 2
