800V 10mA High Voltage DC Power Supply For Test System
|Place of Origin||China|
|Minimum Order Quantity||1 SET|
|Packaging Details||Wooden case 430*360*140mm|
|Delivery Time||15~20 working days|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability||100 SET/month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Input Voltage||220V||Output Voltage||800V Max|
|Output Current||10mA Max||Application 1||Electrophoresis, Capacitor Charging, Aging Of Electronic Components|
|Application 2||Capacitor Testing||Application 3||Testing And Aging Of Electronic Components|
|Type||AC To DC||Cooling||Air Cooling|
|Output Type||Single||Display||Touch Screen|
|Name||800V 10mA High Voltage DC Power Supplies For Test System||PLC Interface||RS485 RS232|
10mA High Voltage DC Power Supply,
800V High Voltage DC Power Supply,
RoHS Test System DC Power Supply
800V 10mA High Voltage DC power supplies for test system
are designed as true programmable DC supplies that are particularly suitable in precise and accurate continuous DC applications where a stable and well controlled output voltage and current are essential. These supplies are fully programmable from 0.1% to 100% of rated voltage/current, with high accuracy and tight ripple/regulation performance.
I. Technical Data Sheet
|AC Input||Single phases 380VAC|
|Input Voltage Range||220VAC±15%|
|Ripples and Noises||≤0.5%+10mVrms|
|Voltage Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Display Format||0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V|
|Current Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Remote Adjustment||(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC|
|Remote Display||(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC|
|Output Over-Voltage Protection||Built-in O.V.P. protection, protection limited value is rated +5%|
|Output Over Load Protection||Overload, current limit, constant current output|
|Over Temperature Protection||Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature|
|Voltage Setting||10-turn precision potentiometer|
|Current Setting||10-turn precision potentiometer|
|Output Polarity||Output Positive(+) negative(- ) Can be grounded at will|
|Heat Dissipation Way||Forced fan cooling|
|Work Conditions||Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH|
|Storage Conditions||Temperature:-20℃~70℃; Humidity: 10%~90%RH|
|Net Weight/Gross Weight||12KG|
Input single-phase over input voltage range 220VVAC
The output can be grounded and operated as a positive or negative supply.
Embedded microcontroller control.
Front-panel digital encoders provide high-resolution local adjustment of voltage and current programs. Integrated RS-232, RS-485, USB and optional Ethernet communications provide 12-bit precision for remote control programs and monitors.
Remote analog interface. User selection - table 0-5V or 0-10V simulation program - ming and monitor.
Field can be bundled and operated in parallel. Up to 4 identical power supplies can be run in parallel with user-configurable mains and active current sharing

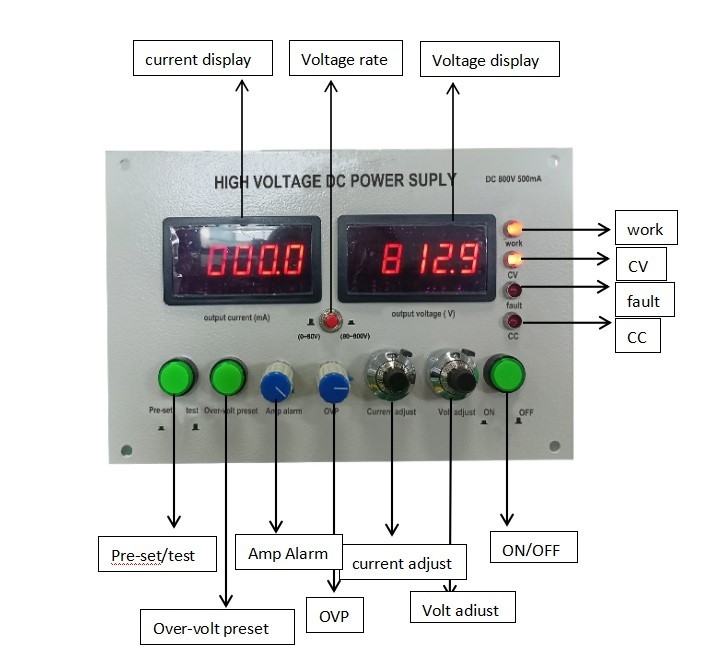

3,POWER SUPPLY DETAIL
Conduct withstand voltage test for tantalum capacitor and ceramic capacitor. In order to ensure reliability, the capacitor test requires the use of a high-voltage power supply that can apply a higher voltage than the standard power supply, because the test is carried out at a voltage of 1.5 to 2 times the rated voltage to ensure reliability.
In the leakage current measurement test, the amount of current flowing when a certain voltage is applied is measured. In order to measure the leakage current, apply a high voltage using a high voltage power supply and measure the leakage current during application.
