Industry Adjustable High Voltage Dc Power Supply 50kv 2mA 3mA 6mA

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number TL5-10kv-2mA
Minimum Order Quantity 1 SET
Price USD3000~6700USD
Packaging Details Wooden case 430*360*140mm
Delivery Time 15~20 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 SET/month
Product Details
Input Voltage 220V Output Voltage 5KV Max
Output Current 2mA Max Application 1 Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2 Capacitor Testing Application 3 Testing And Aging Of Electronic Components
Type AC To DC Cooling Air Cooling
Output Type Single Display Touch Screen
Name Industry Adjustable High Voltage Dc Power Supply 50kv 2mA 3mA 6mA PLC Interface RS485 RS232
High Light

High Voltage Dc Power Supply 50kv

,

2mA High Voltage Dc Power Supply

,

Industry Adjustable Dc Power Supply 6mA

Leave a Message
Product Description

Industry adjustable high voltage dc power supply 50kv 2mA 3mA 6mA

I. Technical Data Sheet

Model

TL5KV-2mA

AC Input Three phases 380VAC
Input Voltage Range 220VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~5KVDC
Output current

0~2mA

Output Power

2KW

Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension 430*360*140mm
Net Weight/Gross Weight 12KG





2. INTRODUCTION

Input single-phase over input voltage range 220VVAC

The output can be grounded and operated as a positive or negative supply.

Embedded microcontroller control.

Front-panel digital encoders provide high-resolution local adjustment of voltage and current programs. Integrated RS-232, RS-485, USB and optional Ethernet communications provide 12-bit precision for remote control programs and monitors.

Remote analog interface. User selection - table 0-5V or 0-10V simulation program - ming and monitor.

Field can be bundled and operated in parallel. Up to 4 identical power supplies can be run in parallel with user-configurable mains and active current sharing

3,POWER SUPPLY DETAIL

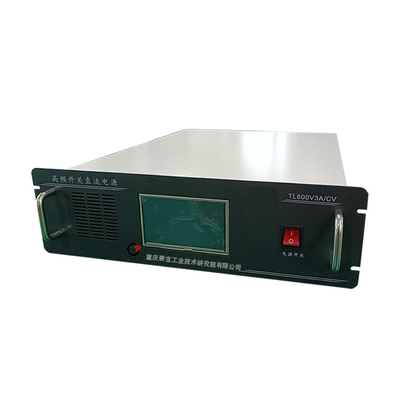

Industry Adjustable High Voltage Dc Power Supply 50kv 2mA 3mA 6mA 0

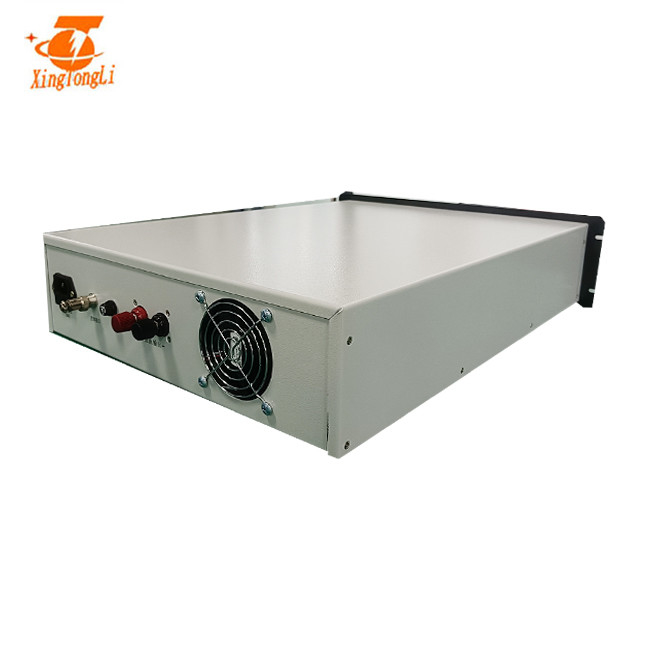

Industry Adjustable High Voltage Dc Power Supply 50kv 2mA 3mA 6mA 1

Conduct withstand voltage test for tantalum capacitor and ceramic capacitor. In order to ensure reliability, the capacitor test requires the use of a high-voltage power supply that can apply a higher voltage than the standard power supply, because the test is carried out at a voltage of 1.5 to 2 times the rated voltage to ensure reliability.
In the leakage current measurement test, the amount of current flowing when a certain voltage is applied is measured. In order to measure the leakage current, apply a high voltage using a high voltage power supply and measure the leakage current during application.

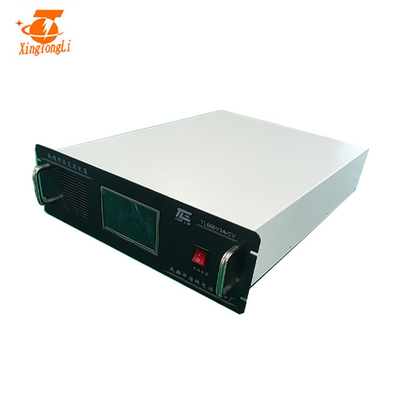

Industry Adjustable High Voltage Dc Power Supply 50kv 2mA 3mA 6mA 2



Our service



Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered





FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
