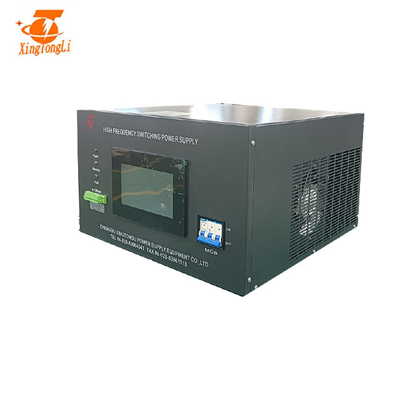

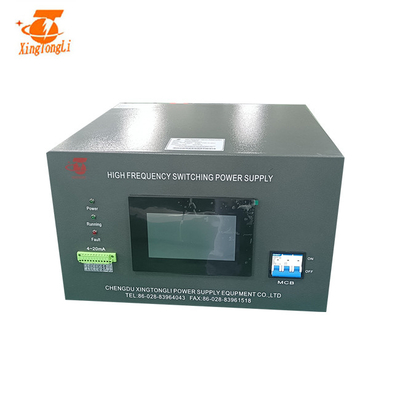

36V 250A High Precision Programmable Dc Power Supply
|Place of Origin||China|
|Minimum Order Quantity||1 SET|
|Packaging Details||Wooden case 68*61*52cm|
|Delivery Time||10~15 working days|
|Payment Terms||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability||100 SET/month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Input Voltage||415V||Output Voltage||36V|
|Output Current||0~250A||Application 1||Electrophoresis, Capacitor Charging, Aging Of Electronic Components|
|Application 2||Motor And Controller Test||Application 3||Testing And Aging Of Electronic Components|
|Type||AC To DC||Cooling||Air Cooling|
|Output Type||Single||Display||Touch Screen|
|Name||36V 250A High Precision Programmable Dc Power Supply||PLC Interface||RS485 RS232|
36V 250A Programmable Dc Power Supply,
9KW Programmable Dc Power Supply
36V 250A High precision Programmable Dc Power Supply
I. Technical Data Sheet
|AC Input||Three phases 415VAC|
|Input Voltage Range||415VAC|
|Ripples and Noises||≤0.5%+10mVrms|
|Voltage Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Display Format||0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V|
|Current Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Remote Adjustment||(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC|
|Remote Display||(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC|
|Output Over-Voltage Protection||Built-in O.V.P. protection, protection limited value is rated +5%|
|Output Over Load Protection||Overload, current limit, constant current output|
|Over Temperature Protection||Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature|
|Voltage Setting||10-turn precision potentiometer|
|Current Setting||10-turn precision potentiometer|
|Output Polarity||Output Positive(+) negative(- ) Can be grounded at will|
|Heat Dissipation Way||Forced fan cooling|
|Work Conditions||Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH|
|Storage Conditions||Temperature:-20℃~70℃; Humidity: 10%~90%RH|
|Net Weight/Gross Weight||13KG/15KG|
1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.
2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.
3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

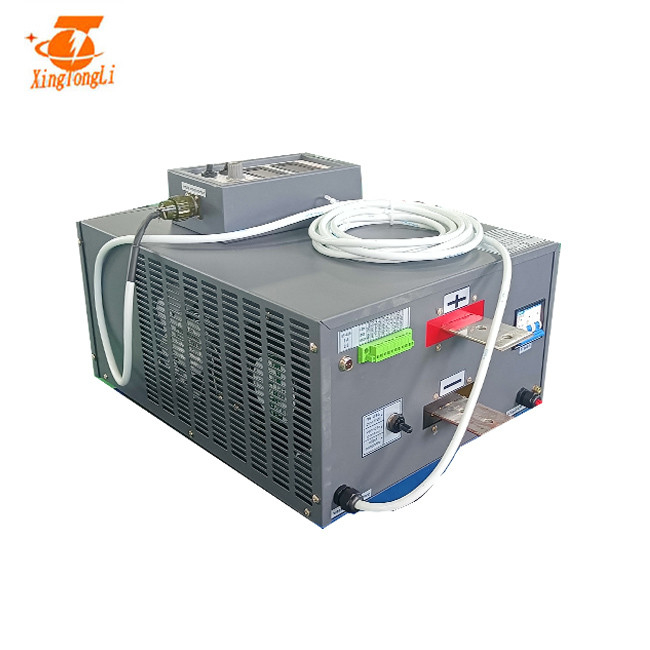

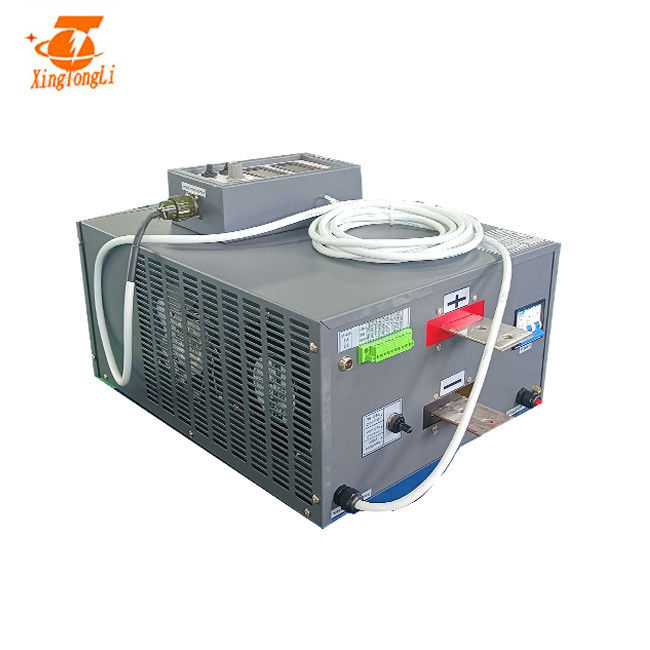

3, POWER SUPPLY DETAIL
4,POWER SUPPLY APPLICATION
Electrostatic spraying, electrostatic spinning, electrostatic dusting, electrostatic fabric, electrophoresis, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
