high voltage output 0-1500VDC 0- 1A variable ac dc power supply

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number TL1500-1A
Minimum Order Quantity 1 SET
Price USD800~2000USD
Packaging Details Wooden case 505*430*282mm
Delivery Time 5~8 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 SET/month
Product Details
Input Voltage 220V Output Voltage 1500V
Output Current 1A Max Application 1 Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2 Motor And Controller Test Application 3 Testing And Aging Of Electronic Components
Type AC To DC Cooling Air Cooling
Output Type Single Display Touch Screen
Name High Voltage Output 0-1500VDC 0- 1A Variable Ac Dc Power Supply PLC Interface RS485 RS232
Leave a Message
Product Description

high voltage output 0-1500VDC 0- 1A variable ac dc power supply

I. Technical Data Sheet

Model TL1500V-1A
AC Input Single phases 220VAC
Input Voltage Range 220VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~1500VDC
Output current 0~1A
Output Power

1.5KW

Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension L483*W430*H90(MM)
Net Weight/Gross Weight 13KG/15KG





2. INTRODUCTION

1, This series of high voltage power supplies are specially designed for Battery and Capacitance Charging,Testing and Aging of Electronic Components, Motor and Controller Test Equipment, with a high voltage power supply.

2, Its output voltage is adjustable, with PLC RS485 interface and HMI control,with Programmable function.

3, The series power supply can also be an external potentiometer to achieve remote control of the output voltage and current, and external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, and other functions

3, POWER SUPPLY DETAIL

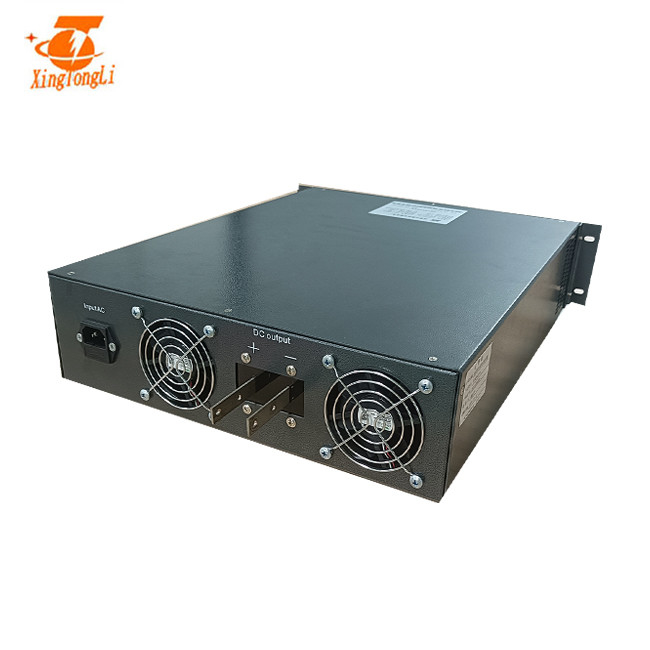

high voltage output 0-1500VDC 0- 1A variable ac dc power supply 0

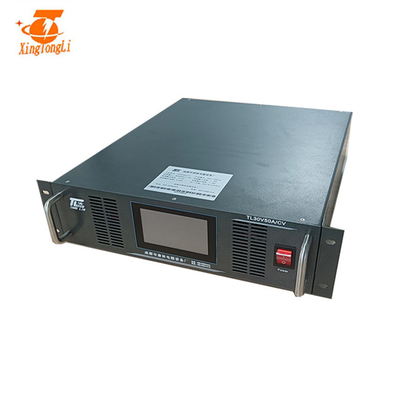

high voltage output 0-1500VDC 0- 1A variable ac dc power supply 1

high voltage output 0-1500VDC 0- 1A variable ac dc power supply 2



4,POWER SUPPLY APPLICATION



Electrostatic spraying, electrostatic spinning, electrostatic dusting, electrostatic fabric, electrophoresis, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.
