Programmable 5000A 50V DC Power Supply With RS485 HMI Control

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS
Model Number TL50-5000CVC
Minimum Order Quantity 1 SET
Price USD17000~24000USD
Packaging Details Wooden case 100x110x220cm
Delivery Time 30~45 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100 SET/month
Product Details
Input Voltage 480V 3Phase 50hz Max Input Current 425A Max
Max Input Power 294KW Application 1 Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2 Motor And Controller Test Type AC To DC
Cooling Water Cooling Output Type Single

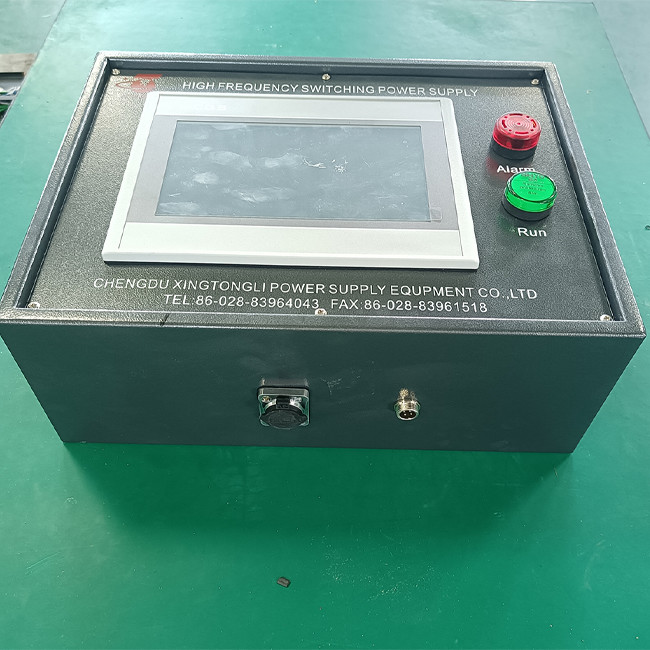

Display Touch Screen Name Programmable 5000A 50V DC Power Supply With RS485 HMI Control
PLC Interface RS485 RS232
High Light

Programmable 50V DC Power Supply

,

RS485 HMI Control DC Power Supply

,

5000A Programmable Dc Power Supply

Leave a Message
Product Description

programmable 5000A 50V DC power supply with RS485 HMI control

I. Technical Data Sheet

Model TL50-5000CVC
AC Input three phases 480VAC
Input Voltage Range 480VAC±15%
Input frequency 50Hz/60Hz
Output voltage 0~50VDC
Output current 0~5000A
Output Power

250KW

Voltage Stabilization ±1V
current stabilization ±1A
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way water cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension L950*W876*H1860(MM)
Net Weight/Gross Weight 505KG





2.  FEATURE: programmable 5000A 50V DC power supply with RS485 HMI control
1. Output voltage:0-50V,Current optional:0-5000A.


2. Utilize PWM modulation,High gain amplifier circuit design, core components, all imported, to ensure long-term full load operation is stable and reliable.


3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.

4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.

5. Intelligent, can be connected with a PC to form a PC monitoring intelligent power supply

6. RS232/RS485 digital interface,0-10V/4-20mA analog interface,

MOUDBUS-RTU standard communication protocol.

7. Can custom for you.



3,POWER SUPPLY DETAIL

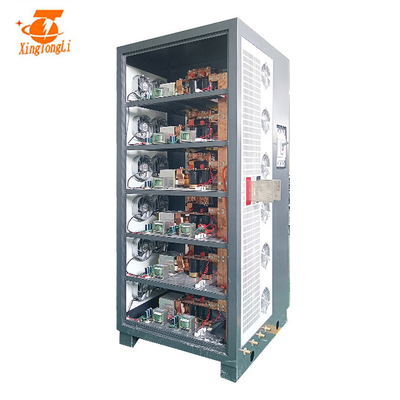

Programmable 5000A 50V DC Power Supply With RS485 HMI Control 0

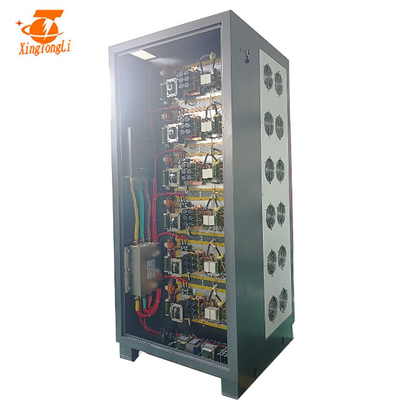

Programmable 5000A 50V DC Power Supply With RS485 HMI Control 1

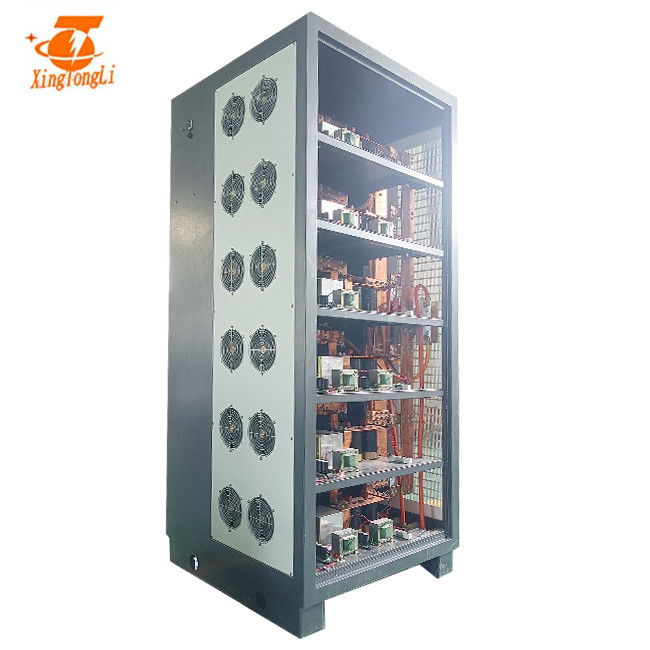

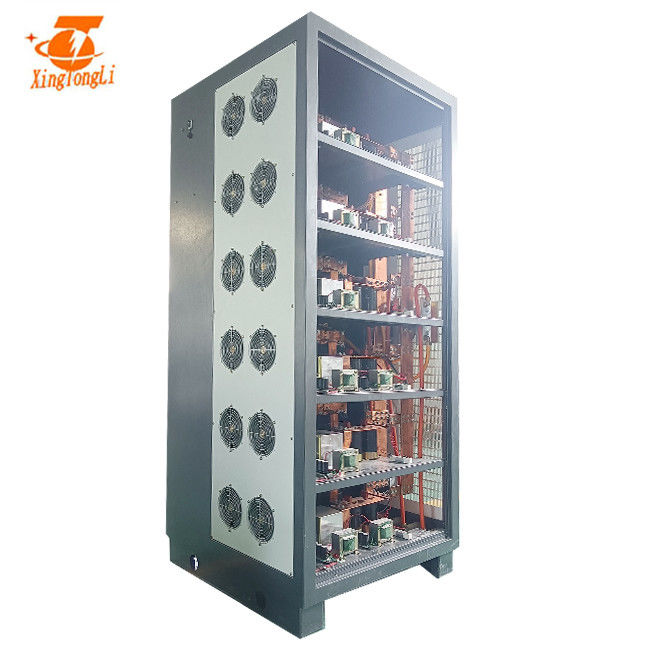

Programmable 5000A 50V DC Power Supply With RS485 HMI Control 2

4,POWER SUPPLY APPLICATION



Electroplating, Electrolysis, Polishing, Water Treatment, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.
