In many cases, hydrogen is the only solution to decarbonization and is expected to play a key role in this transition. Expanding green hydrogen is critical to achieving net zero emissions. Green hydrogen made by water electrolysis process will be added to power as an important energy carrier, because it can be made from renewable energy safely and is actually pollution-free. For us, the purpose of this rhyme is to promote a better world. By creating solutions in hydrogen, we can help customers decarbonize, from transportation to steel production, while reducing energy consumption and costs.
I. Technical Data Sheet
|AC Input||three phases 480VAC|
|Input Voltage Range||480VAC±15%|
|Ripples and Noises||≤0.5%+10mVrms|
|Voltage Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Display Format||0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V|
|Current Display Accuracy||4-digit Accuracy: ±1%+1 word (10%-100% rating)|
|Remote Adjustment||(Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC|
|Remote Display||(Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC|
|Output Over-Voltage Protection||Built-in O.V.P. protection, protection limited value is rated +5%|
|Output Over Load Protection||Overload, current limit, constant current output|
|Over Temperature Protection||Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature|
|Voltage Setting||10-turn precision potentiometer|
|Current Setting||10-turn precision potentiometer|
|Output Polarity||Output Positive(+) negative(- ) Can be grounded at will|
|Heat Dissipation Way||water cooling|
|Work Conditions||Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH|
|Storage Conditions||Temperature:-20℃~70℃; Humidity: 10%~90%RH|
|Net Weight/Gross Weight||750KG|
1. Output voltage:0-750V,Current optional:0-680A.
2. Utilize PWM modulation,High gain amplifier circuit design, core components, all imported, to ensure long-term full load operation is stable and reliable.
3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.
4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.
5. Intelligent, can be connected with a PC to form a PC monitoring intelligent power supply
6. RS232/RS485 digital interface,0-10V/4-20mA analog interface,
MOUDBUS-RTU standard communication protocol.
7. Can custom for you.

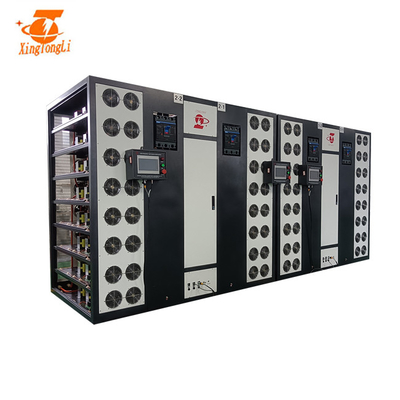

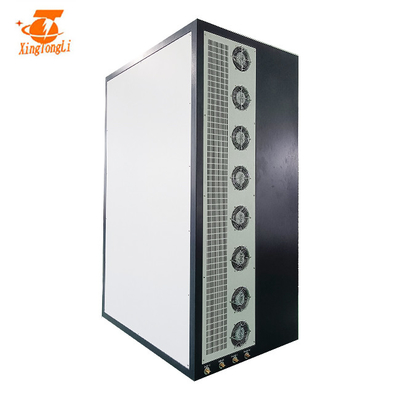

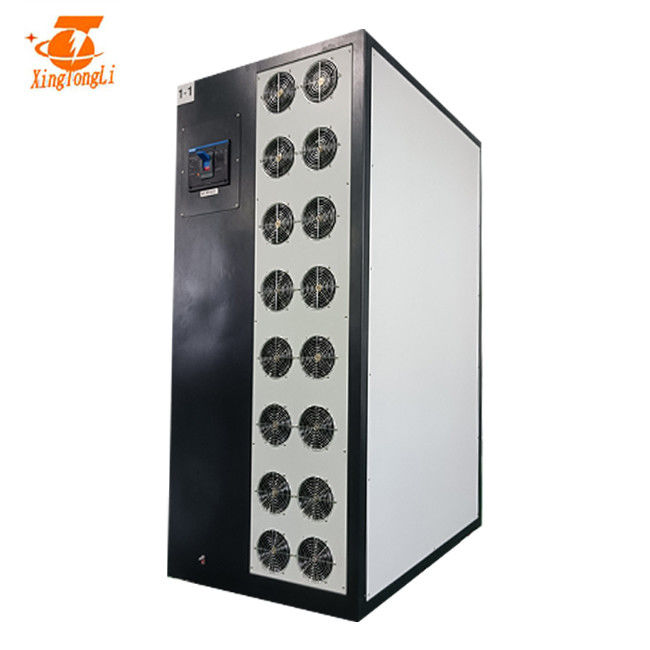

3,POWER SUPPLY DETAIL
4,POWER SUPPLY APPLICATION
Electroplating, Electrolysis, Polishing, Water Treatment, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
