RS485 RS232 Pulse Rectifier Electroplating 1000A 12V
  • RS485 RS232 Pulse Rectifier Electroplating 1000A 12V
  • RS485 RS232 Pulse Rectifier Electroplating 1000A 12V
  • RS485 RS232 Pulse Rectifier Electroplating 1000A 12V

RS485 RS232 Pulse Rectifier Electroplating 1000A 12V

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS ISO9001
Model Number GKD12-1000A
Product Details
Input Voltage:
Output Voltage:
12V Max
Output Current:
1000A Max
Application 1:
Electrophoresis, Capacitor Charging, Aging Of Electronic Components
Application 2:
Motor And Controller Test
Application 3:
Testing And Aging Of Electronic Components
Air Cooling
Output Type:
Touch Screen
Pulse Rectifier Electroplating 1000A 12V
PLC Interface:
RS485 RS232
High Light:

Pulse Rectifier Electroplating 1000A


RS232 Pulse Rectifier Electroplating


RS485 Pulse Plating Rectifier 12V

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden case 98*78*63cm
Delivery Time
15~20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100 SET/month
Product Description

pulse rectifier electroplating 1000A

I. Technical Data Sheet

Model GKD12-1000CVC
AC Input 380V 3 phases 220VAC
Input frequency 50Hz/60Hz
Output  DC voltage 0~12VDC
Output DC current 0~1000A
Output pulse voltage


Output pulse current 0~1000A
Output frequency 0~5Khz
Voltage Stabilization ≤0.3%+10mV
Load Stabilization ≤0.5%+30mV
Ripples and Noises ≤0.5%+10mVrms
Voltage Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Display Format 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V
Current Display Accuracy 4-digit Accuracy: ±1%+1 word (10%-100% rating)
Remote Adjustment (Analog control: Voltage adjustable ):0-5VDC;(Current adjustable):0-5VDC
Remote Display (Analog control: Voltage adjustable ): 0-5VDC;(Current adjustable):0-5VDC
Output Over-Voltage Protection Built-in O.V.P. protection, protection limited value is rated +5%
Output Over Load Protection Overload, current limit, constant current output
Over Temperature Protection Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature
Voltage Setting 10-turn precision potentiometer
Current Setting 10-turn precision potentiometer
Output Polarity Output Positive(+) negative(- ) Can be grounded at will
Heat Dissipation Way Forced fan cooling
Work Conditions Indoor use design, Temperature:0℃~40℃; Humidity: 10%~85%RH
Storage Conditions Temperature:-20℃~70℃; Humidity: 10%~90%RH
Machine Dimension 98*78*63cm
Net Weight/Gross Weight 120kg



1. Output voltage:0-12VDC,Current optional:0-1000A.

2. Utilize PWM modulation,High gain amplifier circuit design, core components, all imported, to ensure long-term full load operation is stable and reliable.

3. Small size, light weight, 19-inch installation size, suitable for work surface and rack installation, more than 20 kW can be racked.
4. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.

5. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.

6. Intelligent, can be connected with a PC to form a PC monitoring intelligent power supply

7. RS232/RS485 digital interface,0-10V/4-20mA analog interface,

MOUDBUS-RTU standard communication protocol.

8. Can custom for you.

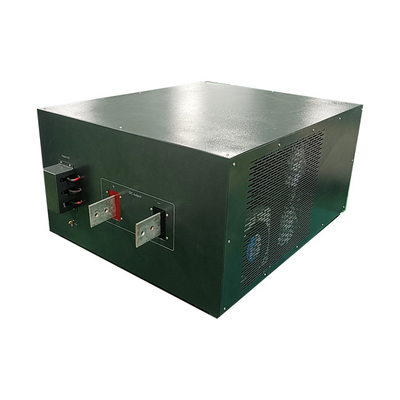

RS485 RS232 Pulse Rectifier Electroplating 1000A 12V 0

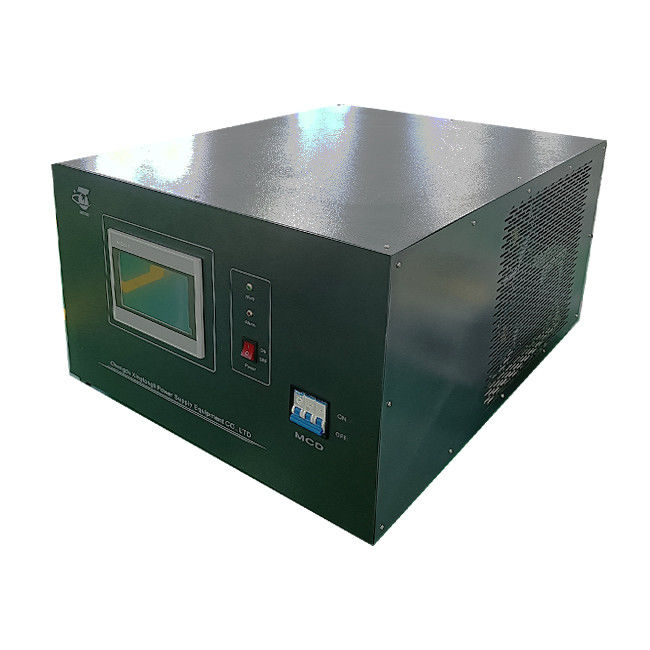

RS485 RS232 Pulse Rectifier Electroplating 1000A 12V 1



Electrostatic spraying, electrostatic spinning, electrostatic dusting, electrostatic fabric, electrophoresis, capacitor charging, aging of electronic components, ion implantation, laser, scientific experiments, etc. Optional features: Non-standard slow start High voltage cable of extra length for higher stability.
