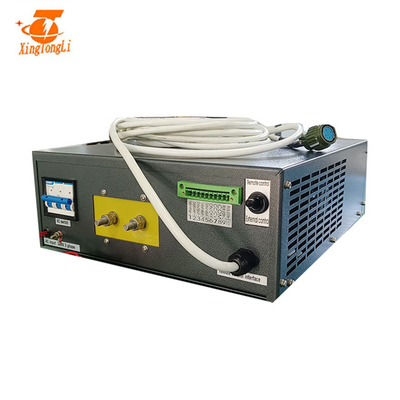

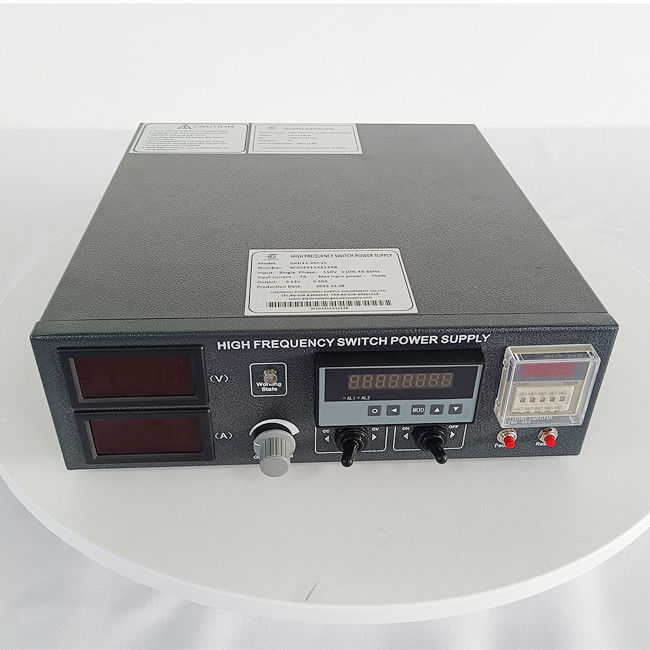

Electroplating Power Supply
>
|
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE RoHS ISO9001 |
| Model Number | GKD12-30CVC |
Normal silver electroplating machines cannot directly obtain bright electroplating coatings. In order to obtain brightness, chemical immersion or barrel rolling treatment is required, but it will lead to the loss of silver electroplating coatings, and it is difficult to recover 50% of the loss, leading to greater waste. Bright silver plate can directly obtain bright electroplating coating, which simplifies operation and reduces waste. However, the anti abdomen visual state of the electroplating coating is poor, and the conductivity will deteriorate. Because silver in the air can easily change color due to sulfur, additives (mainly sulfur compounds) will inevitably promote its more easily changed color, thus seriously affecting electroplating and welding characteristics. In addition, the attached electroplating agent (in this case, it can be regarded as an impurity) makes the silver plate impure, and then the electrical performance decreases. In order to make an inappropriate analogy, cold poison can cure colds, but it will bring side effects (such as dizziness, lethargy, etc.). Bright silver inclined solution additives, such as cold poison, may directly obtain bright silver plating layer, but side effects (such as anti pollution coating ability, conductivity change, additive decomposition products, difficult to treat, etc.).
Specification
| SPECIFICATIONS FOR GKD(M)(H)12-30CVC | |||
| Input AC | 110V±10% | 1phase | 50/60Hz |
| Output DC | Volt | 0~12V Adjustable | |
| Current | 0~30A Adjustable | ||
| Power | 360W | ||
| Efficiency | >85% | ||
| Switching Frequency | 20KHz | ||
| Protection | Short circuit protection Overheating protection Phase lack protection Input over/low voltage protection |
||
| Working Condition (Temperature) |
-10℃~50℃ | Control mode | Panel control Remote control |
| Net weight | 7.5kg | Working mode | Constant Voltage(CV) Constant Current(CC) |
| Dimension(mm) | 420*310*145mm | Cooling way | Air cooling |
Application
Different volt and current has different applications
1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided
2. Control mode: Local control or Remote control(the length of cable is determined by customers)
3. Japan IGBT(the default choice) or Germany IGBT are adopted
4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function
5. Easy to operate and repaire
Other advantages
1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.
2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.
3 Schottky Barrier Diode
a: It has been expanded 4 times.
4 All the controlling boards get antiseptic treatment with imported lacquer.
How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.
Our service
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
