24volt Switch Mode Electroplating Power Supply 200A

Place of Origin China
Brand Name Xingtongli
Certification CE
Model Number GKD24-200CVC
Product Details
24volt Switch Mode Power Supply 200A
Control Way:
Remote Control
Cooling Way:
Air Cooling
High Light:

24volt Switch Mode Power Supply


Electroplating Power Supply 200A


1phase Electroplating Power Supply

Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Wooden case 760*540*440mm
Delivery Time
8~10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability
100 SET/month
Product Description

24volt switch mode power supply 200A



Switching power supply products are widely used in industrial automation control, military equipment, scientific research equipment, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation, medical equipment, semiconductor refrigeration and hot heat, air purifier, electronic refrigerator, LCD display, LED Lighting, communication equipment, audiovisual products, security monitoring, LED light belt, computer case, digital products and instruments and other fields.

1. Small volume and light weight: Because there is no industrial frequency transformer, the volume and weight are only 20-30%of the wired power supply.

2. Small power consumption and high efficiency: The power transistor work is in the switch state, so the power consumption on the transistor is small, the transformation efficiency is high, generally 60-70%, while the linear power supply is only 30 to 40%.

Folding working conditions
1. Switch: Electric electronics device works in the switch state instead of linear state

2. High frequency: Electric electronics device works at high frequency rather than close -frequency low -frequency

3. DC: The output of the switching power supply is DC instead of communication



Input AC 380V±10% 1phase 50/60Hz
Output DC Volt 0~24V Adjustable
Current 0~200A Adjustable
Power 6KW
Efficiency >85%
Switching Frequency 20KHz
Protection Short circuit protection
Overheating protection
Phase lack protection
Input over/low voltage protection
Working Condition
-10℃~50℃ Control mode Panel control
Remote control
Net weight 45kg Working mode Constant Voltage(CV)
Constant Current(CC)
Dimension(mm) 760*540*440mm Cooling way Air cooling


Some pics was followed

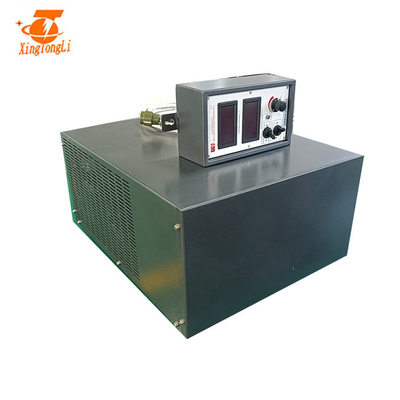

24volt Switch Mode Electroplating Power Supply 200A 0

24volt Switch Mode Electroplating Power Supply 200A 1

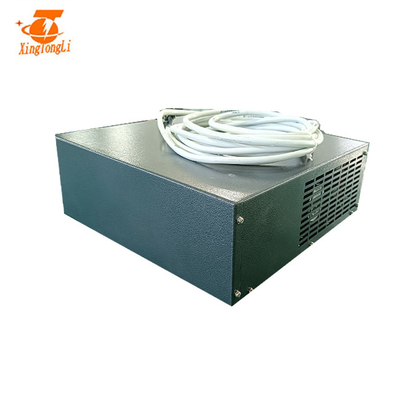

Remote control box


24volt Switch Mode Electroplating Power Supply 200A 2





Different volt and current has different applications

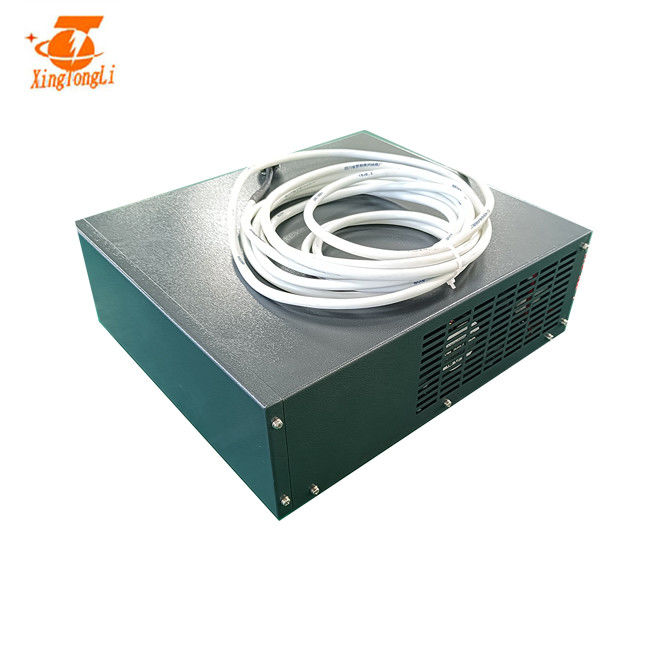

24volt Switch Mode Electroplating Power Supply 200A 3



electroplating rectifier.jpg

1. 0~10V, 4~20mA,PLC,Timer, Ampere-minute/hour counter, HMI can be provided

2. Control mode: Local control or Remote control(the length of cable is determined by customers)

3. Japan IGBT(the default choice) or Germany IGBT are adopted

4. After being phosphated, galvanized and plastic sprayed, the chassis has excellent corrosion resistence function

5. Easy to operate and repaire


Other advantages

24volt Switch Mode Electroplating Power Supply 200A 5


1. Cabinet
a: Adopting completely digitalized machining
b: Adopting cold rolled production of iron steel sheet, after phosphorization, zinc plating, plastic spray, the rectifier gets better structural strength and anti-corrosion.
c: Reasonable structure design, isolated inverter design, rectification part is convenient to disassemble and mend because of its neat assembling.
d: Radiator gets better cooling effect because of its 1.5 times capacity.


2 Electric control system
a: The rectifier adopts full bridge phase-shifted soft switch control, ensuring the lowest power loss of IGBT. The capacity of IGBT become 3 times bigger.
b: The main transformer. It adopts amorphous core to increase transformer efficiency and cool transformer, and not only can lighten rectifier weight, but also can strengthen rectifier stability and reliability. At its elementary stage, it adopts series blocking capacitor.
c: Magnetic deviation automatic correction circuit is adopted and the total power of magnetic core gets enlarged 1.5 times.


3 Schottky Barrier Diode
a: It has been expanded 4 times.


4 All the controlling boards get antiseptic treatment with imported lacquer.


How to install rectifier
This is installation way for remote control rectifier. Not only this way.
1. To connect copper bar with bath/tank
2. To ensure power supply/rectifier is grounded
3. To ensure there is enough water for water cooling type power supply/rectifier
4. We advice that all rectifiers should be isolated to increase of its life.

24volt Switch Mode Electroplating Power Supply 200A 6



Our service


Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered



1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
