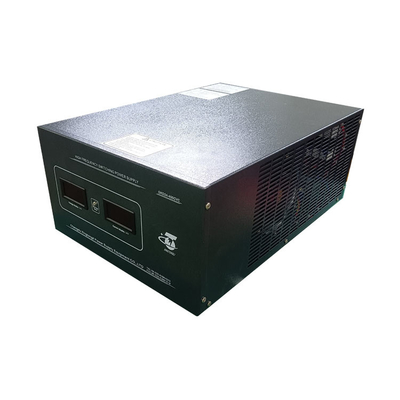

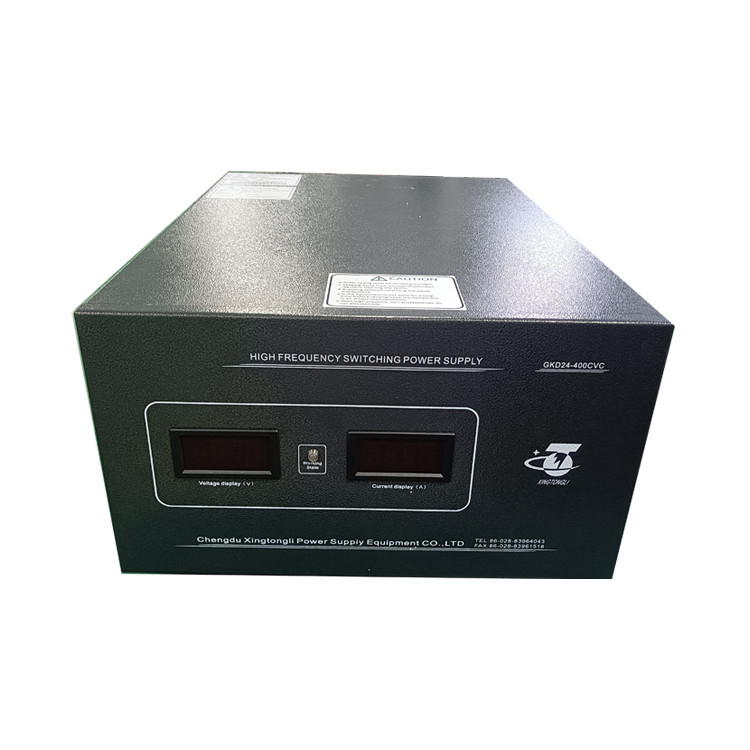

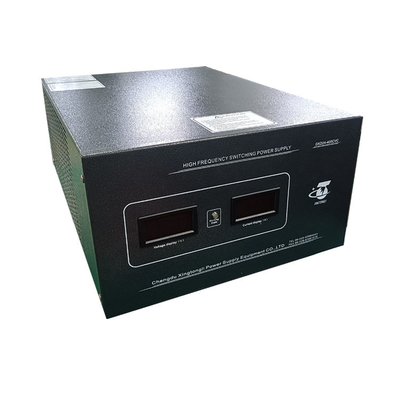

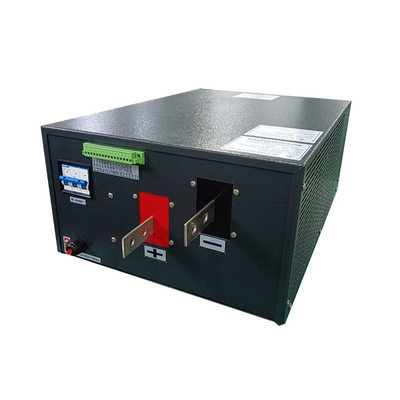

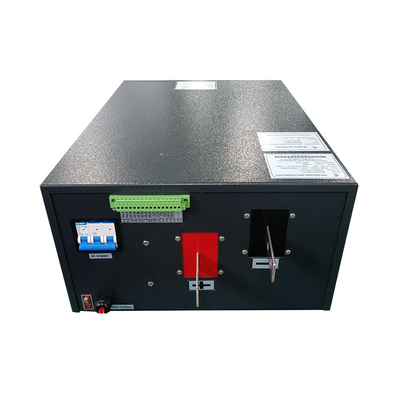

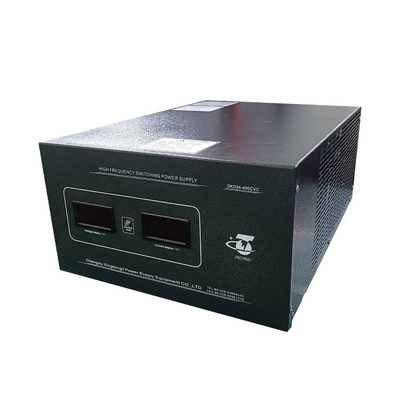

High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W
  • High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W

High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS ISO9001
Model Number TL-HP 24V/400A
Product Details
Product Name:
High Performance 24V 400A 9600W Programmable Adjustable Lab DC Power Supply
Certification:
CE, ISO9001, RoHS
Interface:
RS232, RS485
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Voltage Rise:
Adjustable Voltage Rise Time
Voltage Overshoot:
No Overshoot, No Voltage Peak
MOQ:
1
Warranty:
1 Year
Output Current:
0-400A
Output Voltage:
0-24V
Application1:
Battery And Capacitance Charging Equipment
Application2:
Laboratory, Factory Use, Testing &Aging Of Electronic Components
Application3:
Motor & Controller Test
High Light:

Programmable Lab DC Power Supply

,

24V 400A DC Power Supply

,

Programmable Power Supply 9600W

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD850-880/UNIT
Packaging Details
strong plywood standard exporting package
Delivery Time
5-15 working days
Payment Terms
L/C, T/T
Supply Ability
500set/ month
Product Description

High Performance 24V 400A 9600W Programmable Adjustable Lab DC Power Supply

Introduction

The 9600w switch mode dc power supply is high voltage switching lab power supply.

The high voltage high frequency dc regulated power supply is available with high power supply up to 2kw 3kw 4kw 5kw 6kw 7kw 8kw 9kw and 10kw dc power source.

The  hig power switching power supply has maximum voltage from 10V, 20V,30V, 40V,50V,60V,70V,80V,90V,100V,200V,300V,400V,500V and 600V. The dc power supply current output is up to 20A, 30A, 40A, 50A,60A,70A, 80A, 90,100A, 200A, 300A and 400A.

The dc high voltage power supply can be made to be customized and OEM power supply

 Technical Data Sheet

Mode  TL-HA 24V 400A
AC Input AC 380V/415V/480V/220v±10% /110V Single
Interface RS232, RS485
Input frequency 50khz/60khz
Cooling method Forced air cooling

Output current

400A
Output voltage 24V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Laboratory, Factory Use, Testing &Aging of Electronic Components
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment

Ripple/ Noise

≤0.1%FS

Protections OCP, OVP, OVL, OTP, UVP and current limit protections

High Performance Programmable Adjustable Lab DC Power Supply 24V 400A 9600W 0

 FEATURE:

1. Output voltage:0-24V,Current optional:0-400A.


2. Low ripple and low noise

3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.

4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.

5. can be connected with a PC to form a PC monitoring intelligent power supply

6. RS232/RS485 digital interface analog interface,



7. MOUDBUS-RTU standard communication protocol.



8. Customized specifications and functions acceptable



APPLICATION:

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components





Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered


FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
