45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current
  • 45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current

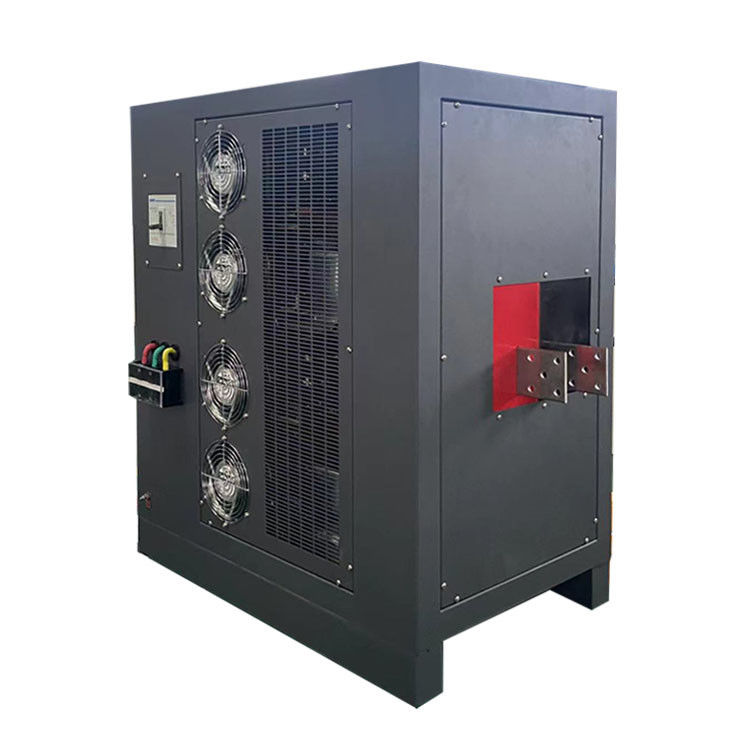

45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current

Place of Origin China
Brand Name Xingtongli
Certification CE RoHS ISO9001
Model Number TL-HP 45V/2000A
Product Details
Product Name:
45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current Variable Swithching Power Supply
Certification:
CE, ISO9001, RoHS
Interface:
RS232, RS485
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Voltage Rise:
Adjustable Voltage Rise Time
Voltage Overshoot:
No Overshoot, No Voltage Peak
MOQ:
1
Warranty:
1 Year
Output Current:
0-2000A
Output Voltage:
0-45V
Application1:
Battery And Capacitance Charging Equipment
Application2:
Laboratory, Factory Use, Testing &Aging Of Electronic Components
Application3:
Motor & Controller Test
Highlight:

90kw Laboratory DC Power Supply

,

45V 2000A DC Power Supply

,

RS232 Variable Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
USD5200/UNIT
Packaging Details
strong plywood standard exporting package
Delivery Time
5-15 working days
Payment Terms
L/C, T/T
Supply Ability
500set/ month
Product Description

45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current Variable Swithching Power Supply



Introduction

The 9600w switch mode dc power supply is high voltage switching lab power supply.

The high voltage high frequency dc regulated power supply is available with high power supply up to 2kw 3kw 4kw 5kw 6kw 7kw 8kw 9kw and 10kw dc power source.

The hig power switching power supply has maximum voltage from 10V, 20V,30V, 40V,50V,60V,70V,80V,90V,100V,200V,300V,400V,500V and 600V. The dc power supply current output is up to 20A, 30A, 40A, 50A,60A,70A, 80A, 90,100A, 200A, 300A and 400A.

The dc high voltage power supply can be made to be customized and OEM power supply

Technical Data Sheet

Mode TL-HP 45V2000A
AC Input AC 380V/415V/480V/220v±10% /110V Single
Interface RS232, RS485
Input frequency 50khz/60khz
Cooling method Forced air cooling
Output current 2000A
Output voltage 45V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Laboratory, Factory Use, Testing &Aging of Electronic Components
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Cooling way Water cooling
Protections OCP, OVP, OVL, OTP, UVP and current limit protections

45V 2000A 90kw High Power Programmable Laboratory DC Power Supply High Current 0



FEATURE:

1. Output voltage:0-45V,Current optional:0-2000A.


2. Low ripple and low noise

3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.

4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.

5. can be connected with a PC to form a PC monitoring intelligent power supply

6. RS232/RS485 digital interface analog interface,



7. MOUDBUS-RTU standard communication protocol.



8. Customized specifications and functions acceptable



APPLICATION:

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components
