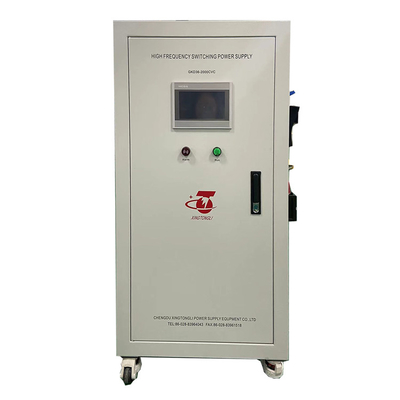

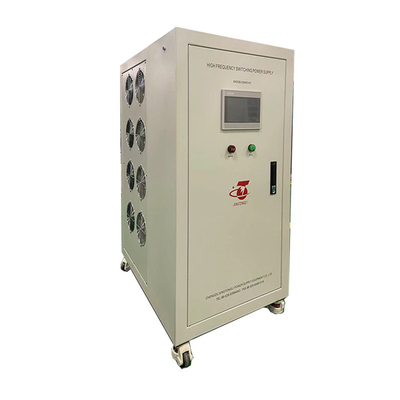

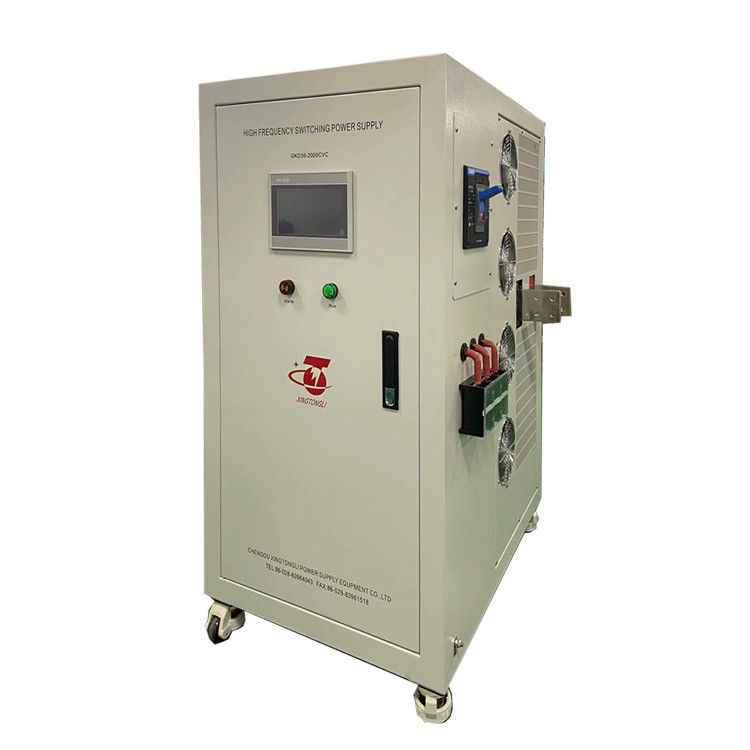

Adjustable Constant Current Voltage Programmable DC Power Source Rectifier 36V 72KW

Place of Origin China
Brand Name Xingtongli
Certification CE ISO9001
Model Number TL-HP 36V/2000A
Product Details
Product Name:
36V 2000A Programmable DC Power Supply
Input Voltage:
AC 380V/415V/480V/220v±10% /110V Single
Certification:
CE, ISO9001
Interface:
RS232, RS485
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Voltage Rise:
Adjustable Voltage Rise Time
Voltage Overshoot:
No Overshoot, No Voltage Peak
Application1:
Laboratory, Factory Use, Testing &Aging Of Electronic Components
Application2:
Motor & Controller Test
Application3:
Battery And Capacitance Charging Equipment
MOQ:
1
Warranty:
1 Year
Output Current:
0-2000A
Output Voltage:
0-36V
Highlight:

DC Power Source Rectifier 36V

,

Programmable DC Power Source Rectifier

,

Programmable Dc Power Supply 72KW

Payment & Shipping Terms
Minimum Order Quantity
1
Price
5600$/unit
Packaging Details
strong plywood standard exporting package
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500
Product Description

36V 2000A 72KW Adjustable Variable Constant Current Voltage Programmable DC Power Source Rectifier

Introduction

The 75kw programmable dc power supply is high current switching power supply.

The hig power high frequency dc power supply is available with high power up to 10kw 20kw 30kw 40kw 50kw 60kw 70kw and 75kw dc power source.

The high power switching power supply has voltage from 10V, 20V,30V, and 40V. The dc power supply current output is up to 100A, 200A, 300A, 400A, 500A, 600A, 700A, 800A, 900A, 1000A, 1200A, 1400A, 1600A, 1800A and 2000A.

The dc power supply can be made to be customized and OEM power supply

Technical Data Sheet

Mode TL-HP 36V 2000A
AC Input AC 380V/415V/480V/220v±10% /110V Single
Interface RS232, RS485
Input frequency 50khz/60khz
Output current 2000A
Output voltage 36V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Laboratory, Factory Use, Testing &Aging of Electronic Components
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤0.1%FS
Protections OCP, OVP, OVL, OTP, UVP and current limit protections

Adjustable Constant Current Voltage Programmable DC Power Source Rectifier 36V 72KW 0

FEATURE:
1. Output voltage:0-36V,Current optional:0-2000A.


2. Low noise and high frequency

3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.

4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.

5. can be connected with a PC to form a PC monitoring intelligent power supply

6. RS232/RS485 digital interface analog interface,



7. MOUDBUS-RTU standard communication protocol.



8. Customized specifications and functions acceptable



APPLICATION:

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components





Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.

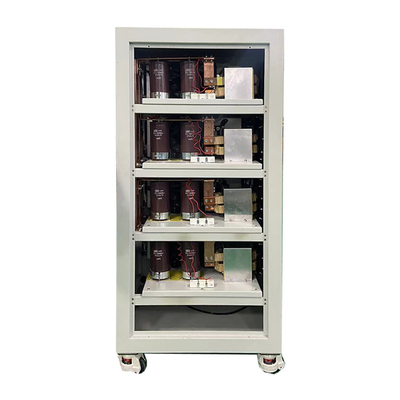

3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
