Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A
  • Variable Voltage DC Power Supply Adjustable 15V 500A

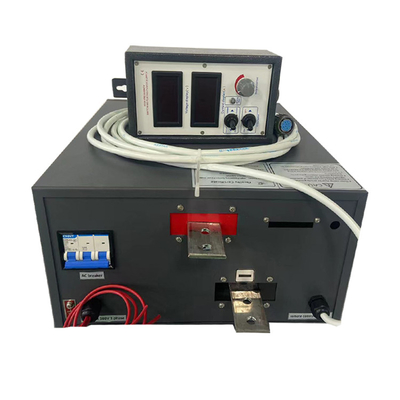

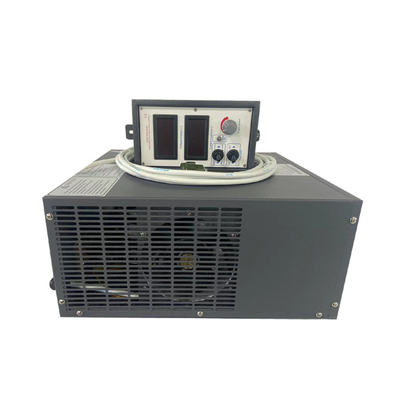

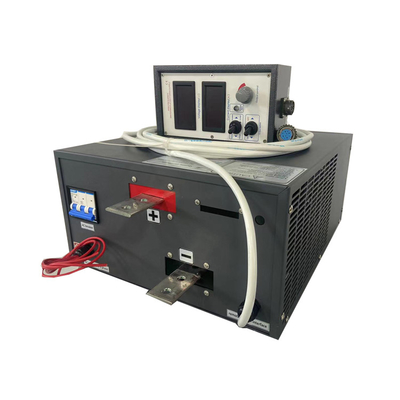

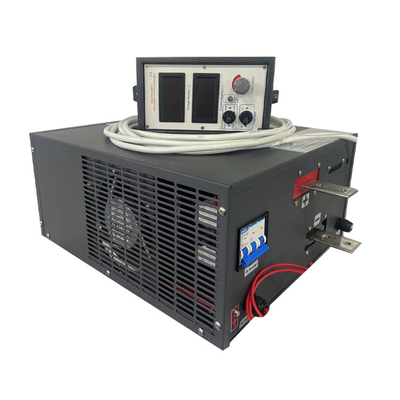

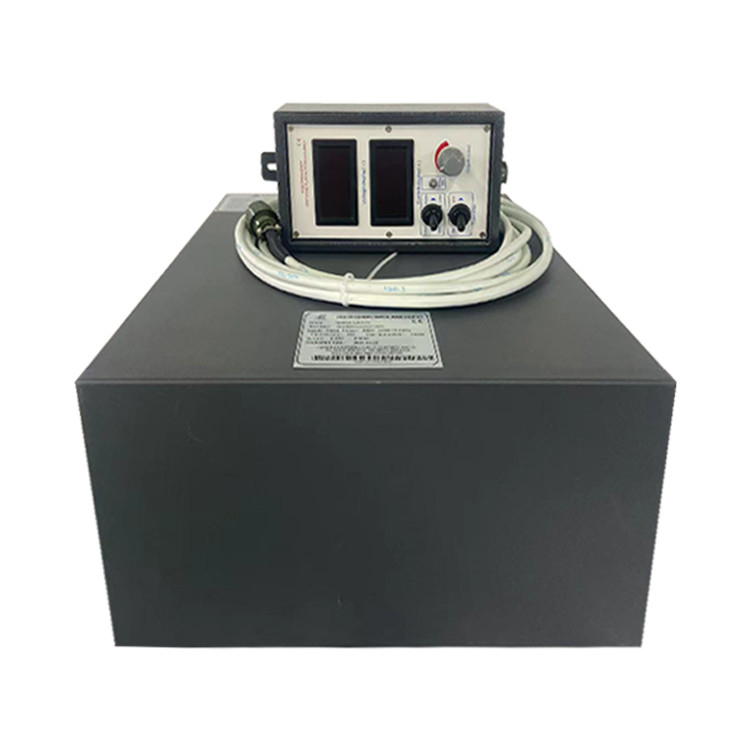

Variable Voltage DC Power Supply Adjustable 15V 500A

Place of Origin China
Brand Name Xingtongli
Certification CE ISO9001
Model Number TL-HP 15V/500A
Product Details
Product Name:
15V 500A Adjustable Variable Voltage DC Power Supply
Input Voltage:
AC 380V/415V/480V/220v±10% /110V Single
Certification:
CE, ISO9001
Interface:
RS232, RS485
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Voltage Rise:
Adjustable Voltage Rise Time
Voltage Overshoot:
No Overshoot, No Voltage Peak
Application1:
Laboratory, Factory Use, Testing &Aging Of Electronic Components
Application2:
Motor & Controller Test
Application3:
Battery And Capacitance Charging Equipment
MOQ:
1
Warranty:
1 Year
Output Current:
0-500A
Output Voltage:
0-15V
Highlight:

15V 500A DC Power Supply

,

RS485 DC Power Supply

,

OVP Switching Power Supply

Payment & Shipping Terms
Minimum Order Quantity
1
Price
850$/unit
Packaging Details
strong plywood standard exporting package
Delivery Time
3-15 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500set/month
Product Description

15V 500A Adjustable Variable Voltage DC Power Supply

Introduction

The 7.5KW switch mode dc power supply is with remote control and fored air cooling.

The high frequency dc regulated power supply is available with high power up to 2kw 3kw 4kw 5kw 6kw 7kw and 7.5kw dc power source.

The switching power supply has voltage from 2V 4V 6V 8V 10V and 12V. The dc power supply current output is up to 100A, 200A, 300A, 400A and 500A.

The dc power supply can be made to be customized and OEM power supply

Technical Data Sheet

Mode TL-HP 15V 500A
AC Input AC 380V/415V/480V/220v±10% /110V Single
Interface RS232, RS485
Input frequency 50khz/60khz
Output current 500A
Output voltage 15V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Laboratory, Factory Use, Testing &Aging of Electronic Components
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤0.1%FS
Protections OCP, OVP, OVL, OTP, UVP and current limit protections

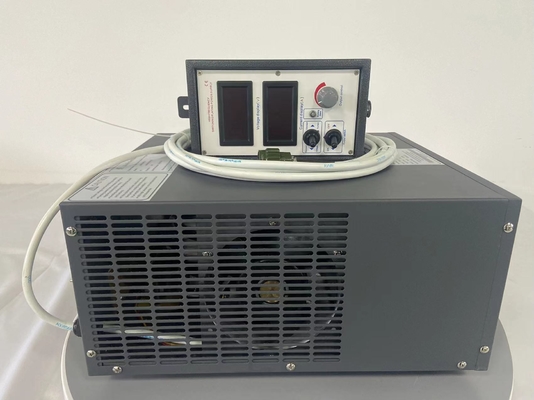

Variable Voltage DC Power Supply Adjustable 15V 500A 0

FEATURE:
1. Output voltage:0-15V,Current optional:0-500A.


2. Low ripple and low noise

3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.

4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.

5. can be connected with a PC to form a PC monitoring intelligent power supply

6. RS232/RS485 digital interface analog interface,



7. MOUDBUS-RTU standard communication protocol.



8. Customized specifications and functions acceptable



APPLICATION:

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components





Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered


FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
