Place of Origin | China |
Brand Name | Xingtongli |
Certification | CE ISO9001 |
Model Number | TL-HP 12V/750A |

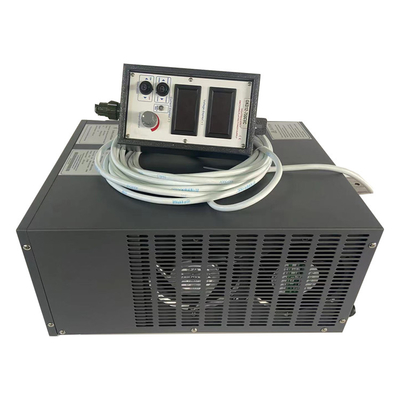

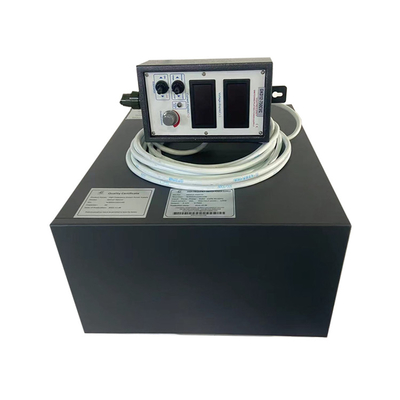

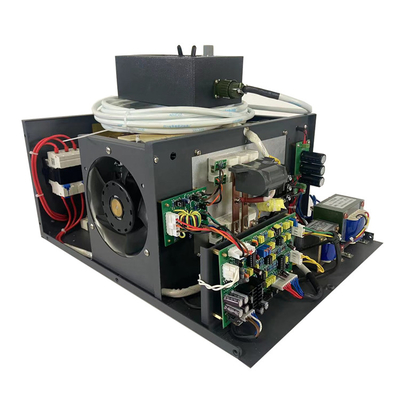

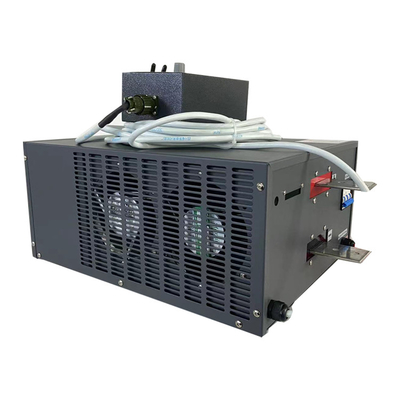

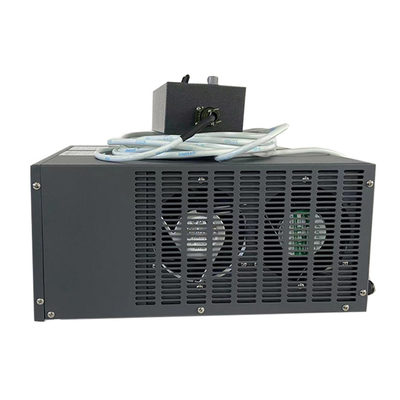

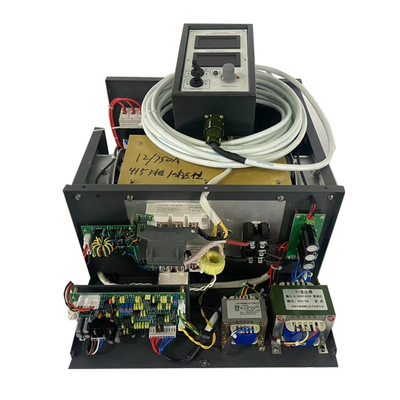

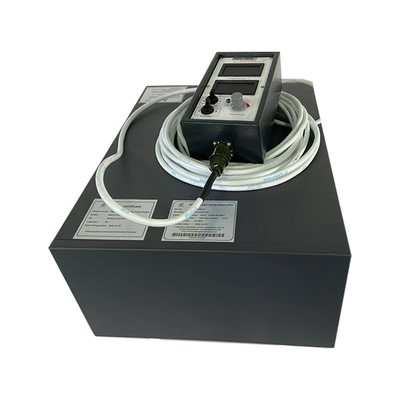

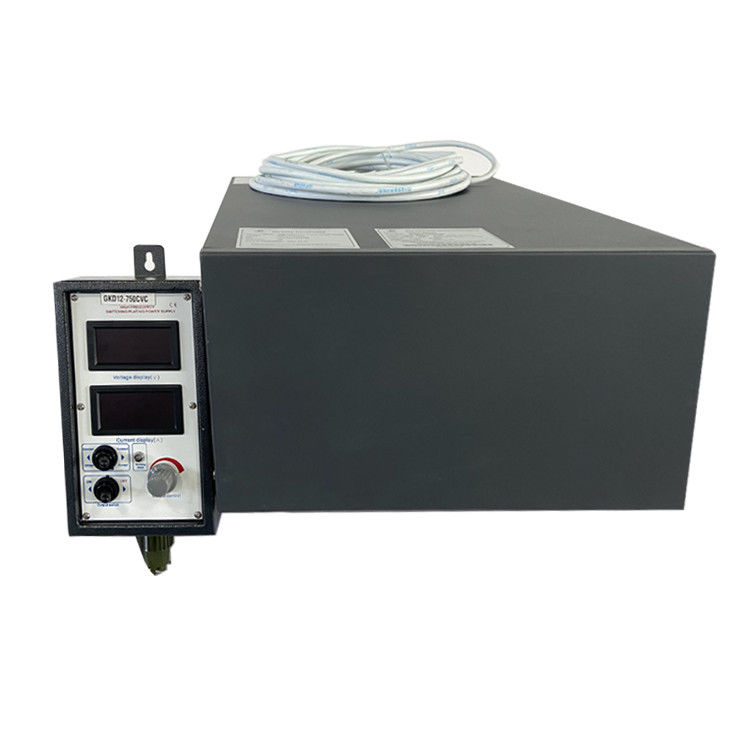

12V 750A AC DC Power Supply 9KW Adjustable DC Switching Power Supply
Introduction
The 7.5KW switch mode dc power supply is with remote control and fored air cooling.
The high frequency dc regulated power supply is available with high power up to 2kw 3kw 4kw 5kw 6kw 7kw 8kw and 9kw dc power source.
The switching power supply has voltage from 2V 4V 6V 8V 10V and 12V. The dc power supply current output is up to 100A, 200A, 300A, 400A, 500A, 600A and 750A.
The dc power supply can be made to be customized and OEM power supply
Technical Data Sheet
Mode | TL-HP 12V 750A |
AC Input | AC 380V/415V/480V/220v±10% /110V Single |
Interface | RS232, RS485 |
Input frequency | 50khz/60khz |
Output current | 750A |
Output voltage | 12V |
Voltage Rise | Adjustable voltage rise time |
Voltage Overshoot | No overshoot, no voltage peak |
Application1 | Laboratory, Factory Use, Testing &Aging of Electronic Components |
Application2 | Motor & Controller Test |
Application3 | Battery and Capacitance Charging Equipment |
Ripple/ Noise | ≤0.1%FS |
Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE:
1. Output voltage:0-12V,Current optional:0-750A.
2. Low ripple and low noise
3. Voltage and current preset, the panel comes with preset buttons, which can preset voltage and current values.
4. Perfect protection function, can set output overvoltage, overcurrent, overtemperature, turn off output protection, short circuit protection.
5. can be connected with a PC to form a PC monitoring intelligent power supply
6. RS232/RS485 digital interface analog interface,
7. MOUDBUS-RTU standard communication protocol.
8. Customized specifications and functions acceptable
APPLICATION:
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
Our service
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
