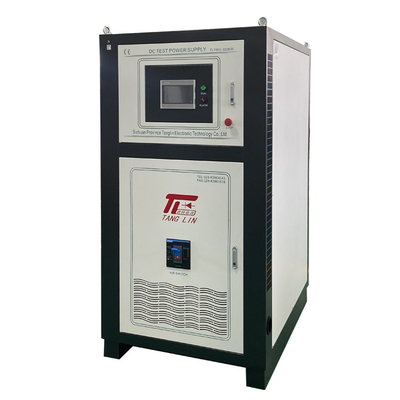

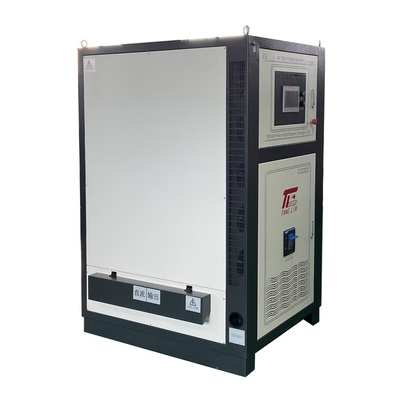

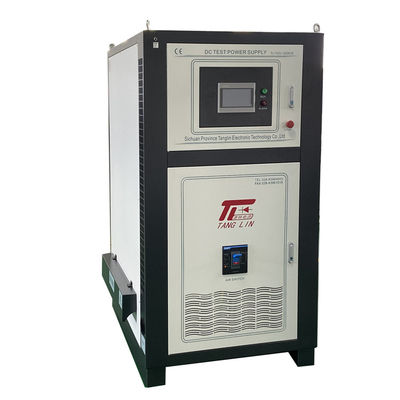

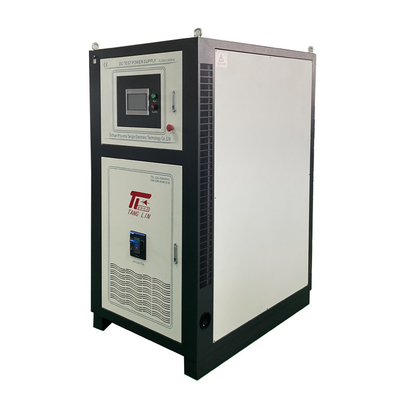

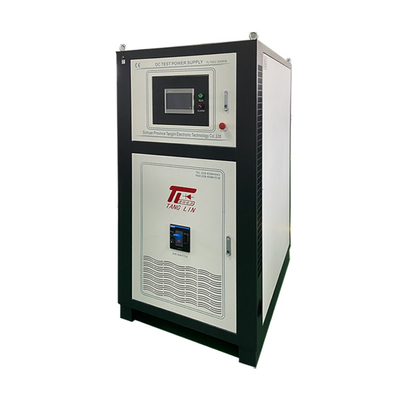

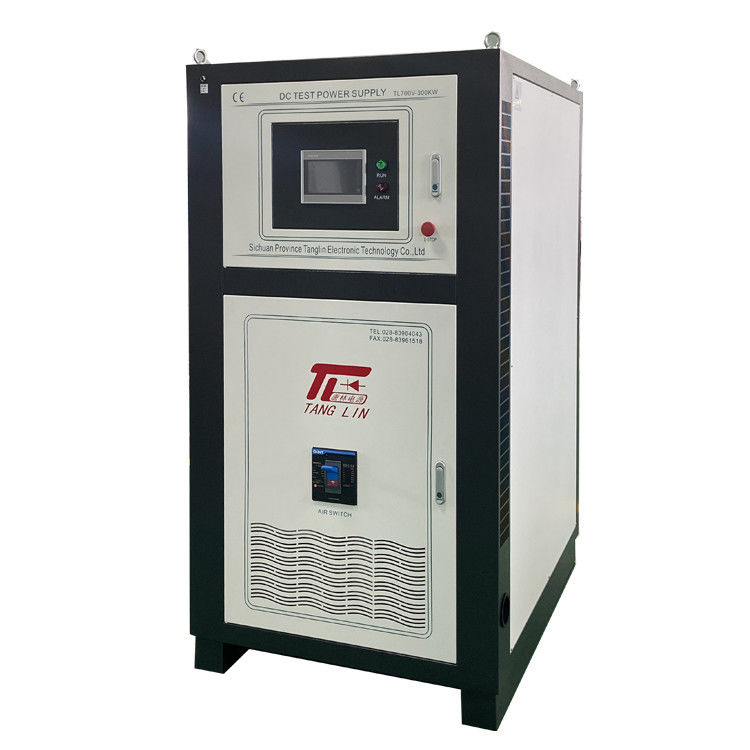

700V 300KW Air Compressor Test DC Power Supply 5 Channels Independent Control Rectifier

700V 300KW Air Compressor Test DC Power Supply 5 Channels 60KW Independent Control Rectifier

Introduction

_{This 300KW air compressor test DC power supply is a device that provides a steady DC voltage to power and test air compressors. It is specifically designed to provide a stable and reliable power source that can be used to test the functionality of air compressors in a variety of settings.}

_{This type of power supply is typically used by professionals in the automotive and industrial sectors to diagnose and repair air compressors. It is particularly useful when testing air compressors in remote locations where access to a standard AC power supply may be limited or unavailable.}

_{An air compressor test DC power supply typically comes with a variety of features, such as adjustable voltage settings, overload protection, and thermal shutdown. These features ensure that the power supply can safely and effectively power air compressors of varying sizes and power requirements.}

_{Our air compressor test DC power supply is an essential tool for anyone who works with air compressors on a regular basis. By providing a stable and reliable power source, it can help to streamline the testing and repair process, saving time and improving the efficiency of the operation.}

Technical Data Sheet

FEATURE:

_{1. Input voltage: AC 380V±15%, 50HZ±1Hz}

_{2. Output voltage: DC 560 (560V-700V)}

_{3. Output power: 300KW}

_{4. Operating temperature: -20℃~+45℃}

_{5. Response time: ≤10ms}

_{6. With energy consumption function for back electromotive force, used for air compressor testing. When it stops, the reverse electromotive force will return to the power source end.}

_{7. Operating mode: constant voltage mode}

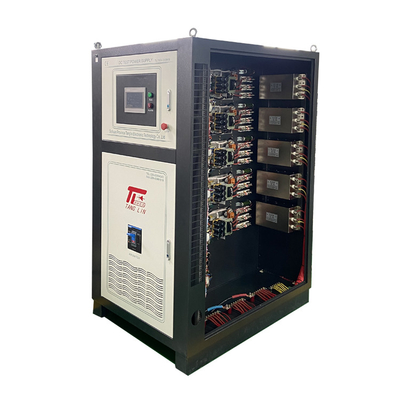

_{8. 5 independent controls for 700V 60KW each}

_{9. Equipped with input and output EMC filters, ripple ≤1%}

_{10. PLC+HMI control, with RS485 communication.}

APPLICATION

Air Compressor Test

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components
