Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw
  • Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw

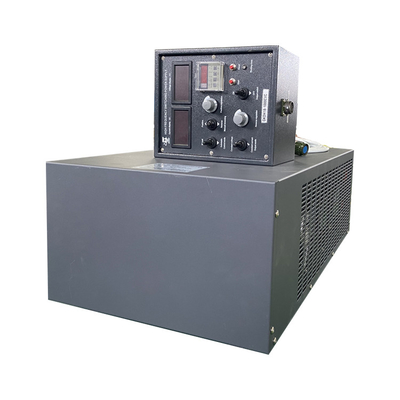

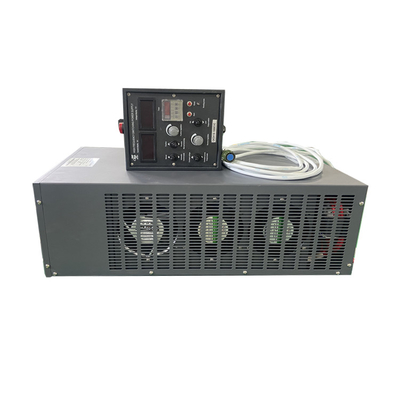

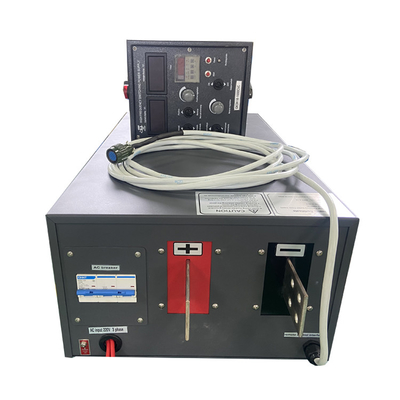

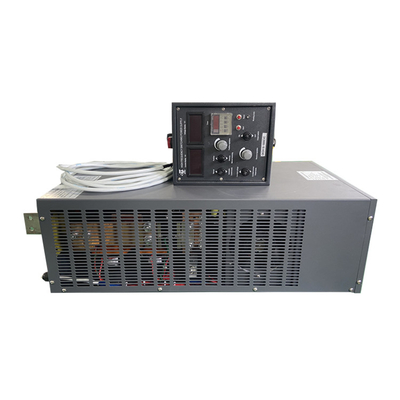

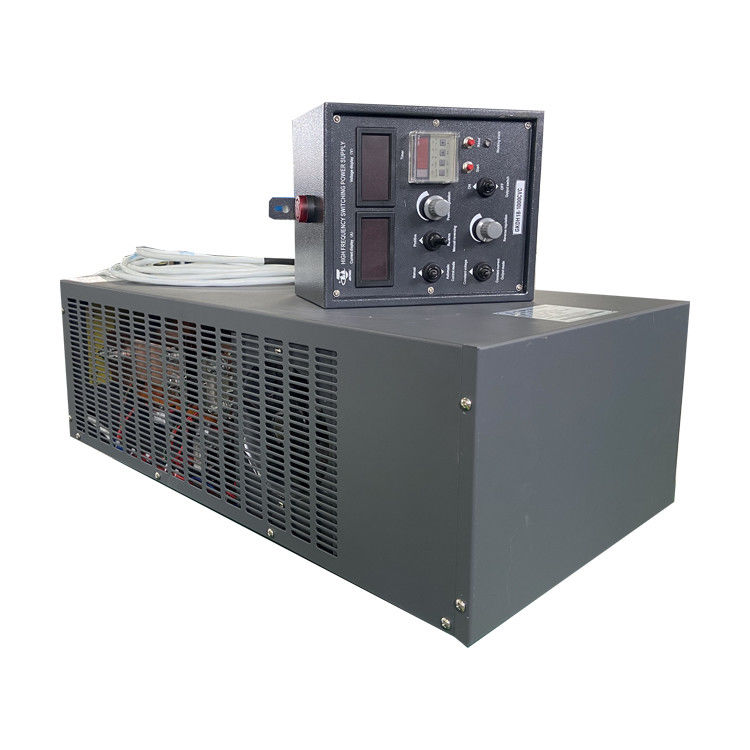

Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw

Place of Origin China
Brand Name Xingtongli
Model Number GKDH18-1000CVC
Product Details
Certification:
CE, ISO9001
Product Name:
18V 1000A Electroplating Rectifier 5.4kw Polarity Reverse DC Power Supply
Input Voltage:
AC 220V±10% 3 Phase
Ripple/ Noise:
≤0.1%FS
Interface:
RS232, RS485
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Voltage Rise:
Adjustable Voltage Rise Time
Voltage Overshoot:
No Overshoot, No Voltage Peak
Output Current:
0-1000A
Output Voltage:
0-18V
MOQ:
1
Warranty:
1 Year
Application1:
Laboratory Test Aging Electroplating
PLC ANALOG:
0-10V / 4-20mA/ 0-5V
High Light:

RS232 Electroplating Rectifier

,

Polarity Reverse DC Power Supply 18V

,

DC Power Supply 5.4kw

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1300-1600$/unit
Packaging Details
strong plywood standard exporting package package size:81*42*26.5cm gross weight: 55kg
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500 set/month
Product Description

18V 1000A Electroplating Rectifier 5.4kw Polarity Reverse DC Power Supply

Introduction

The 18V 1000A polarity reverse DC power supply is a type of power supply that can change the polarity of the output voltage on demand. It is commonly used in electronic and electrical applications that require a DC voltage source with the capability to switch polarity.



In a typical polarity reverse DC power supply, the output voltage can be adjusted by changing the input voltage or through a variable voltage control knob. By reversing the polarity of the output voltage, the supply can provide both positive and negative DC voltages, making it useful for applications such as electroplating, electrochemical reactions, and motor control.



This polarity reverse DC power supply is a benchtop power supply that provides adjustable DC voltage with the ability to reverse polarity at any point in that range. This type of power supply is often used in research labs, engineering facilities, and industrial manufacturing settings.



Our polarity reverse DC power supply is a versatile tool for providing DC voltage with variable polarity, making it an essential component for many electrical and electronic applications



Technical Data Sheet

Mode GKDH18-1000CVC
AC Input AC 220V±10% 3 phase
Interface RS232, RS485
Input frequency 50khz/60khz
Output current 1000A
Output voltage 18V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Air compressor test
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤0.1%FS
Protections OCP, OVP, OVL, OTP, UVP and current limit protections

Electroplating Rectifier Polarity Reverse DC Power Supply 18V 1000A 5.4kw 0

FEATURE:

1. High Current Capacity: With a maximum current capacity of 1000A, this power supply can deliver a large amount of power to drive high-power applications.

2. Stable Output Voltage: The power supply provides a stable DC output voltage of 18V, which ensures consistent performance of connected devices.

3. High Efficiency: The use of high-frequency technology in the power supply results in higher efficiency, reducing power losses and saving energy.

4. Compact Design: The high-frequency technology also allows for a more compact and lightweight design, making the power supply easier to transport and install.

5. Protection Features: The power supply includes various protection features, such as overvoltage protection, overcurrent protection, and short-circuit protection, to ensure safe operation and prevent damage to connected devices.

6. Wide Range of Applications: The power supply is suitable for a wide range of industrial and research applications, including welding, plasma cutting, electroplating, battery charging, and more.

7. Digital Control: 18V 1000A DC power supplie features digital control, allowing for precise adjustment of voltage and current levels and providing real-time monitoring of the power supply's performance.



APPLICATION

Motor & Controller Test

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components





Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered


FAQ

1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
