Electroplating Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE ISO9001 |
| Model Number | GKD15-5000CVC |

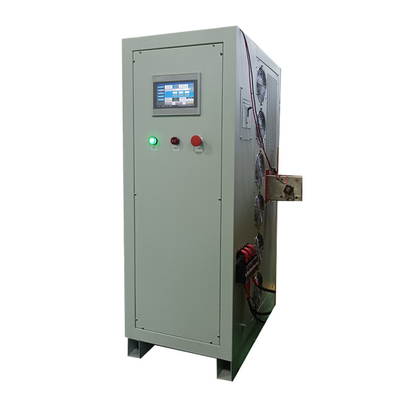

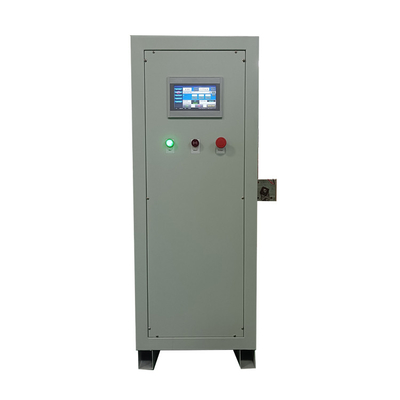

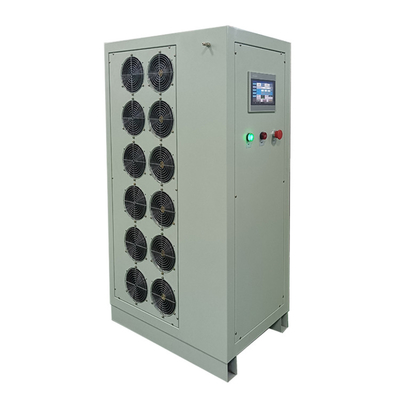

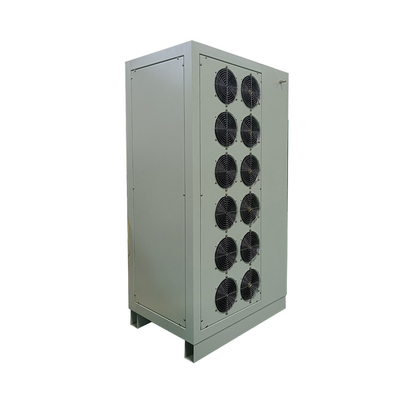

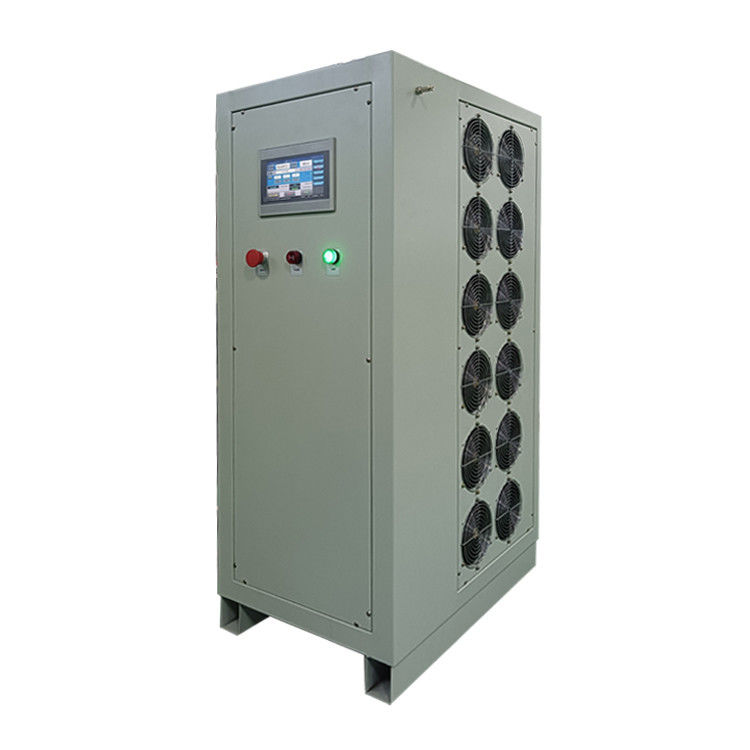

15V 5000A Electroplating Rectifier with PLC Touch Screen Programmable Rectifier
Introduction
In the world of electronics and electrical engineering, the need for precise and reliable power supply solutions is paramount. One such solution that stands out is the 15V 5000A programmable DC power supply. Designed to meet the demanding requirements of modern industries, this power supply offers exceptional control, flexibility, and efficiency for a wide range of applications.
The 15V 5000A programmable DC power supply is a cutting-edge device that provides a stable and adjustable power source, delivering a constant voltage of 15 volts and a maximum current output of 5000 amperes. Whether used in research laboratories, manufacturing facilities, or educational institutions, this power supply brings a wealth of benefits and versatility to any setting.
One of the key features of the 15V 5000A programmable DC power supply is its programmability. It comes equipped with advanced microprocessor-based controls, allowing users to precisely set and regulate the output voltage and current. This programmability enables engineers and technicians to tailor the power supply's characteristics to meet specific application requirements, ensuring optimal performance and efficiency.
Furthermore, the 15V 5000A power supply offers exceptional accuracy and stability. With high-resolution digital displays and built-in monitoring systems, users can monitor and fine-tune the output parameters in real-time. This level of control enables precise and reliable testing, prototyping, and system integration, making it an indispensable tool for professionals working in diverse fields such as electronics, telecommunications, automotive, and aerospace.
In addition to its exceptional performance, the 15V 5000A programmable DC power supply is designed with safety in mind. It incorporates various protective mechanisms, including overvoltage, overcurrent, and overtemperature protection, ensuring the safety of both the equipment and the user. These safety features minimize the risk of damage to sensitive components and prevent hazardous situations, making the power supply reliable and trustworthy for long-term usage.
Moreover, the 15V 5000A power supply boasts a compact and robust design. Its sleek form factor and durable construction allow for easy integration into existing systems or benchtop use. Additionally, the power supply's high-efficiency design reduces energy waste and heat generation, contributing to a greener and more sustainable operating environment.
Technical Data Sheet
| Mode | GKD15-5000CVC |
| AC Input | AC 380V±15% 50HZ±1Hz |
| Interface | RS232, RS485 |
| Input frequency | 50khz/60khz |
| Output current | 5000A |
| Output voltage | 15V |
| Voltage Rise | Adjustable voltage rise time |
| Voltage Overshoot | No overshoot, no voltage peak |
| Application1 | Air compressor test |
| Application2 | Motor & Controller Test |
| Application3 | Battery and Capacitance Charging Equipment |
| Ripple/ Noise | ≤0.1%FS |
| Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE:
1. Input voltage: AC 380V±15%, 50HZ±1Hz
2. Output voltage: 15V
3. Output power: 75KW
4. Operating temperature: -20℃~+45℃
5. Response time: ≤10ms
7. Equipped with input and output EMC filters, ripple ≤1%
8. PLC+HMI control, with RS485 communication.
APPLICATION
Electroplating
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
