Electroplating Power Supply
>
|
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE ISO9001 |
| Model Number | GKD1000-1000CVC |

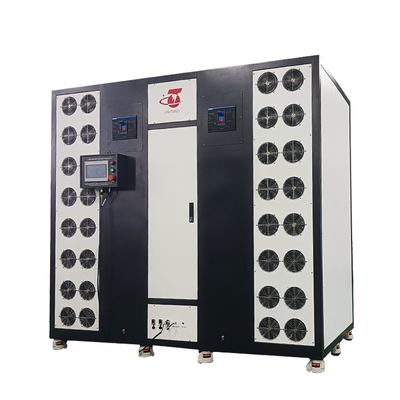

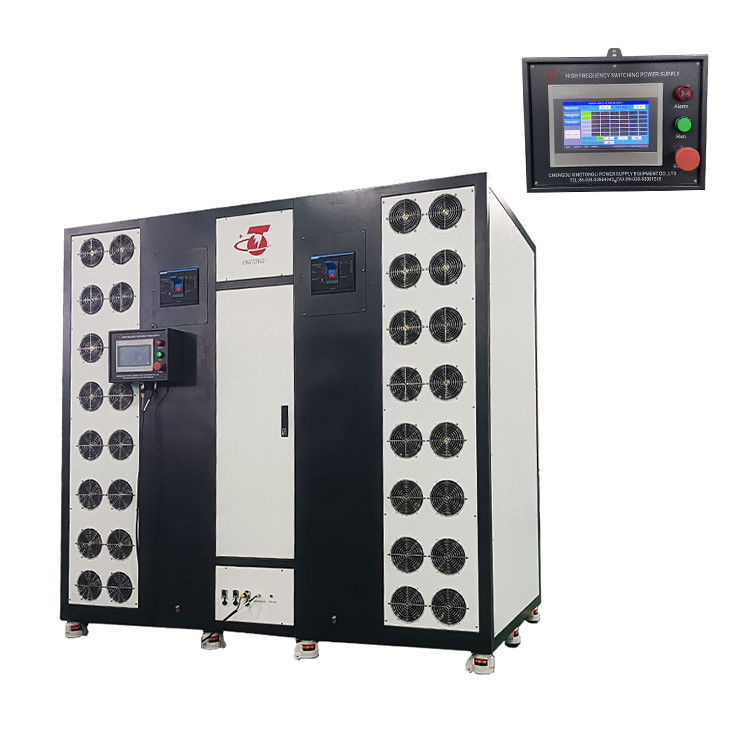

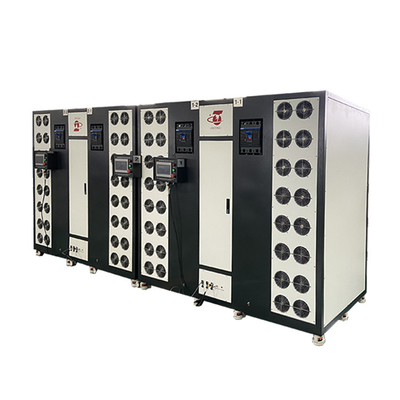

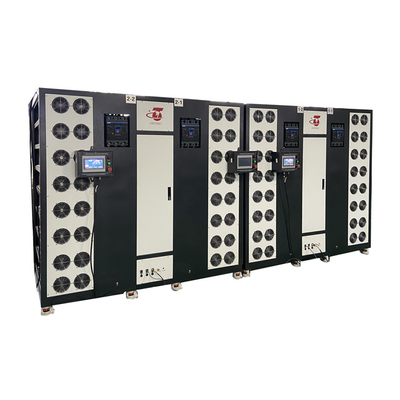

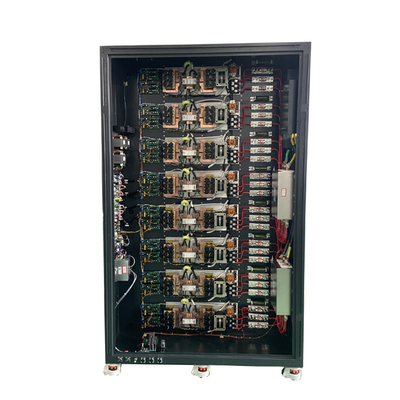

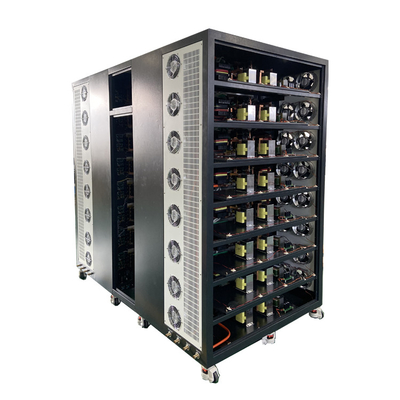

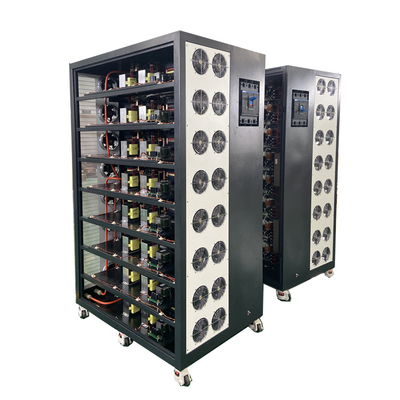

1000KW 480V Input 3 Phase High Power Hydrogen Production Rectifier with PLC HMI RS485 Rectifier
Introduction
Hydrogen, known for its versatility and potential as a clean energy source, has gained significant attention in recent years as a promising solution to combat climate change and reduce reliance on fossil fuels. As the demand for hydrogen-based applications continues to grow, the need for efficient and powerful power supplies becomes increasingly crucial. In response to this demand, the 1000kW DC power supply for hydrogen emerges as a groundbreaking solution, offering a high-capacity and reliable energy source for various hydrogen-related processes.
Technical Data Sheet
| Mode | GKD1000-1000CVC |
| AC Input | AC480V 3Phase |
| Interface | RS232, RS485 HMI PLC |
| Input frequency | 50khz/60khz |
| Output current | 1000A |
| Output voltage | 1000V |
| Voltage Rise | Adjustable voltage rise time |
| Voltage Overshoot | No overshoot, no voltage peak |
| Application1 | Air compressor test |
| Application2 | Motor & Controller Test |
| Application3 | Battery and Capacitance Charging Equipment |
| Ripple | 2% |
| Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE:
1. Input voltage: AC 480V 3 Phase
2. Output voltage: 1000V
3. Output power: 1000KW
4. Operating temperature: -20℃~+45℃
5. Response time: ≤10ms
7. Equipped with input and output EMC filters, ripple ≤2%

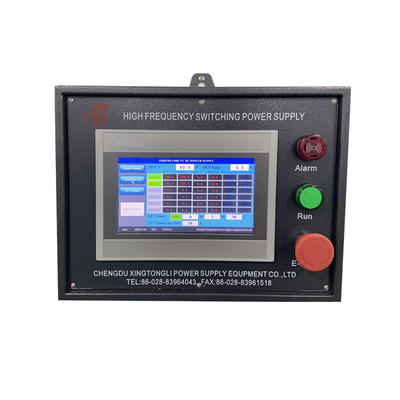

8. PLC+HMI control, with RS485 communication
APPLICATION
Electroplating
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
Our service
FAQ
1. Q: Are u factory or tranding company?
A: We are factory can offer more cheaper price but the same good quality.
2. Q: Where are ur company?
A: Our company is located in Chengdu City which is one of the fastest growing city in China.
3. Q: If I want to visit your factory, how can I go to there?
A: You just need to tell us when do come to our company, we will pick u up at the airport.
4. Q: How can I do a payment?
A: You can choose T/T, L/C, D/A, D/P and other payments .
5. Q: How can I get my goods?
A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.
6. Q: If problems of my rectifiers occured, what should I do?
A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
