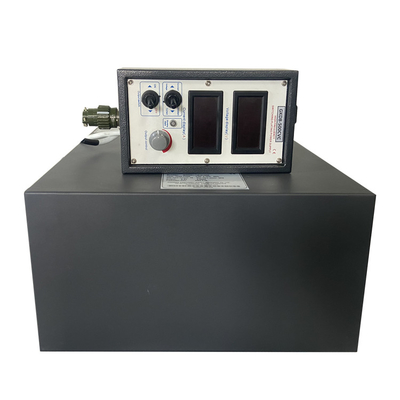

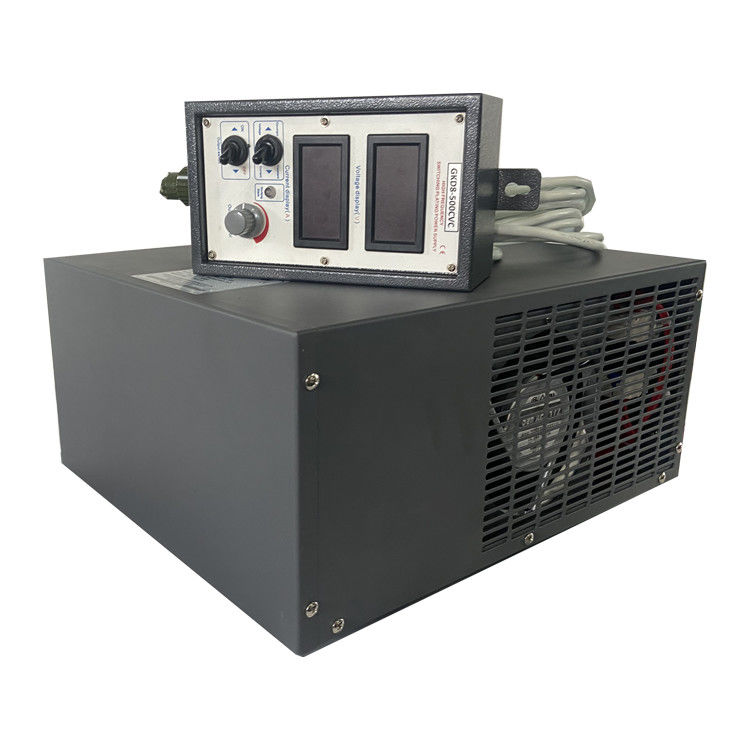

3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
  • 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
  • 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
  • 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
  • 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
  • 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
  • 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier

3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier

Place of Origin China
Brand Name Xingtongli
Certification CE ISO9001
Model Number GKD8-500CVC
Product Details
Product Name:
8V 500A 4KW AC 415V Input 3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier
Input Voltage:
AC 415V±10% 3 Phase
Output Voltage:
0-8V
Output Current:
0-500A
Output Power:
4kw
Certification:
CE, ISO9001
Protections:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
Warranty:
1 Year
Application:
Laboratory Test Aging Electroplating Battery Charging
MOQ:
1pcs
Cooling Way:
Fan Cooling
High Light:

Digital Display Electroplating Rectifier

,

Digital Display Plating Rectifier

,

OCP 3 Phase Electroplating Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1
Price
580-800$/unit
Packaging Details
strong plywood standard exporting package package size: 65*48.5*30cm gross weight: 38kg
Delivery Time
5-30 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500
Product Description

8V 500A 4KW AC 415V Input 3 Phase Electroplating Rectifier with Fan Cooling Digital Display Plating Rectifier

Introduction

The 8V 500A adjustable DC regulated power supply is designed to deliver precise and controlled direct current (DC) output for various applications. With an input voltage of 8 volts and a maximum output current of 500 amperes, this power supply provides a robust power source capable of delivering up to 4 kilowatts (4,000 watts) of electrical power.



One of the key features of this power supply is its adjustable output voltage and current settings. Users have the flexibility to finely tune and set the desired output values to match the specific requirements of their application. This adjustability allows for precise control over the power supply, ensuring optimal performance and compatibility with a wide range of electronic devices, circuits, and systems.



Equipped with a digital display, the power supply provides real-time feedback on the output voltage and current levels, enabling users to monitor the power supply's performance. Additionally, control knobs, buttons, or a keypad interface are included, allowing easy adjustment and fine-tuning of the output parameters.



To ensure stability and reliability, the 8V 500A adjustable DC regulated power supply employs sophisticated regulation mechanisms. It effectively minimizes voltage and current fluctuations, providing a consistent and reliable power source to connected devices or circuits.



The power supply also incorporates various protection features, including overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and short-circuit protection (SCP). These safeguards help prevent potential damage to the power supply and connected devices in case of abnormal operating conditions or unforeseen events.



Designed with efficiency in mind, the power supply minimizes energy losses during the power conversion process, contributing to reduced energy consumption and optimized performance. It features the fan cooling system to dissipate heat generated during operation, ensuring reliable and prolonged use.



The 8V 500A adjustable DC regulated power supply finds applications in a wide range of fields, including electronics testing, circuit prototyping, research and development, industrial processes, and educational environments. Its versatile nature and adjustable output capabilities make it an indispensable tool for powering and testing electronic components, circuits, and systems with precision and control.

3 Phase Electroplating Rectifier With Fan Cooling Digital Display Plating Rectifier 0

Technical Data Sheet

Mode GKD8-500CVC
AC Input AC input 415V three phase
Input frequency 50khz/60khz
Output current 500A
Output voltage 8V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Air compressor test
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤1%
Protections OCP, OVP, OVL, OTP, UVP and current limit protections



FEATURE

1. Input: 415V AC,Three Phase

2. Cooling Method: Forced air cooling

3. Independent Adjustment of Current and Voltage

4. Control System: remote control + digital display

5. Ripple: ≤1%

6. Remote Control



APPLICATION

Electroplating

Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components





Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted

After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered
