| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE ISO9001 |
| Model Number | GKD30-200CVC |
Introduction

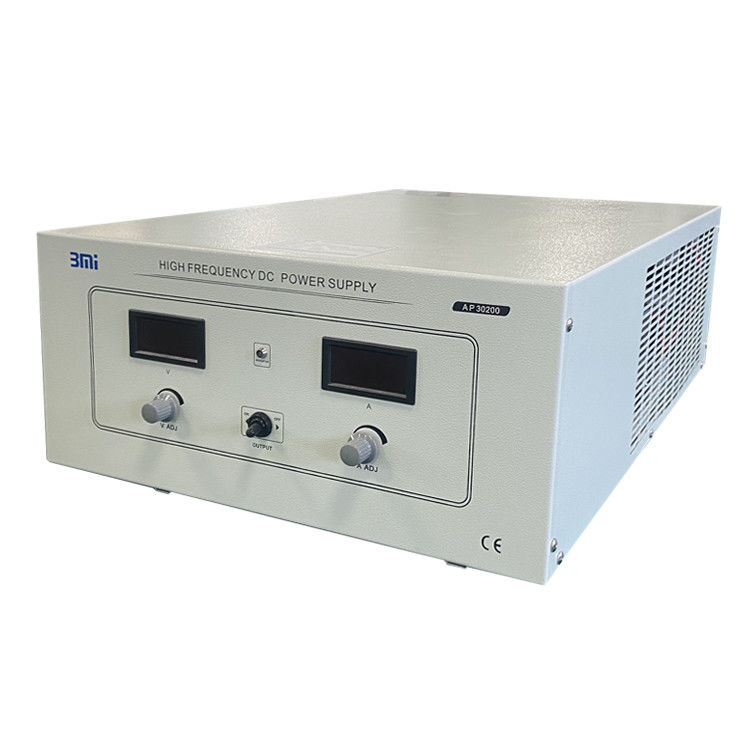

The 30V 200A adjustable DC power supply is With a 0~10V analog signal interface, it is used for providing power to the motor with a starting current of 500A (approximately 1 second). The current and voltage can be individually adjusted.
Equipped with a digital display, the power supply provides real-time feedback on the output voltage and current levels, enabling users to monitor the power supply's performance. Additionally, control knobs, buttons, or a keypad interface are included, allowing easy adjustment and fine-tuning of the output parameters.
The power supply incorporates various protection features, including overvoltage protection (OVP), overcurrent protection (OCP), overtemperature protection (OTP), and short-circuit protection (SCP). These safeguards help prevent potential damage to the power supply and connected devices in case of abnormal operating conditions or unforeseen events.
The 30V 200A adjustable DC power supply finds applications in a wide range of fields, including electronics testing, circuit prototyping, research and development, industrial processes, and educational environments. Its versatile nature and adjustable output capabilities make it an indispensable tool for powering and testing electronic components, circuits, and systems with precision and control.
Technical Data Sheet
| Mode | GKD30-200CVC |
| AC Input | AC input 380V three phase |
| Input frequency | 50khz/60khz |
| Output current | 200A |
| Output voltage | 30V |
| Voltage Rise | Adjustable voltage rise time |
| Voltage Overshoot | No overshoot, no voltage peak |
| Application1 | Air compressor test |
| Application2 | Motor & Controller Test |
| Application3 | Battery and Capacitance Charging Equipment |
| Ripple/ Noise | ≤1% |
| Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE
1. Input: 380V AC,Three Phase
2. Cooling Method: Forced air cooling
3. Independent Adjustment of Current and Voltage
4. Control System: local control + digital display
5. Ripple: ≤1%
6. 0~10V analog signal interface
7. Current and voltage can be individually adjusted
APPLICATION
Electroplating
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
