Electroplating Power Supply
>
|
| Place of Origin | China |
| Brand Name | Xingtongli |
| Certification | CE ISO9001 |
| Model Number | GKD50-5000CVC |

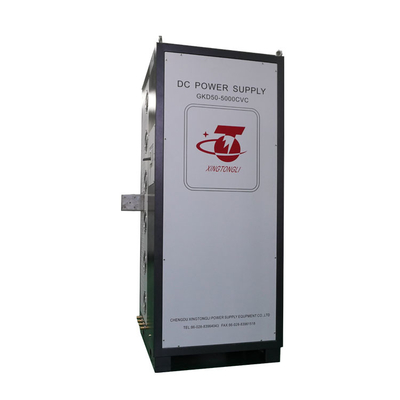

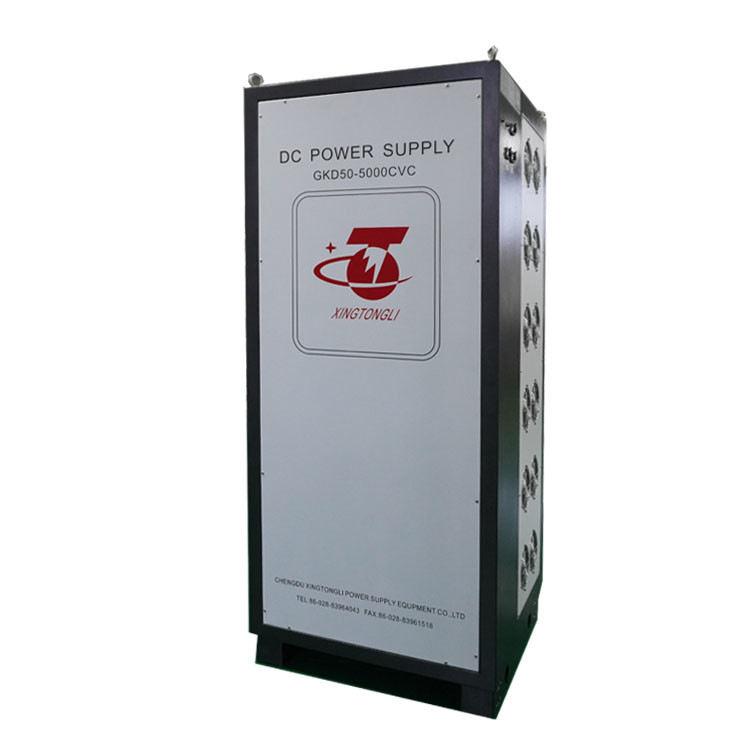

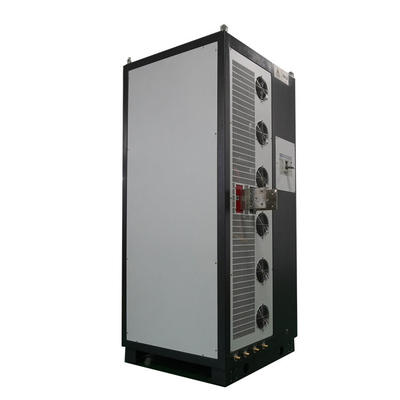

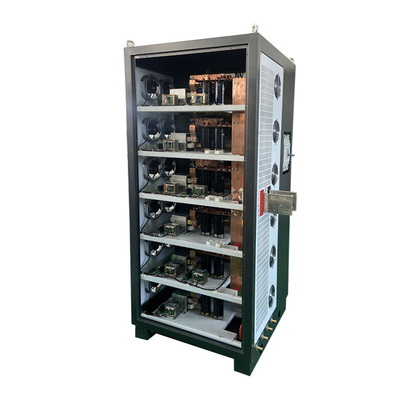

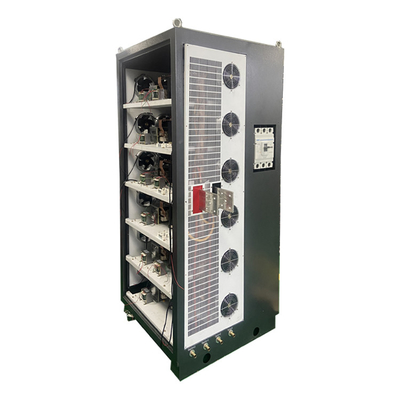

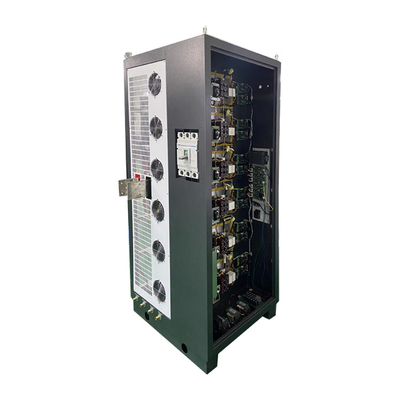

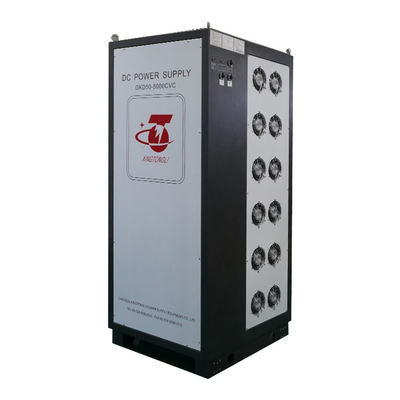

50V 5000A 250KW AC 480V 3 Phase High Power Electroplating Rectifier with PLC RS485 DC Rectifier
The 50V 5000A hydrogen production rectifier with RS485 PLC control is a cutting-edge power conversion solution specifically designed for hydrogen production processes. This rectifier combines high power capacity, precise control, and advanced communication capabilities to meet the demanding requirements of hydrogen generation applications.
With a voltage output of 50 volts and a current output of 5000 amperes, this rectifier delivers a significant amount of power to facilitate efficient electrolysis for hydrogen production. It converts the incoming AC power into a stable and controlled DC output, ensuring optimal conditions for the electrolytic process.
One standout feature of this rectifier is its integration of the RS485 communication protocol and PLC (Programmable Logic Controller) control. The RS485 interface enables reliable and high-speed data transmission between the rectifier and the supervisory control system, facilitating real-time monitoring and control of the rectifier's operation. The PLC control further enhances the flexibility and programmability of the rectifier, allowing for customization and automation of the hydrogen production process.
The rectifier's design is specifically optimized for hydrogen production, with features to ensure efficiency, reliability, and safety. It may incorporate advanced control algorithms, feedback mechanisms, and protective measures to regulate the current and voltage output accurately, minimize ripple, and protect against overvoltage, overcurrent, and other potential hazards.
Technical Data Sheet
| Mode | GKD50-5000CVC |
| AC Input | AC input 480V three phase |
| Input frequency | 60khz |
| Output current | 5000A |
| Output voltage | 50V |
| Voltage Rise | Adjustable voltage rise time |
| Voltage Overshoot | No overshoot, no voltage peak |
| Application1 | Air compressor test |
| Application2 | Motor & Controller Test |
| Application3 | Battery and Capacitance Charging Equipment |
| Ripple/ Noise | ≤1% |
| Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE
1. Input: 480V AC,Three Phase 60HZ
2. Cooling Method: water cooling
3. Independent Adjustment of Current and Voltage
4. Control System: remote control with 6 meters control wires
5. With PLC touch screen display and RS485
6.. Current and voltage can be individually adjusted
APPLICATION
hydrogen production
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
