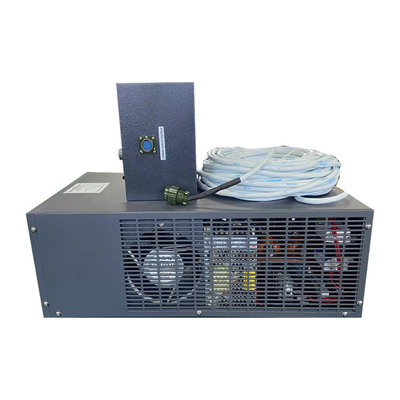

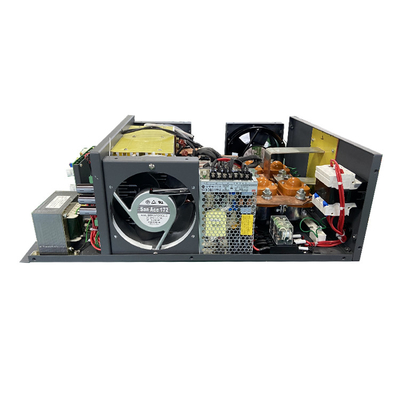

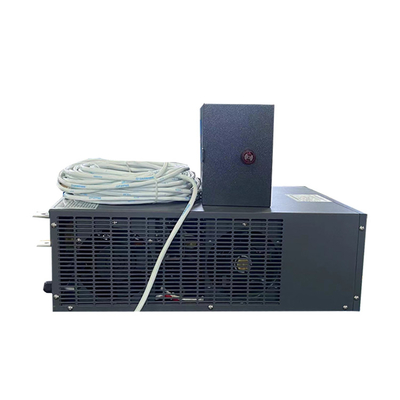

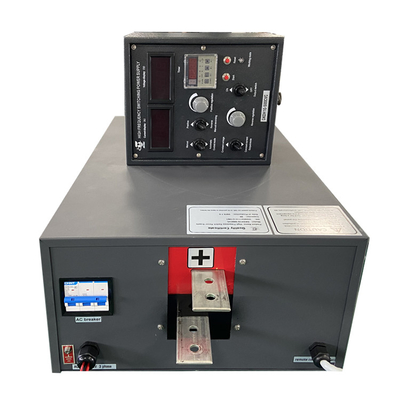

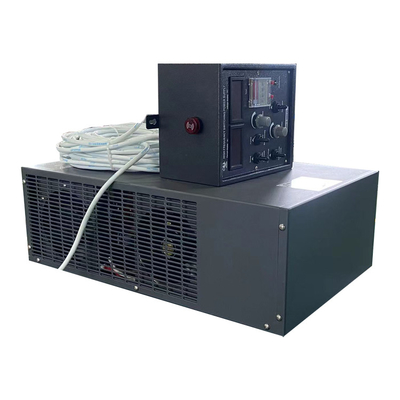

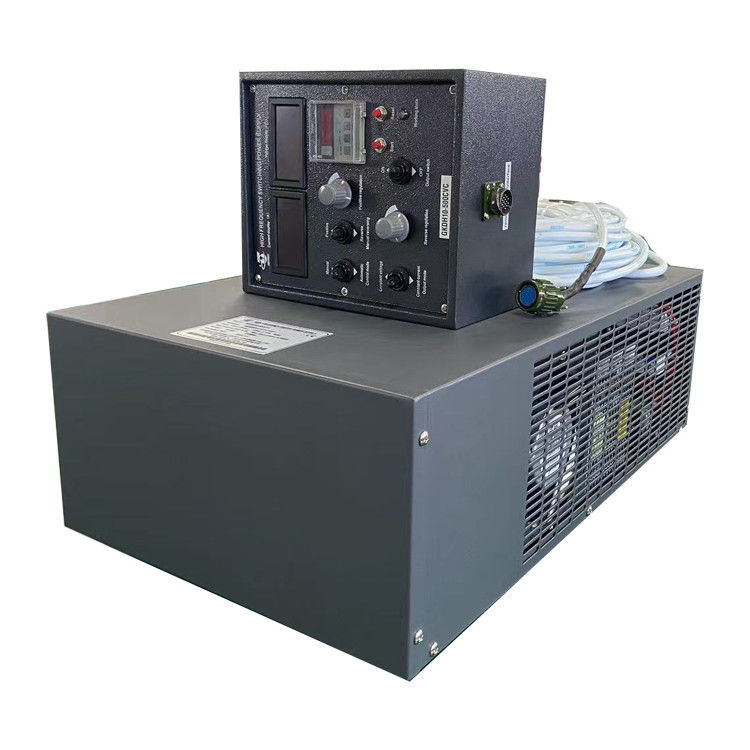

High Frequency 10V 500A 5KW Polarity Reverse DC Power Supply Adjustable Electroplating Rectifier
Introduction
One of the notable features of the 10V 500A 5KW Polarity Reverse DC Power Supply is its polarity reversal capability. This feature allows users to change the direction of the current flow, making it suitable for applications that require alternating polarity, such as testing electronic components, electroplating, or specialized experiments. The ability to reverse polarity adds a new dimension of flexibility to the power supply, expanding its range of potential applications.One of the notable features of the 10V 500A 5KW Polarity Reverse DC Power Supply is its polarity reversal capability. This feature allows users to change the direction of the current flow, making it suitable for applications that require alternating polarity, such as testing electronic components, electroplating, or specialized experiments. The ability to reverse polarity adds a new dimension of flexibility to the power supply, expanding its range of potential applications.
Technical Data Sheet
| Mode | GKD10-500CVC |
| AC Input | AC input 415V 3 phase |
| Input frequency | 50khz/60khz |
| Output current | 500A |
| Output voltage | 10V |
| Voltage Rise | Adjustable voltage rise time |
| Voltage Overshoot | No overshoot, no voltage peak |
| Application1 | Air compressor test |
| Application2 | Motor & Controller Test |
| Application3 | Battery and Capacitance Charging Equipment |
| Ripple/ Noise | ≤3% |
| Protections | OCP, OVP, OVL, OTP, UVP and current limit protections |
FEATURE
1. Input: 415V AC, Single 3 Phase
2. Cooling Method: Forced air cooling
3. Independent Adjustment of Current and Voltage
4. Control System: Microcontroller + digital screen display
5. Ripple: ≤1%
6. Remote Control
7. Auto and manual polarity reverse
APPLICATION
Electroplatiing
Motor & Controller Test
Battery and Capacitance Charging Equipment
Laboratory, Factory Use, Testing &Aging of Electronic Components
