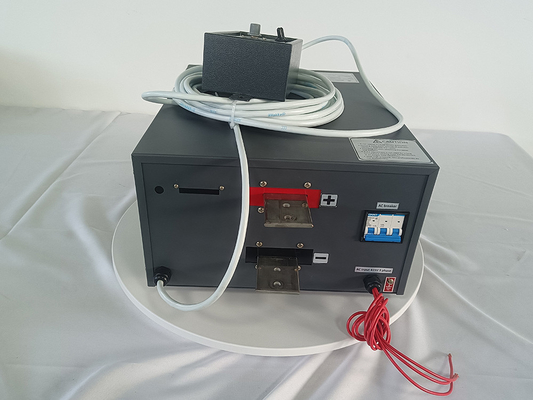

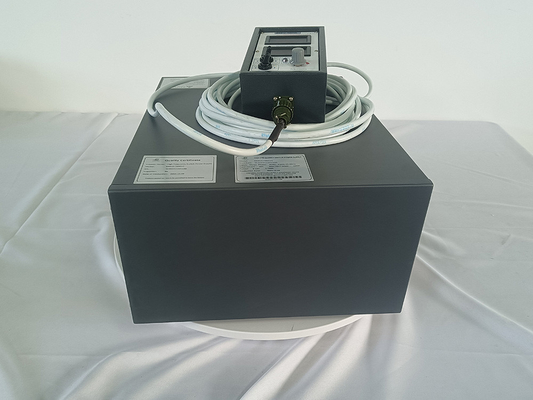

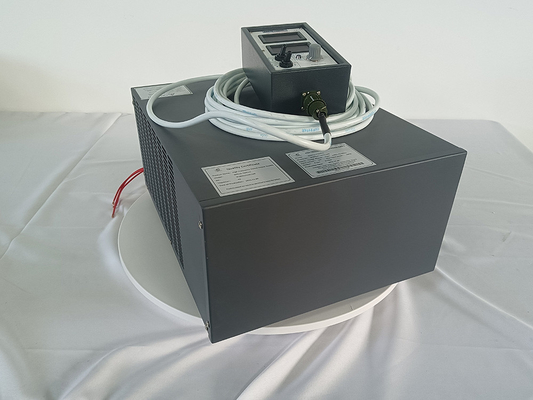

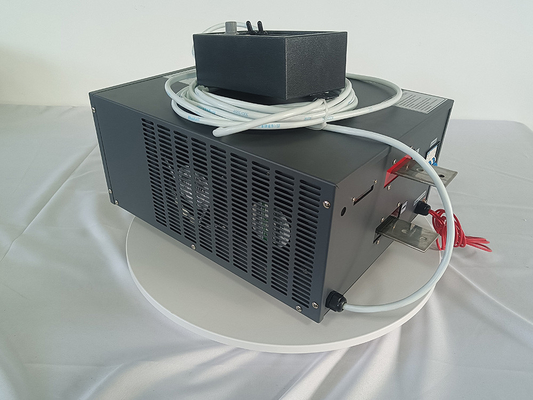

750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier
  • 750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier
  • 750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier
  • 750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier
  • 750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier
  • 750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier

750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier

Place of Origin China
Brand Name Xingtongli
Certification ISO CE RoHS
Model Number GKD12-7500CVC
Product Details
Product Name:
Single Phase General Rectifier Power Supply With Analog Control (4-20mA)
Input Voltage:
AC 380V±10% 3 Phase
Output Voltage:
DC 0~12v Adjustable
Output Current:
DC 0~750A Adjustable
Output Power:
Work Mode:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
1 Year
Cooling Way:
Forced Air Cooling
Chrome Plating, Copper Plating, Cadmium Plating, Tin Plating, Zinc Plating, Nickel Plating, Gold Plating, Silver Plating
High Light:

750A Timed Plating Power Supply


12V Timed Plating Power Supply


Metal Surface Plated Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
1000$ ~2500$
Packaging Details
Single wooden case packing size:720*560*300mm Weight: 58kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability
Product Description

Chinese Manufacturer Sells 750A 12V With Timed Plating Power Supply, Metal Surface Plated Rectifier

Product use

For hardware and plastic electroplating; PCB electroplating; Precious metal precision electroplating; Electrophoretic coating; Oxidation, electrolytic polishing, sewage electrolytic treatment; Metal refining, resistive heating, vacuum furnace heating and pipeline heating; Aging power supply and other DC customized power supply.


1.The power host has the advantages of small volume, light weight, elegant appearance, convenient installation, safe use, anti-corrosion and durability

2. The unique heat dissipation isolation structure not only ensures good heat dissipation of the power supply, but also isolates the heat dissipation air duct from the electronic accessories inside the power supply, playing an excellent heat dissipation and anti-corrosion effect

3. The power supply has the protection functions of overheating, overcurrent, short circuit, undervoltage and overvoltage.

4. High power factor, high efficiency, stable output frequency, high control accuracy, high voltage and current output stability, which can effectively improve product quality.

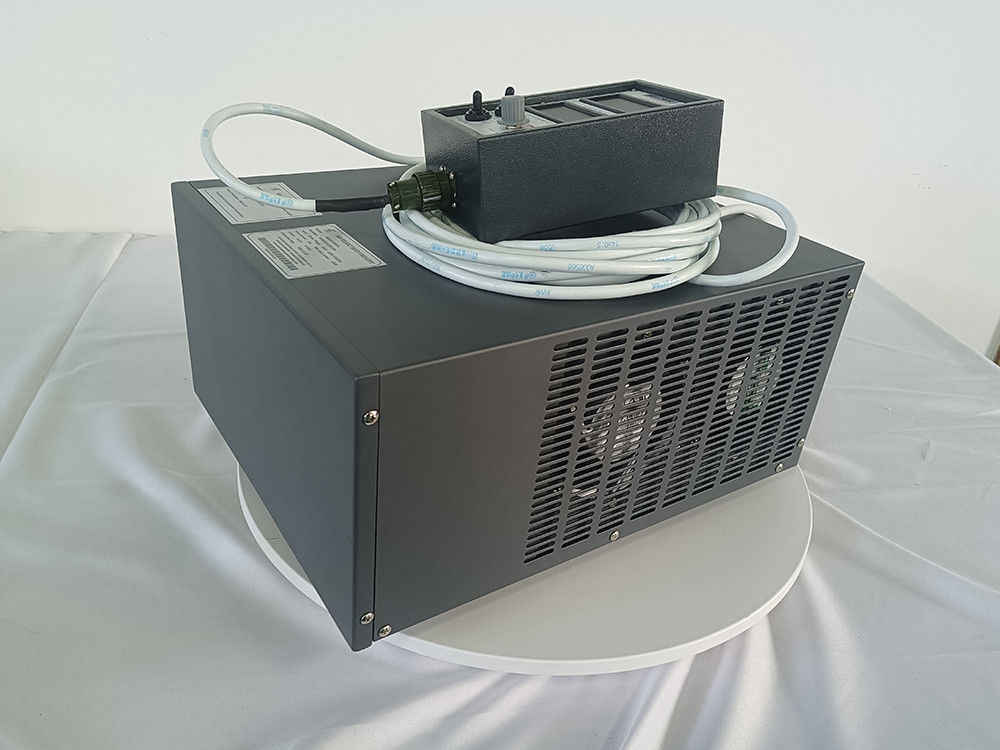

750A 12V Timed Plating Power Supply Metal Surface Plated Rectifier 0


Technical Data Sheet

Mode GKD12-750CVC
AC Input AC input 380V 3 phase
Input frequency 50khz/60khz
Output current 750A
Output voltage 12V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Air compressor test
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤1%
Protections OCP, OVP, OVL, OTP, UVP and current limit protections



1. Input: 380/415VAC,3 Phase

2. Cooling Method: Forced air cooling

3. Independent Adjustment of Current and Voltage

4. Control System: local control + digital display

5. Ripple: ≤1%

6.12V 700A plating rectifier

7. Current and voltage can be individually adjusted




Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components


Chinese manufacturer sells 200A 15V with timed plating power supply, metal surface plated rectifier



Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered


1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
