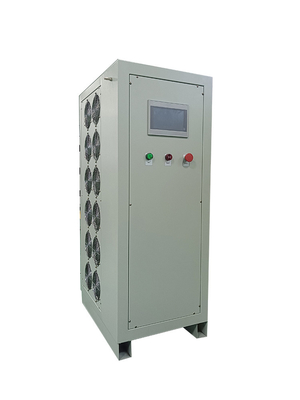

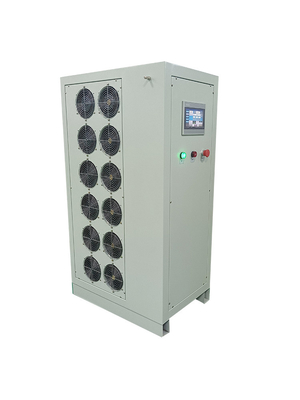

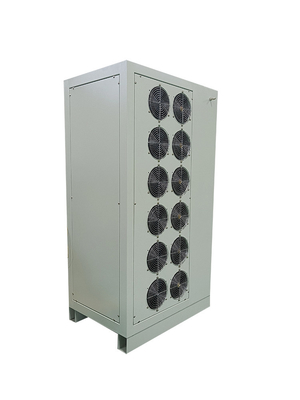

IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control
  • IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control
  • IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control
  • IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control
  • IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control

IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control

Place of Origin China
Brand Name Xingtongli
Certification ISO CE RoHS
Model Number GKD15-5000CVC
Product Details
Product Name:
IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control
Input Voltage:
AC 380V/415±10% 3 Phase
Output Voltage:
DC 0~15v Adjustable
Output Current:
DC 0~5000A Adjustable
Output Power:
Work Mode:
OCP, OVP, OVL, OTP, UVP And Current Limit Protections
High Light:

IGBT Rectifier 15V 5000A


Touch Screen IGBT Rectifier


RS485 Control IGBT Rectifier

Payment & Shipping Terms
Minimum Order Quantity
1 unit
7300$ ~8500$
Packaging Details
Single wooden case packing size:75*147*84cm Weight: 190kg
Delivery Time
10~15 work days
Payment Terms
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability
Product Description

IGBT rectifier 15V 5000A with touch screen and RS485 control


With an output voltage of 15V, this power supply provides a stable and adjustable DC voltage suitable for a wide range of
electronic devices and systems. The independent adjustment of current and voltage allows for precise customization and adaptation to specific load requirements, ensuring optimal performance and efficiency.
The integration of a microcontroller enhances the user experience by providing intuitive and convenient operation. The digital screen interface allows for easy configuration and monitoring of key parameters, making it simple to set desired voltage and current levels, as well as monitor real-time data and diagnostic information.
To ensure efficient cooling and reliable operation, this power supply incorporates fan cooling technology. The fan helps dissipate heat generated during operation, preventing overheating and ensuring long-term reliability and stability.

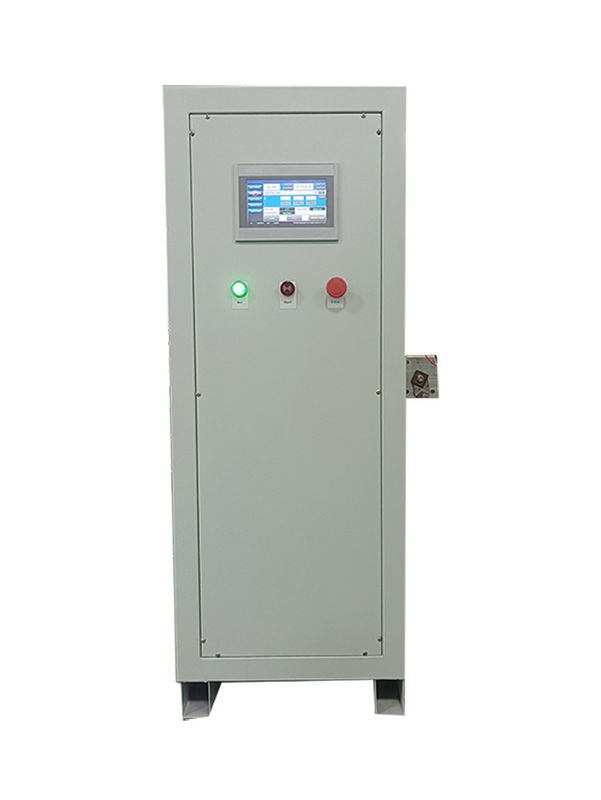

IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control 0IGBT Rectifier 15V 5000A With Touch Screen And RS485 Control 1


Technical Data Sheet

Mode GKD15-5000CVC
AC Input AC input 380/415V 3 phase
Input frequency 50khz/60khz
Output current 5000A
Output voltage 15V
Voltage Rise Adjustable voltage rise time
Voltage Overshoot No overshoot, no voltage peak
Application1 Air compressor test
Application2 Motor & Controller Test
Application3 Battery and Capacitance Charging Equipment
Ripple/ Noise ≤1%
Protections OCP, OVP, OVL, OTP, UVP and current limit protections



1. Input: 380/415V AC, 3 Phase

2. Cooling Method: Forced air cooling

3. Control System: Microcontroller + digital display Screen

4. Ripple: ≤1%

5. Remote Control




Motor & Controller Test

Battery and Capacitance Charging Equipment

Laboratory, Factory Use, Testing &Aging of Electronic Components



Our service

Pre sale service
1. To answer your questions within 24hours.
2. 3D design picture and wiring diagram can be offered.
3. Inner part pictures can be offered
4. OEM and ODM is accepted
After sale service
1. To resolve your problems within 24hours.
2. Replacement parts can be offered for free within 1 year warranty
3. The machine is damaged by quality and can be changed for free within 1 year
4. The client can check the rectifier before the factory by themselves or test video can be offered


1. Q: Are u factory or tranding company?

A: We are factory can offer more cheaper price but the same good quality.

2. Q: Where are ur company?

A: Our company is located in Chengdu City which is one of the fastest growing city in China.

3. Q: If I want to visit your factory, how can I go to there?

A: You just need to tell us when do come to our company, we will pick u up at the airport.

4. Q: How can I do a payment?

A: You can choose T/T, L/C, D/A, D/P and other payments .

5. Q: How can I get my goods?

A: Now we have shipping, Air, DHL, FeDex and UPS five transportanting ways. If u ordered big rectifiers and it's not urgent, shipping is the best way. If u ordered small or it's urgent, Air, DHL and FeDex are recommended. What's more, if u want to receive your goods at your home, plz choose DHL or FeDex or UPS. If there is no transporting way you want to choose, plz contact me without hesitation.

6. Q: If problems of my rectifiers occured, what should I do?

A: Firstly plz resolve the problems by yourself according to User's Manual. There are solutions in it if they're common troubles. Secondly, if User's Manual can't resolve your problems, plz contact me immediatly. Our engineers are on standby.
